Reading Lamp Assembly

LAMP ASSEMBLY - READING

REMOVAL







1. CAUTION: When removing lamp assembly, use care to avoid damaging the lamp assembly.

Position the reading lamp aside.

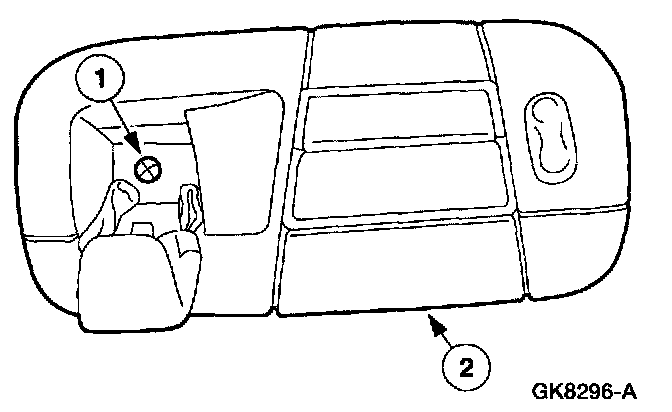

1 Remove the screw.
2 Position the reading lamp aside.







2. Remove the reading lamp.
- Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
