Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

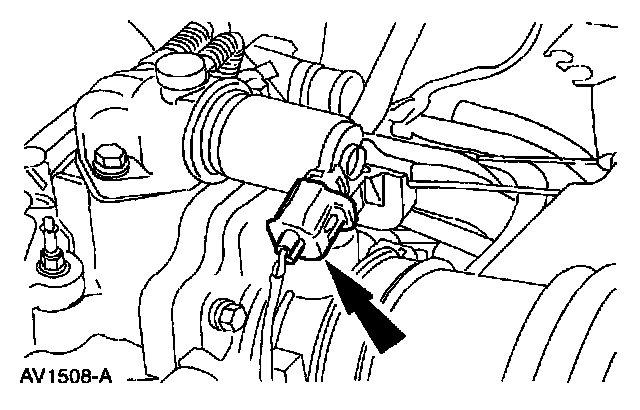

2. Disconnect the Idle Air Control (IAC) electrical connector.

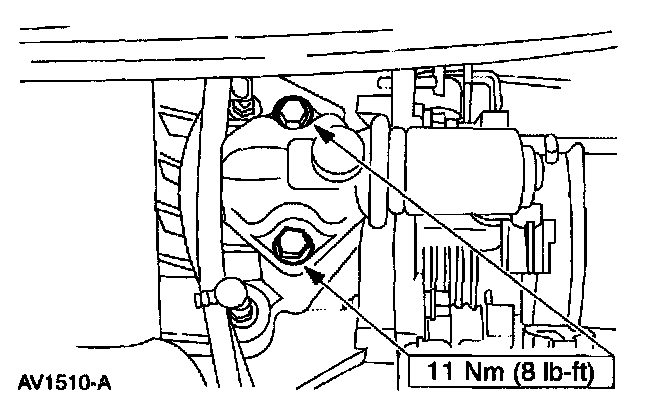

3. Remove the bolts and the IAC valve.
^ Discard the gasket.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Install a new idle air control (IAC) valve gasket.
