Test L

PINPOINT TEST L: NO INTERNATIONAL STANDARDS ORGANIZATION (ISO) 9141 MODULE/NETWORK COMMUNICATION

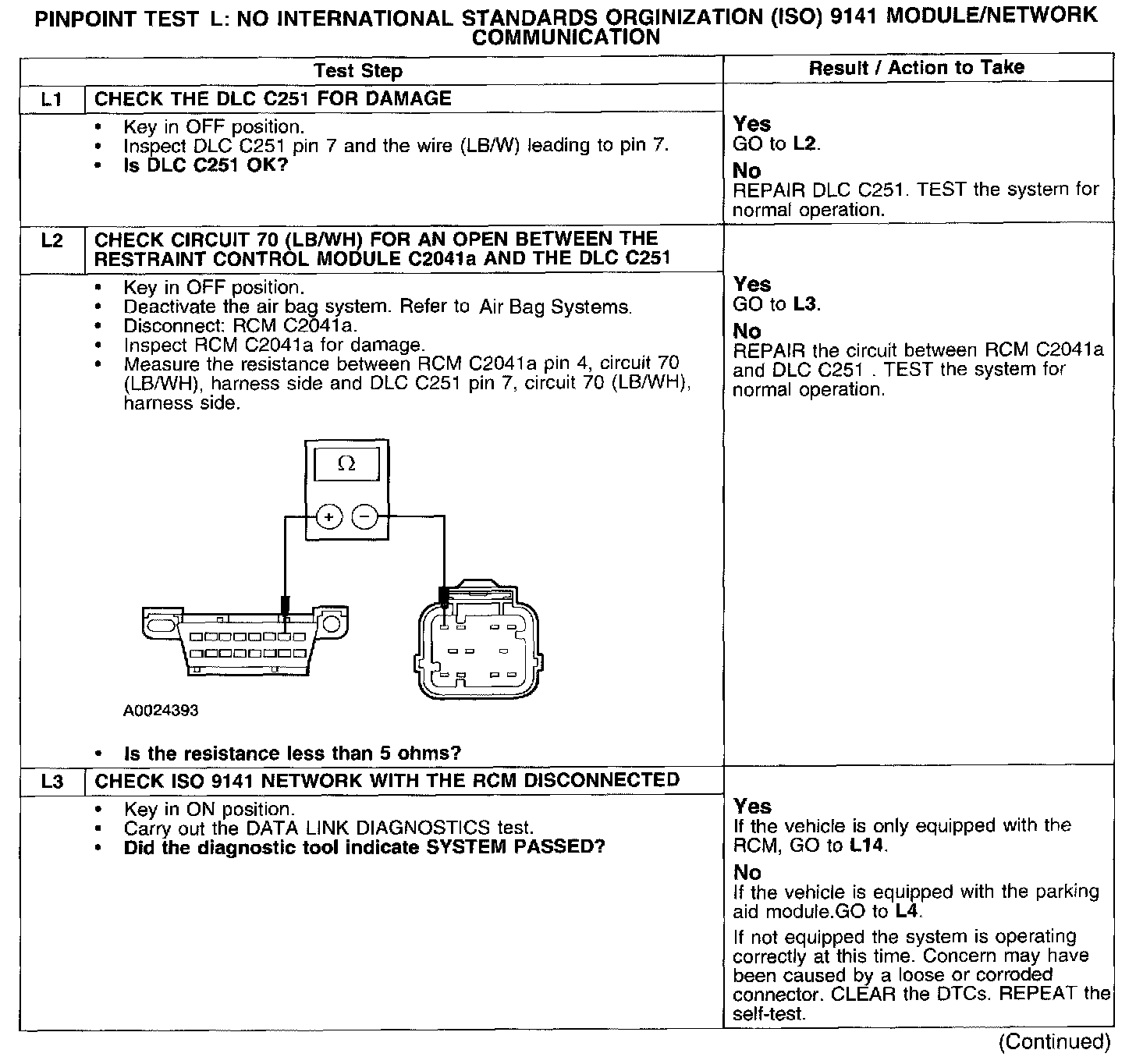

Test L1-L3:

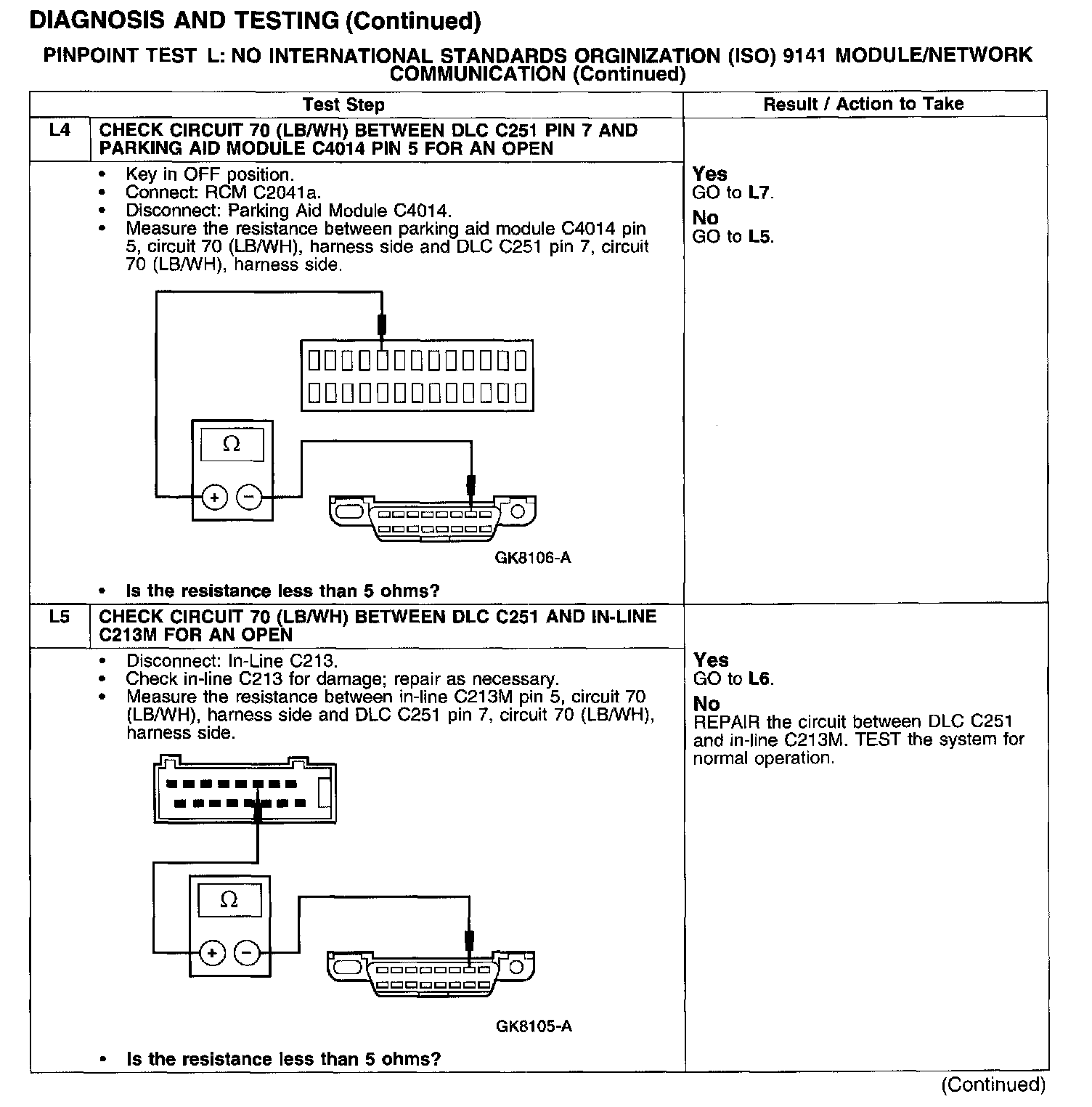

Test L4-L5:

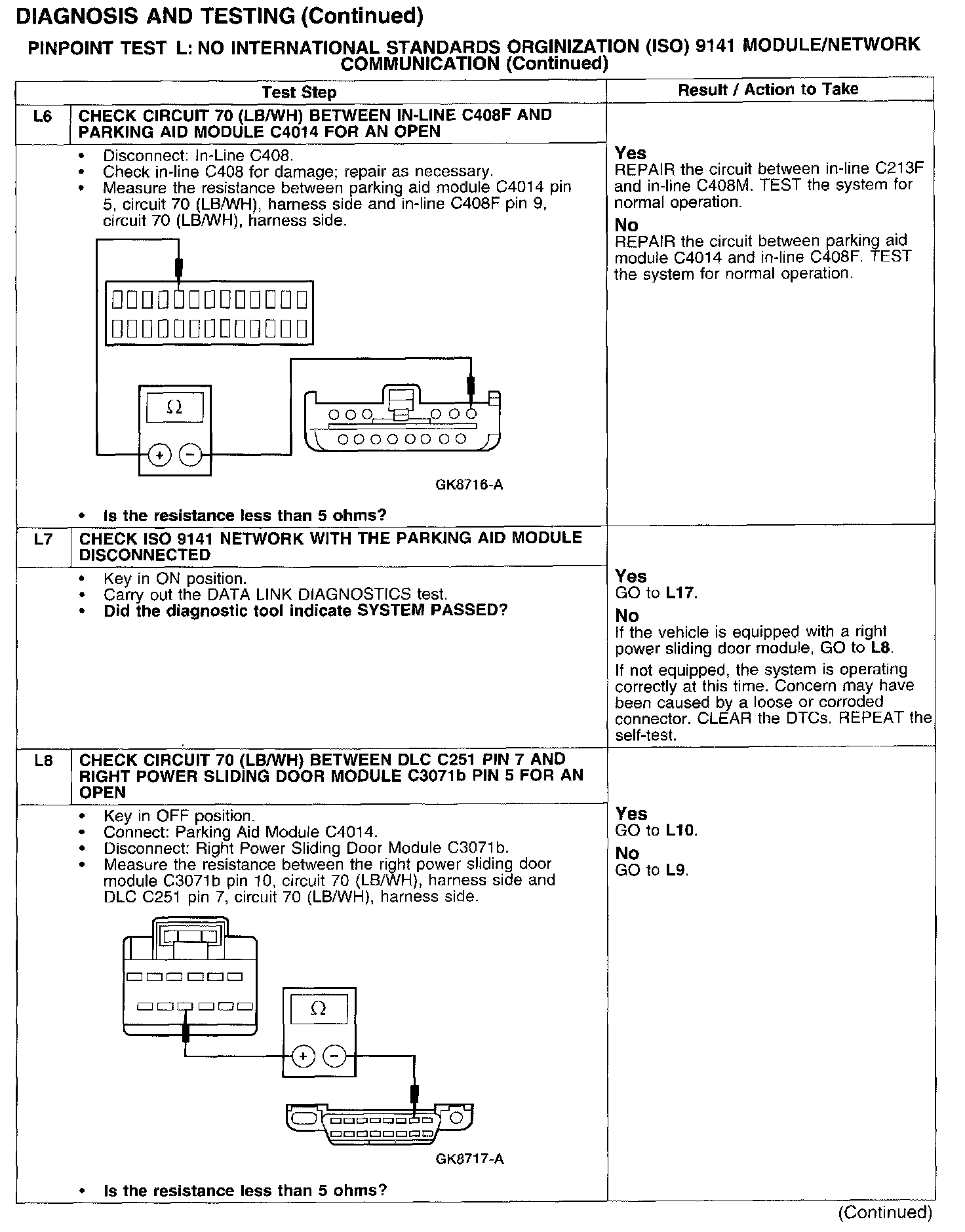

Test L6-L8:

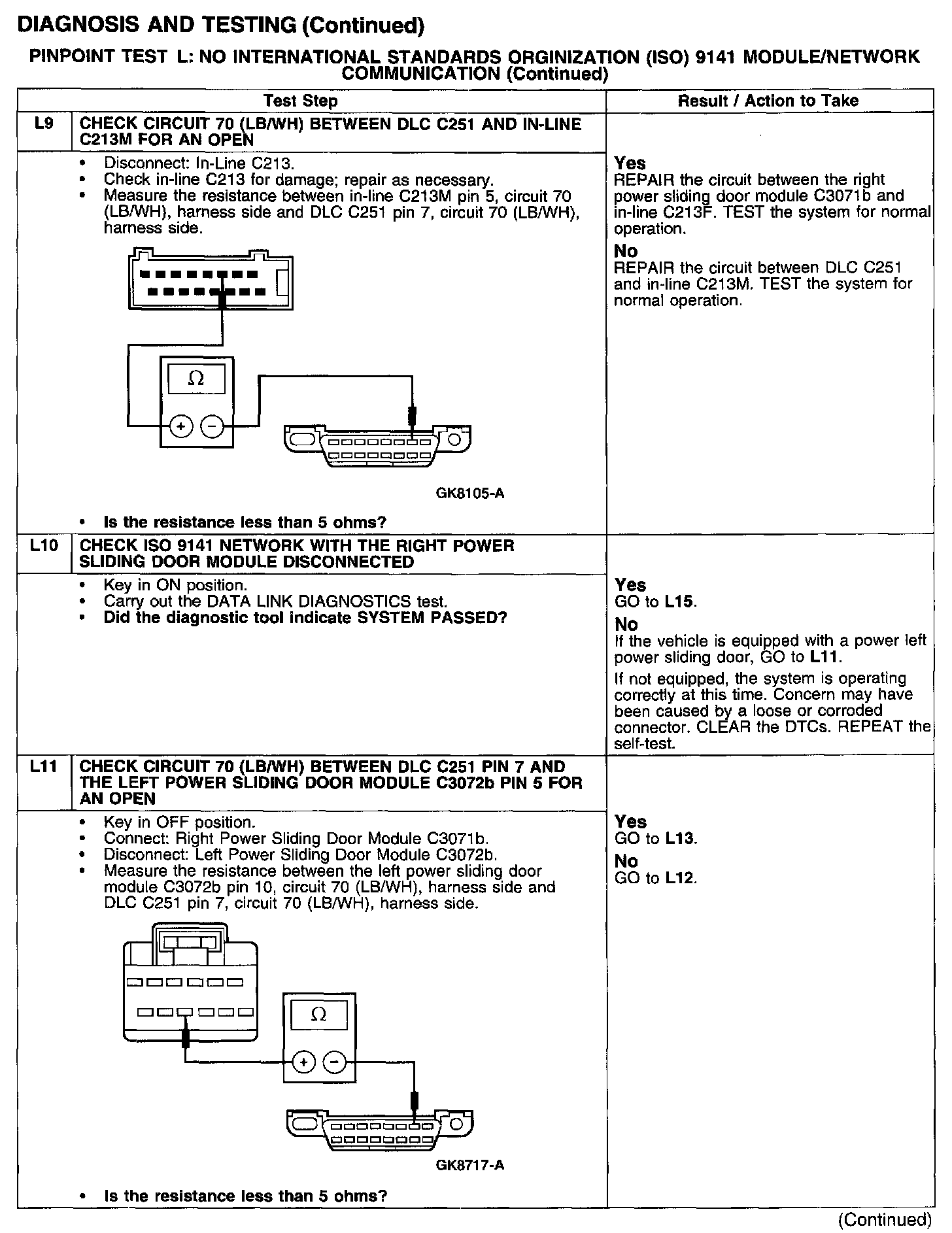

Test L9-L11:






Test L12-L15:

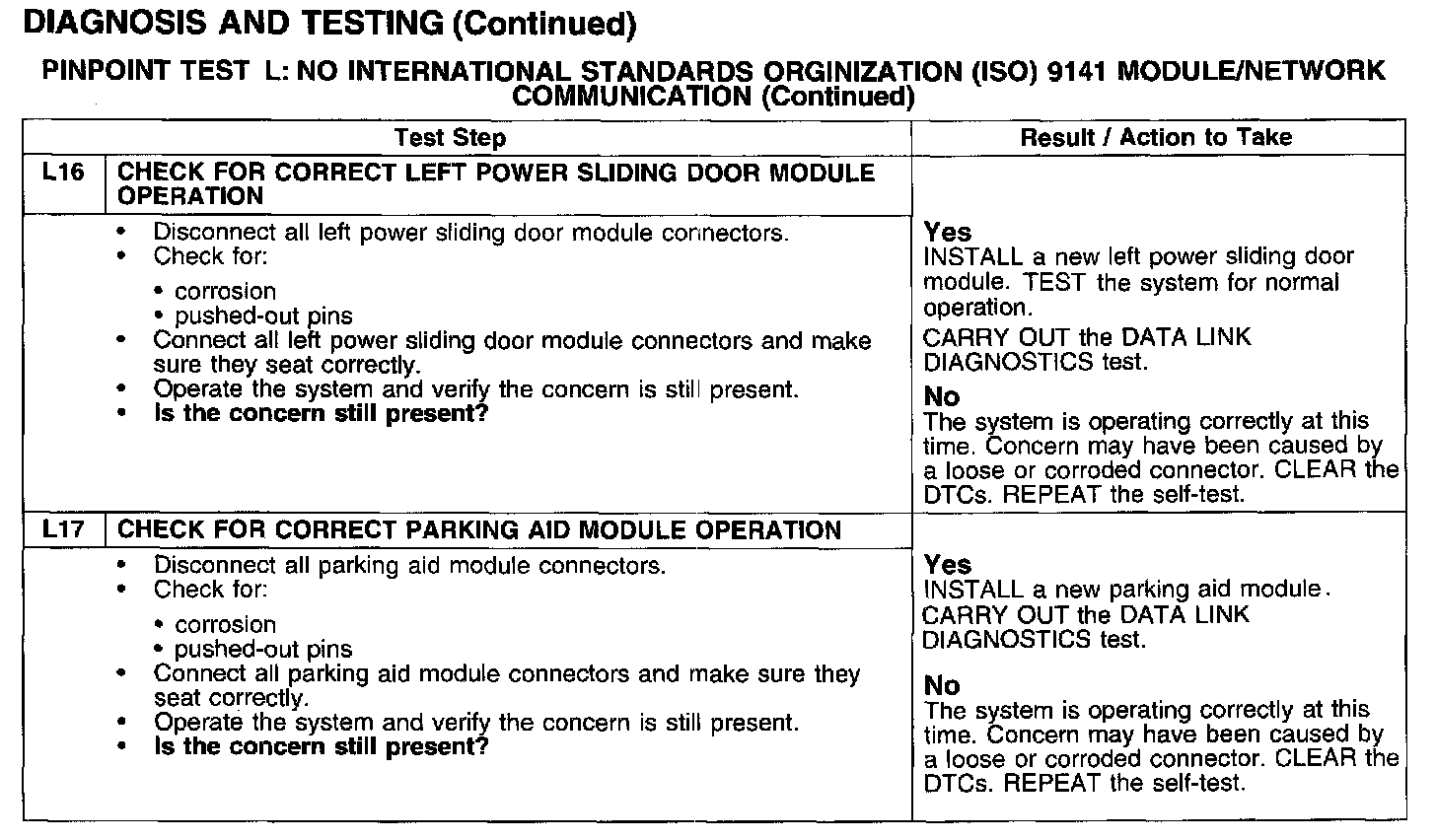

Test L16-L17:
