Home
>>
Ford
>>
2003
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
>>
PCM Relay Location
PCM Relay Location
PCM Power Relay
is located in battery junction box.

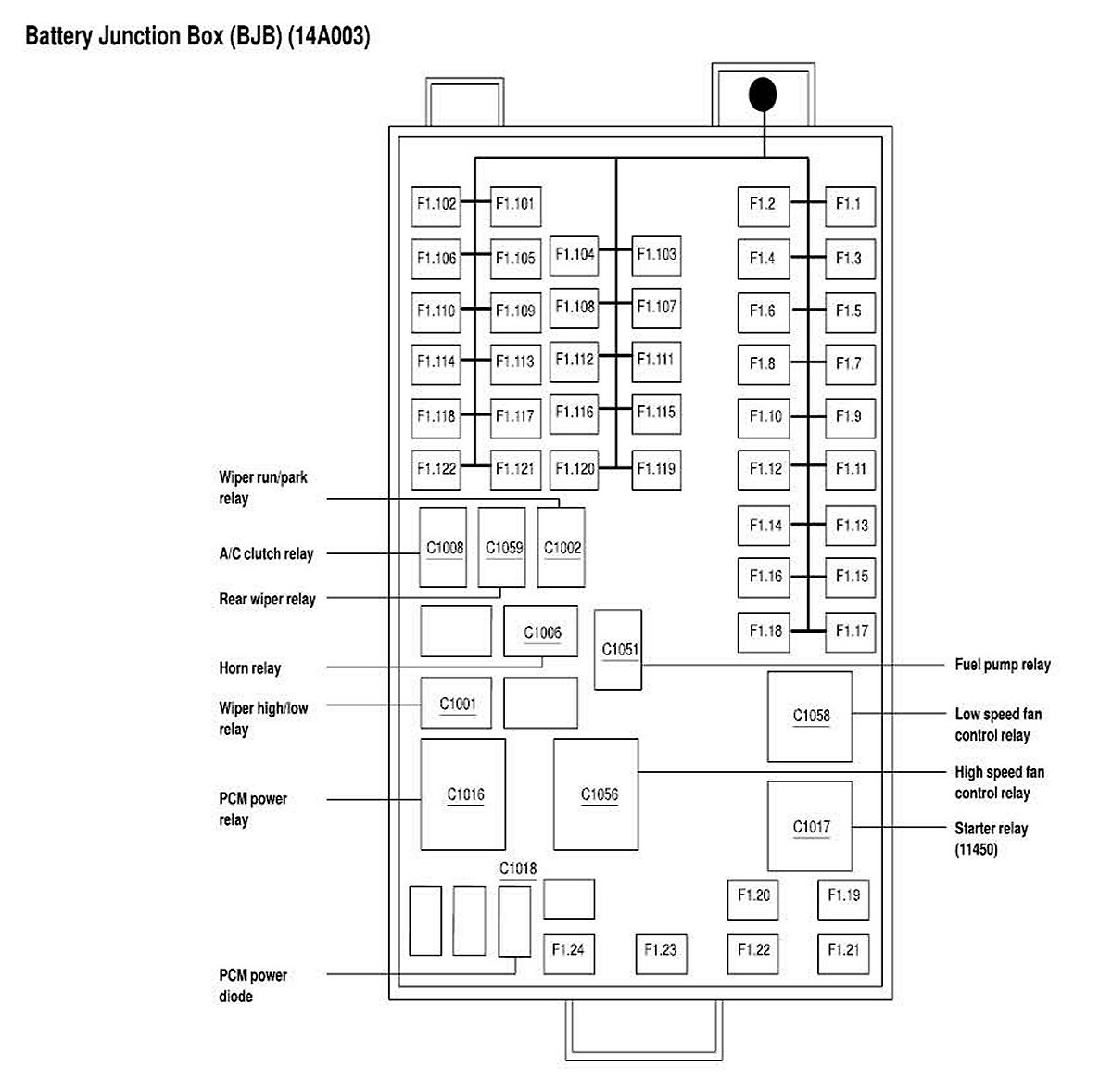

Battery Junction Box (1 Of 2):

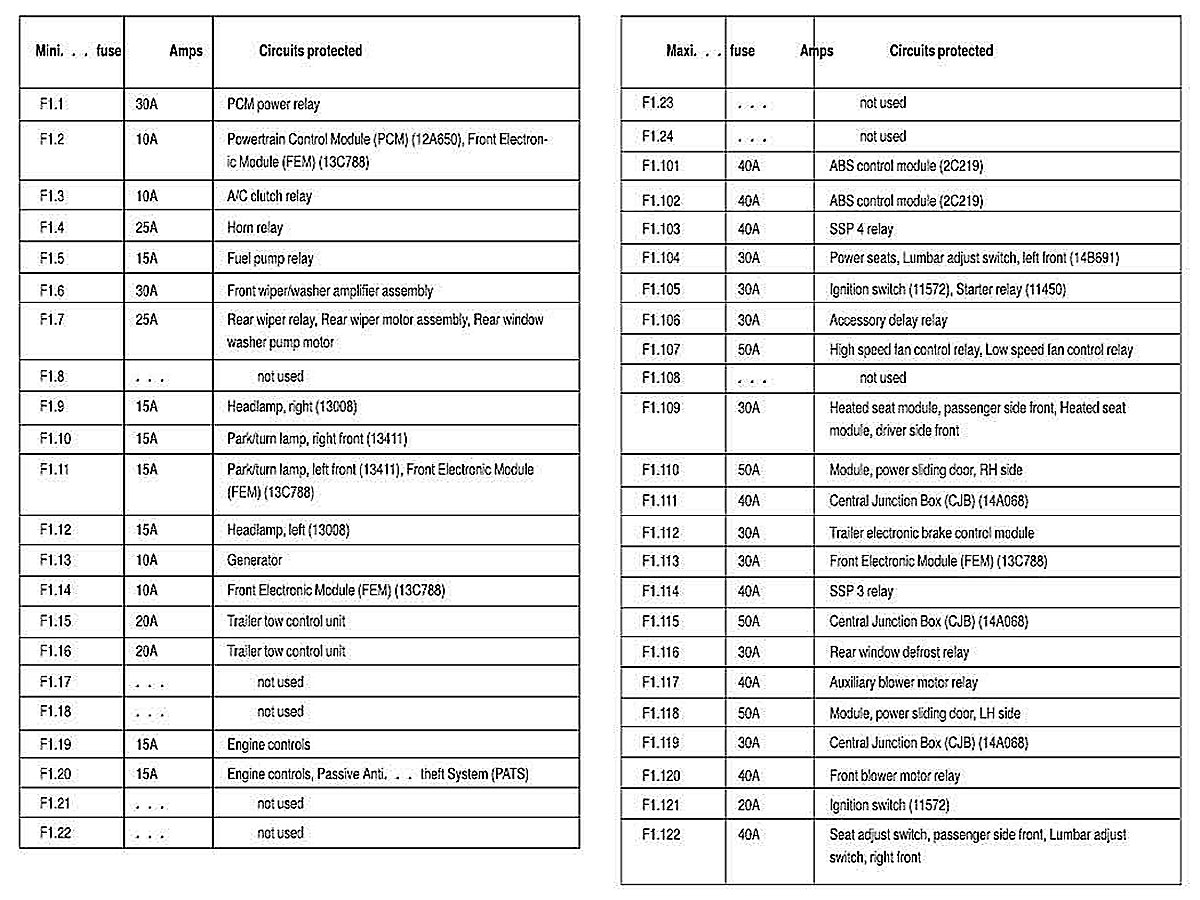

Battery Junction Box (2 Of 2):
