EGR Tube: Service and Repair
REMOVAL 1.
Raise and support the vehicle.
2.
Disconnect the
Exhaust Gas Recirculation (EGR) tube nut at the manifold connector.
3.
Lower the vehicle.
4.

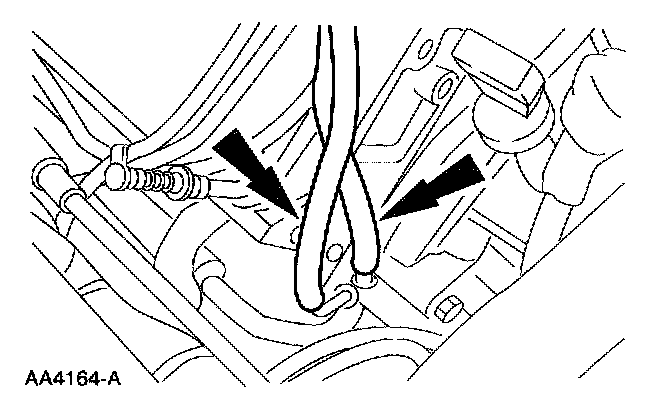

Disconnect the differential pressure feedback EGR vacuum hoses from the EGR valve tube.
5.
Disconnect the
EGR tube nut at the
EGR valve and remove the EGR valve tube.
INSTALLATION 1.
To install, reverse the removal procedure.
