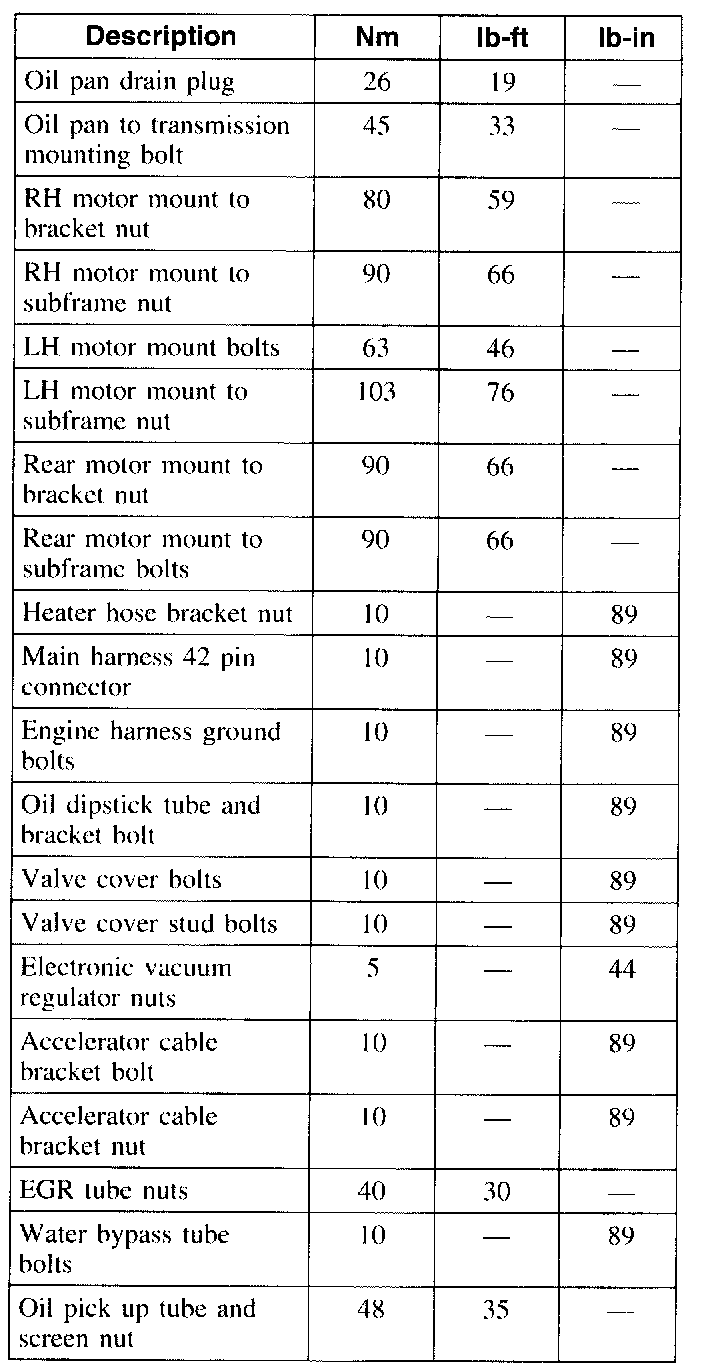

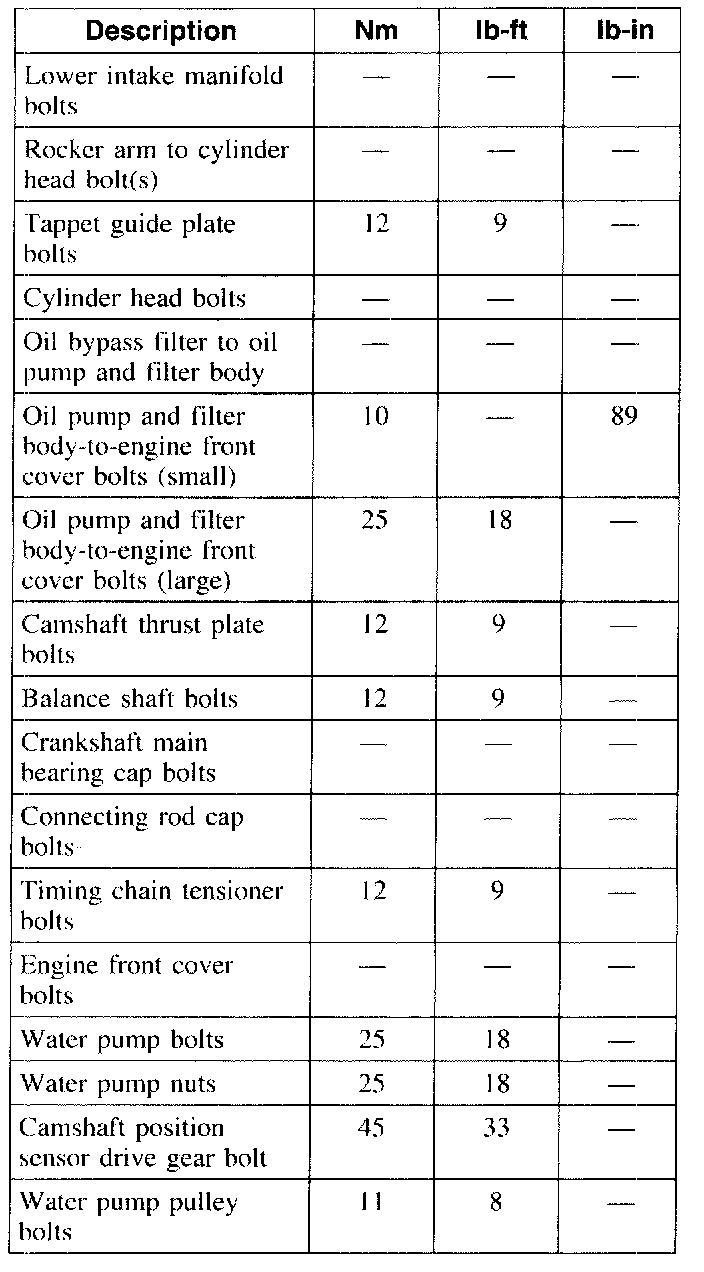

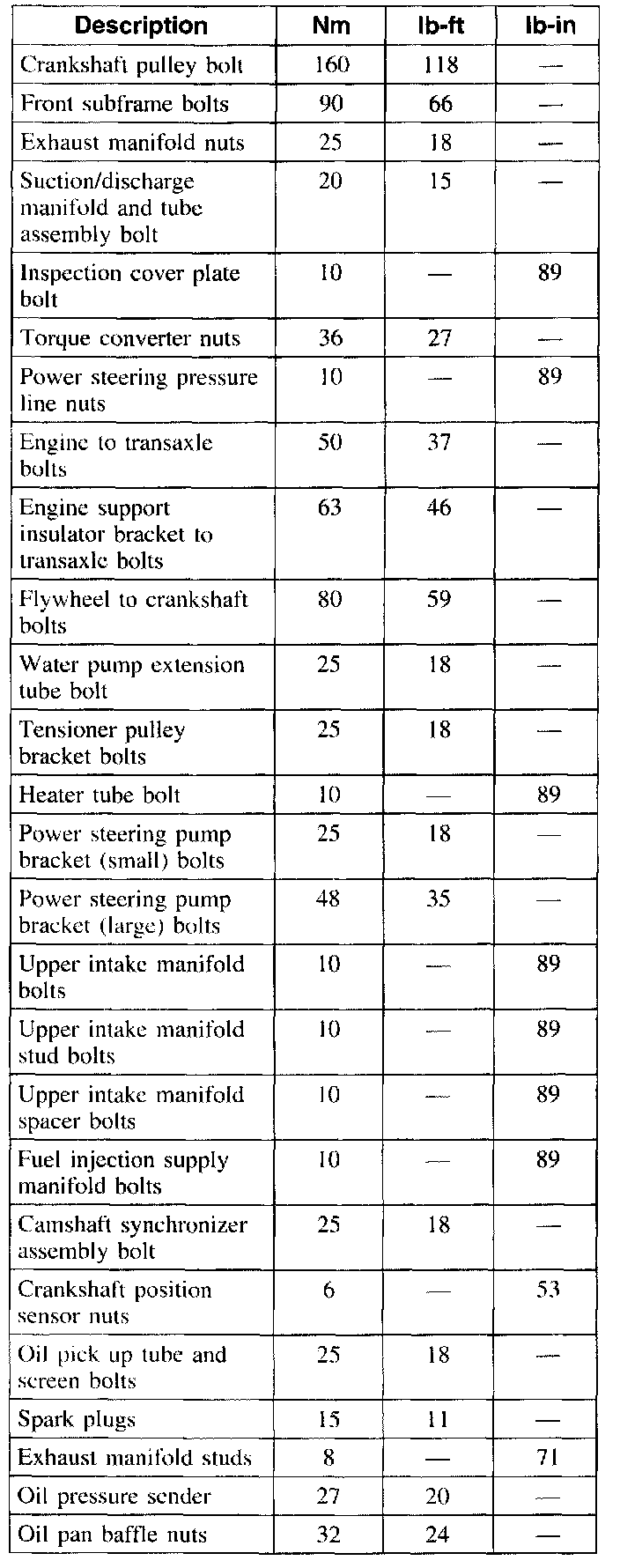

Torque Specifications

Torque Specifications

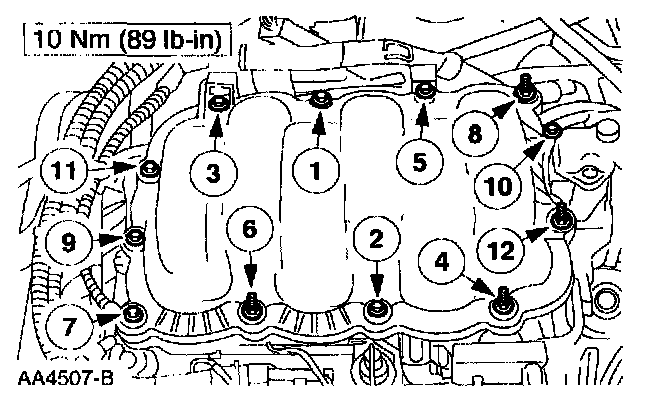

Intake Manifold Sequence


LH:

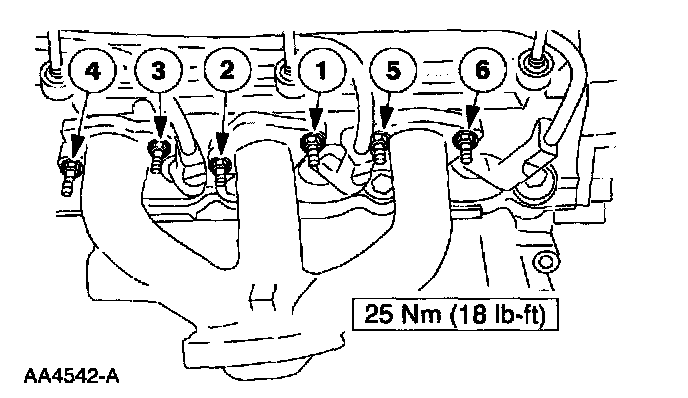

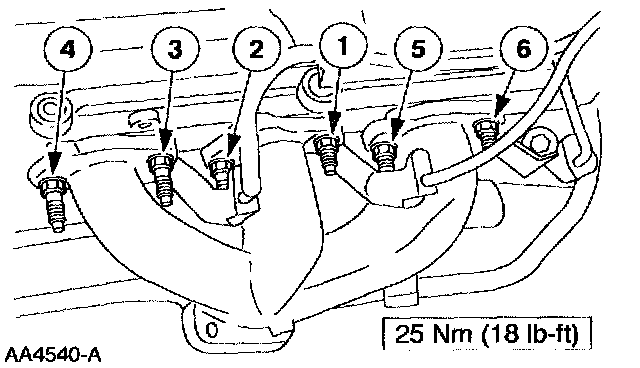

Exhaust Manifold torque and sequence

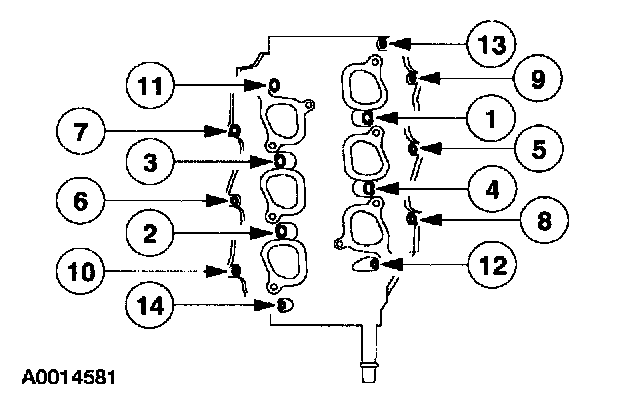

Water Pump sequence
