Front

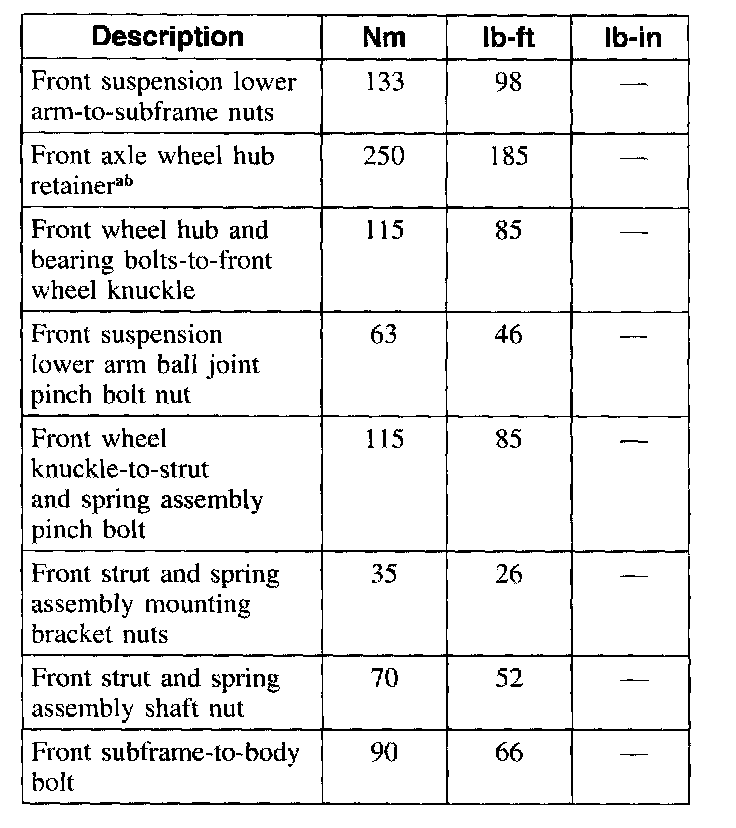

Torque Specifications








a Apply a small patch of Loctite 242 or equivalent meeting Ford specification WSK-M2G351-A5 to the last five front wheel driveshaft joint threads before installing the new front axle wheel end nut.
b Install and tighten the new front axle wheel end nut to specification in a continuous rotation. Stopping the rotation during installation will cause the nylon lock to set incorrectly. This will cause incorrect torque readings while tightening the nut and lead to bearing failure. Always install a new front axle wheel end nut after loosening the nut, or when the nut has not been installed to specification in a continuous rotation.
