Test A: Engine Does Not Crank

PINPOINT TEST A: THE ENGINE DOES NOT CRANK

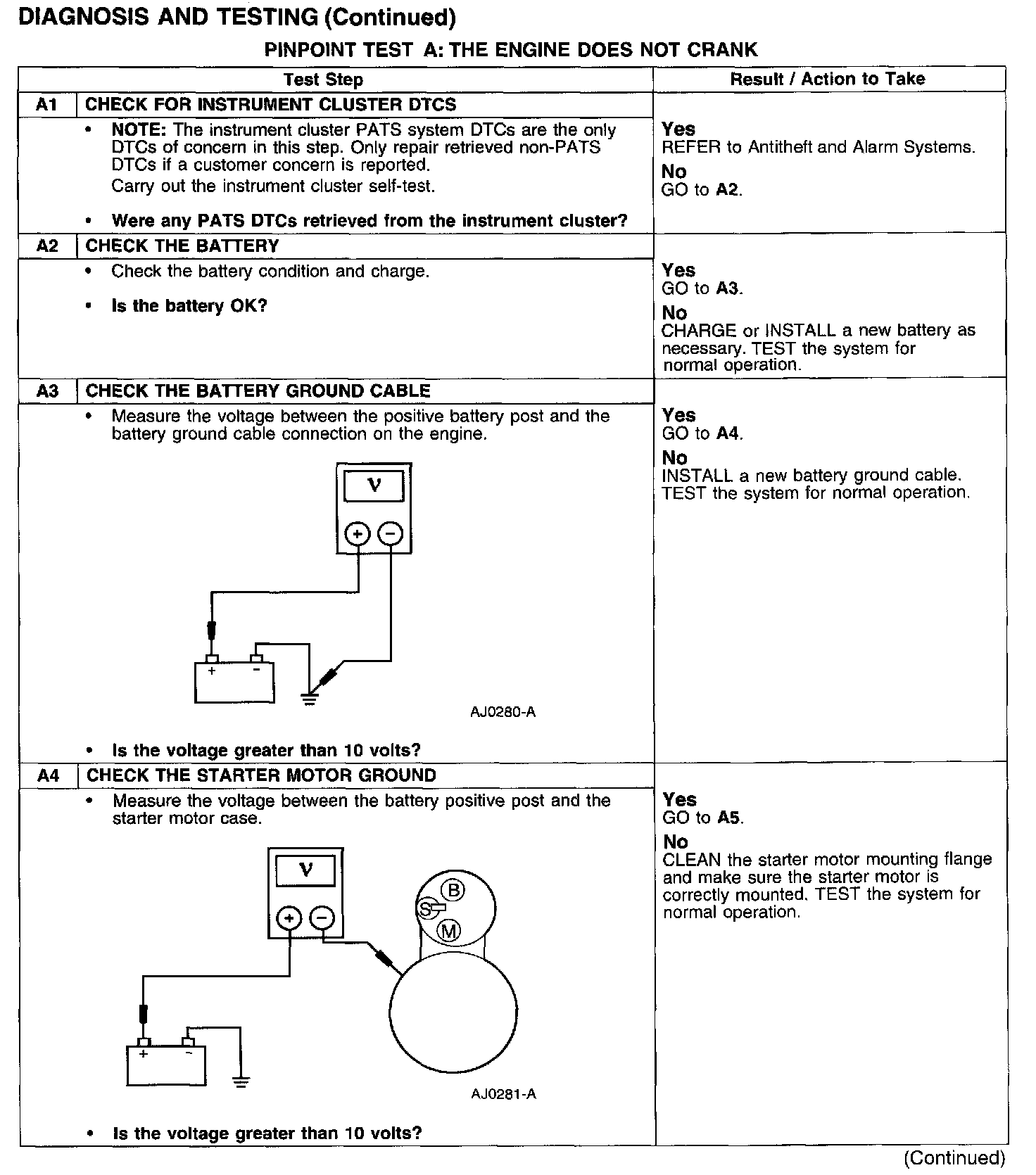

Test A1-A4:

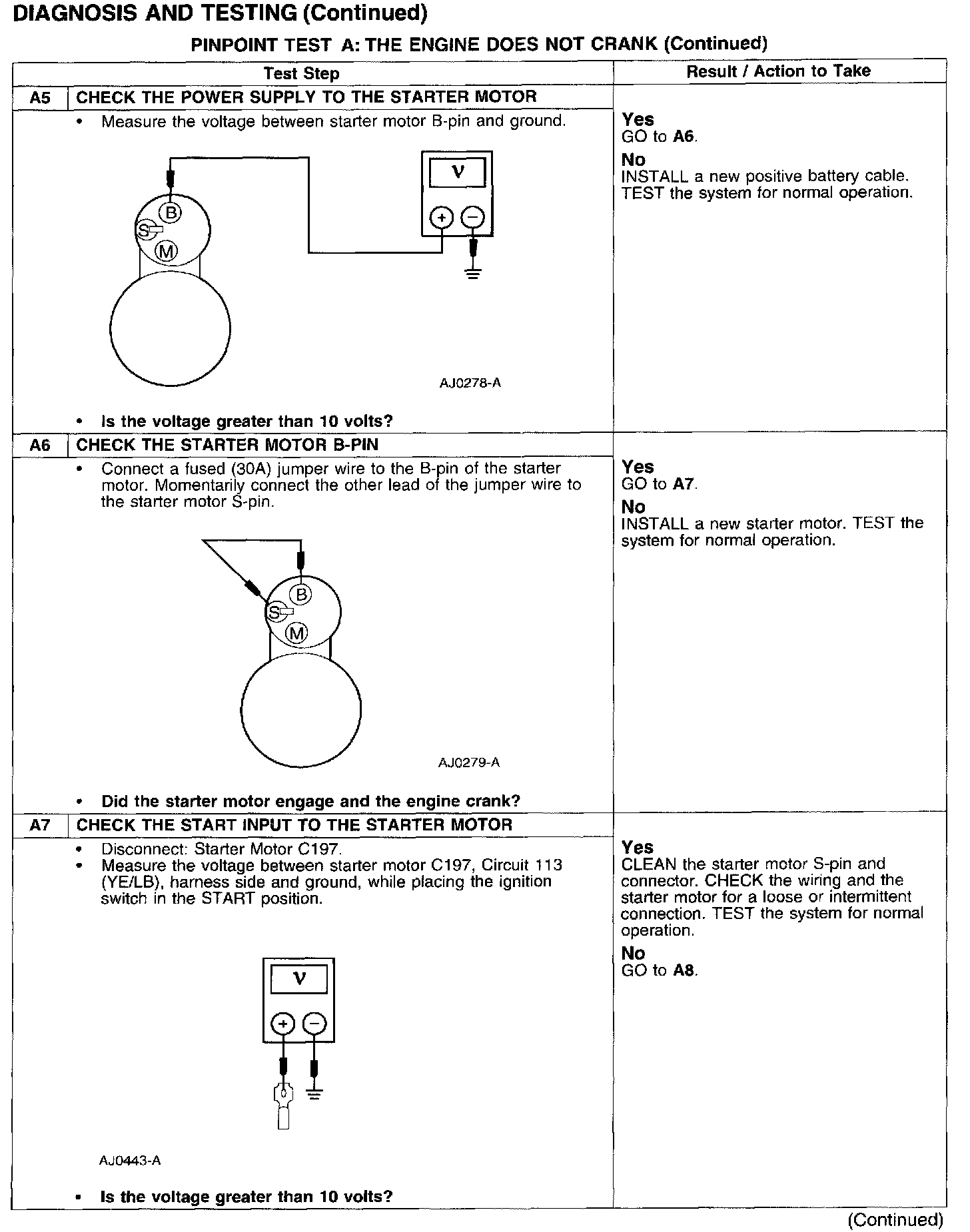

Test A5-A7:

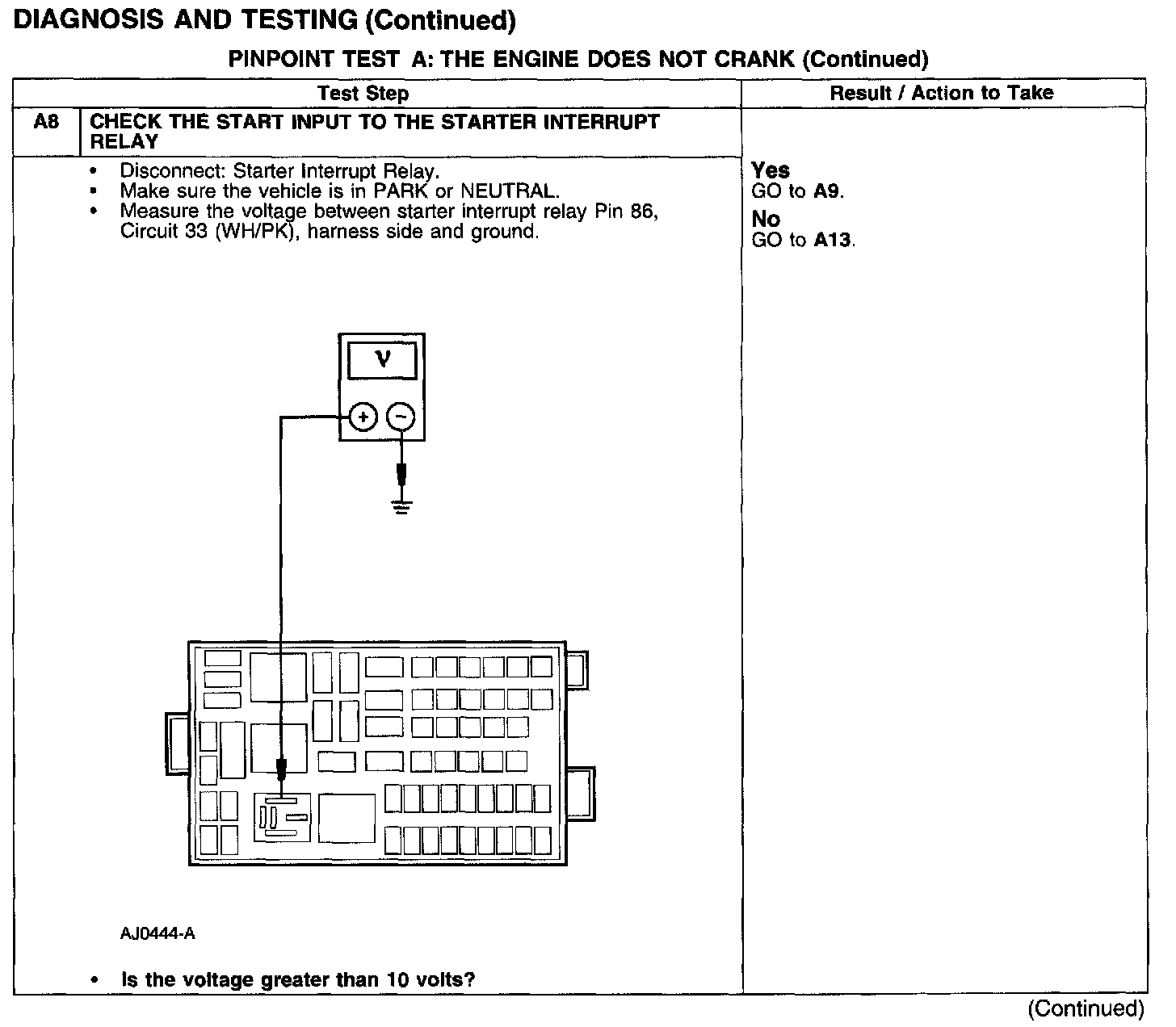

Test A8:

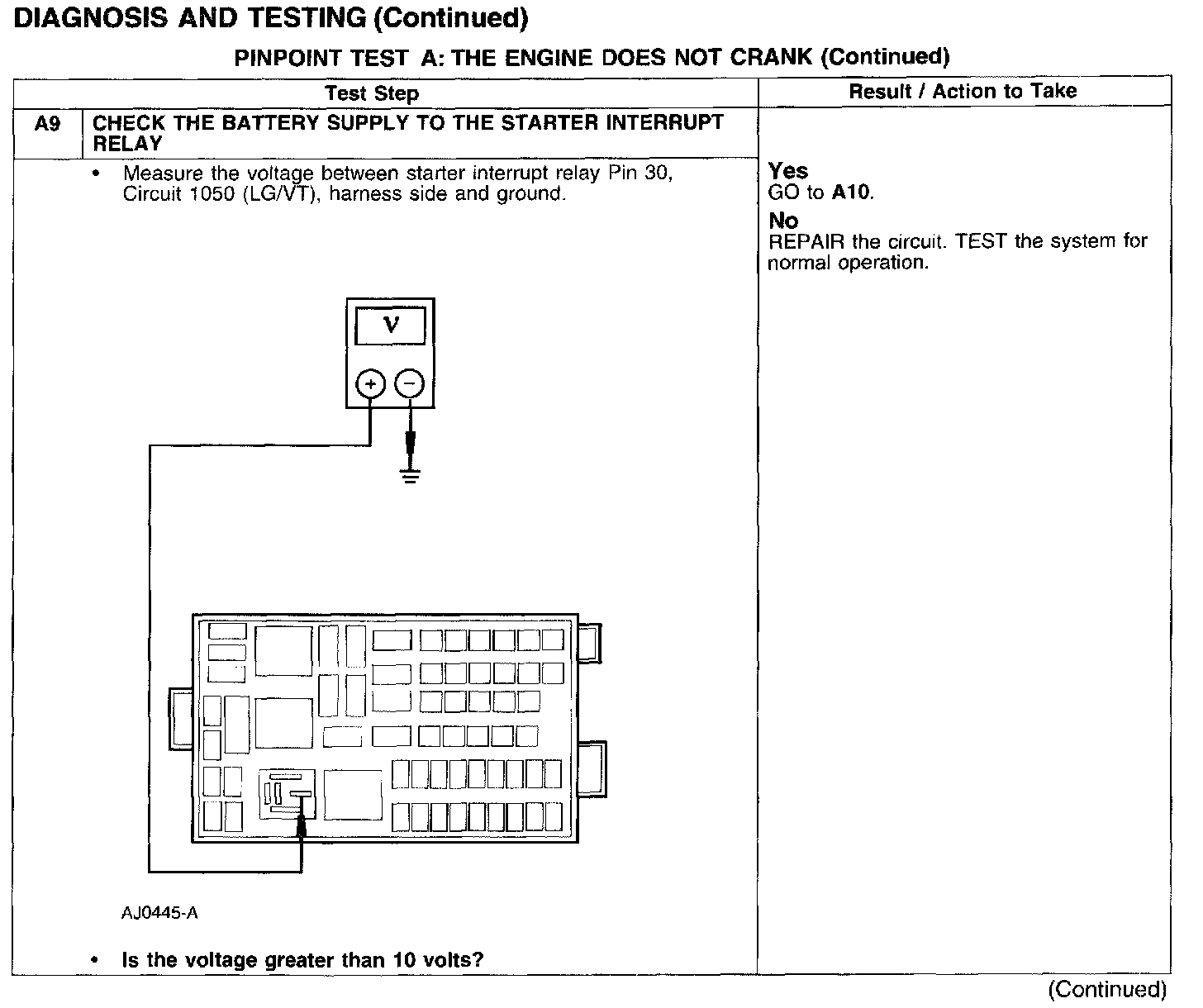

Test A9:

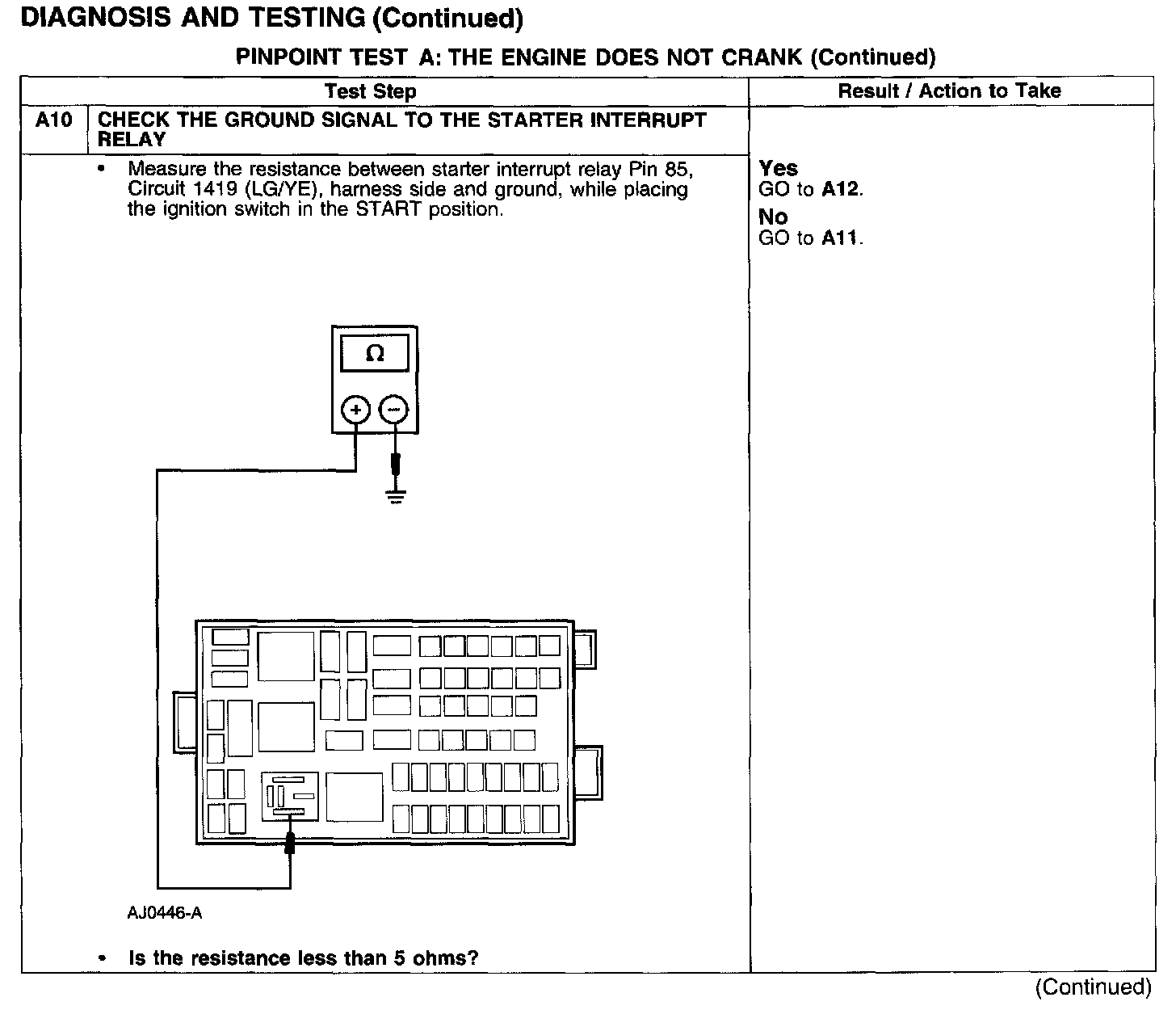

Test A10:

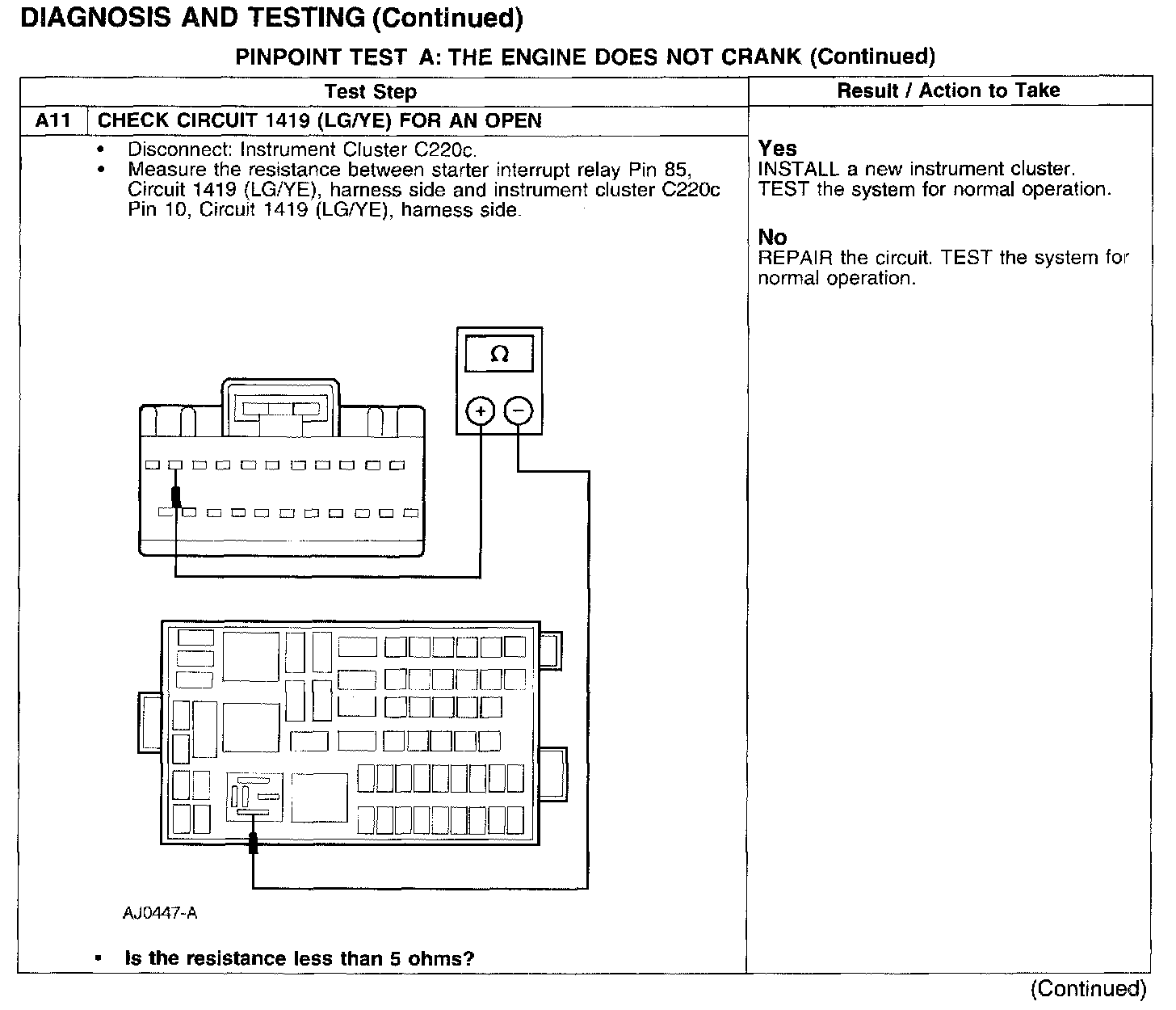

Test A11:

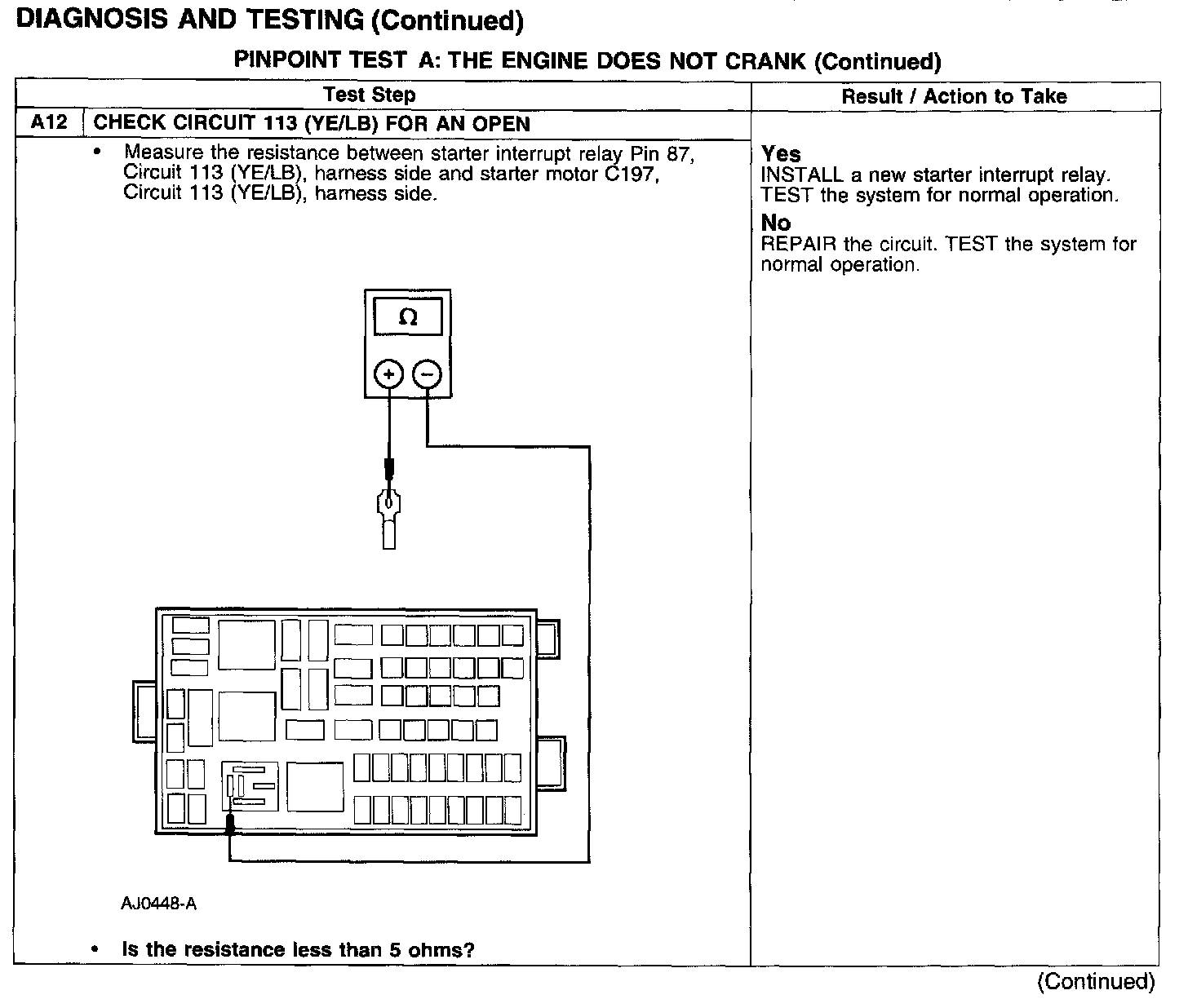

Test A12:

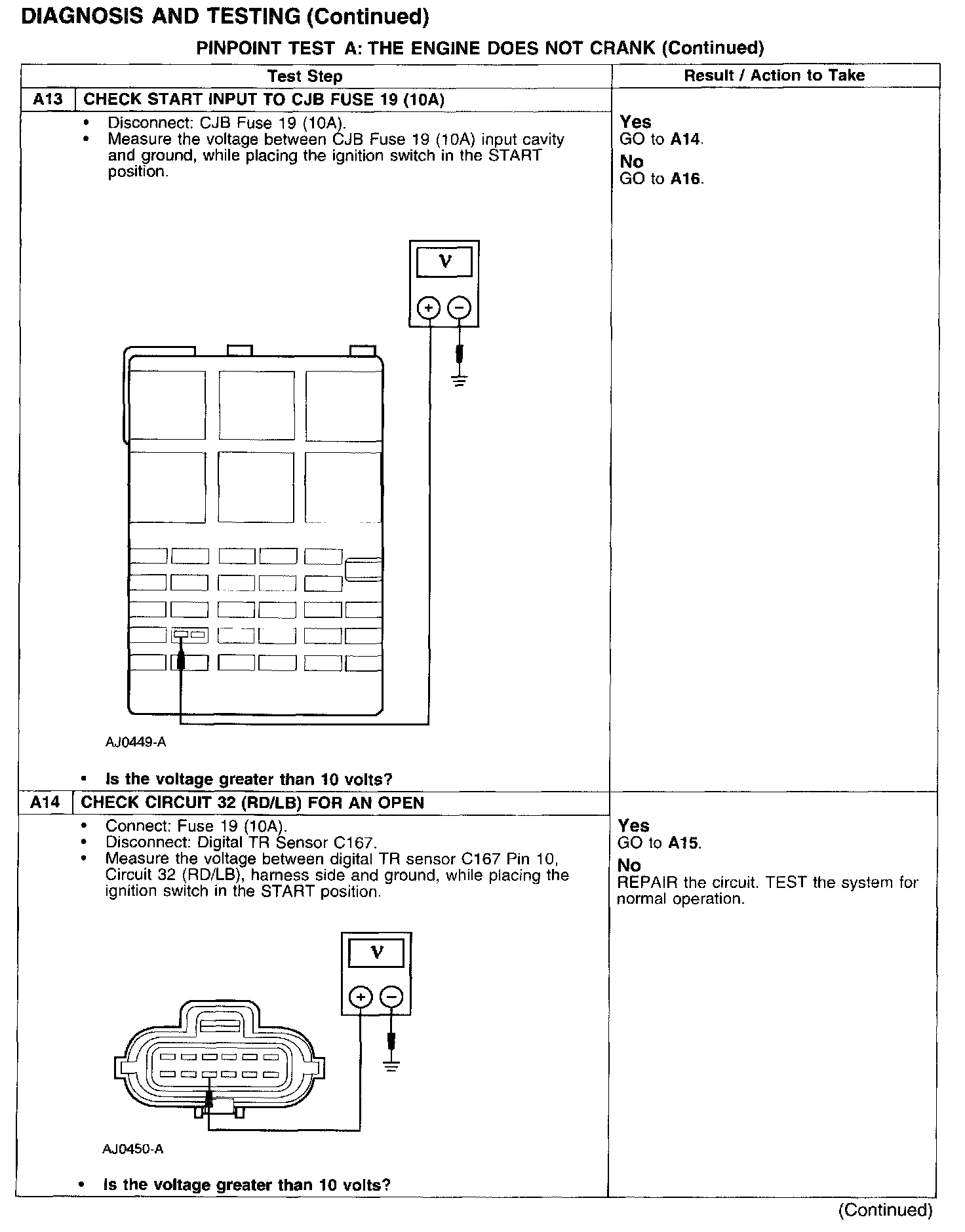

Test A13-A14:

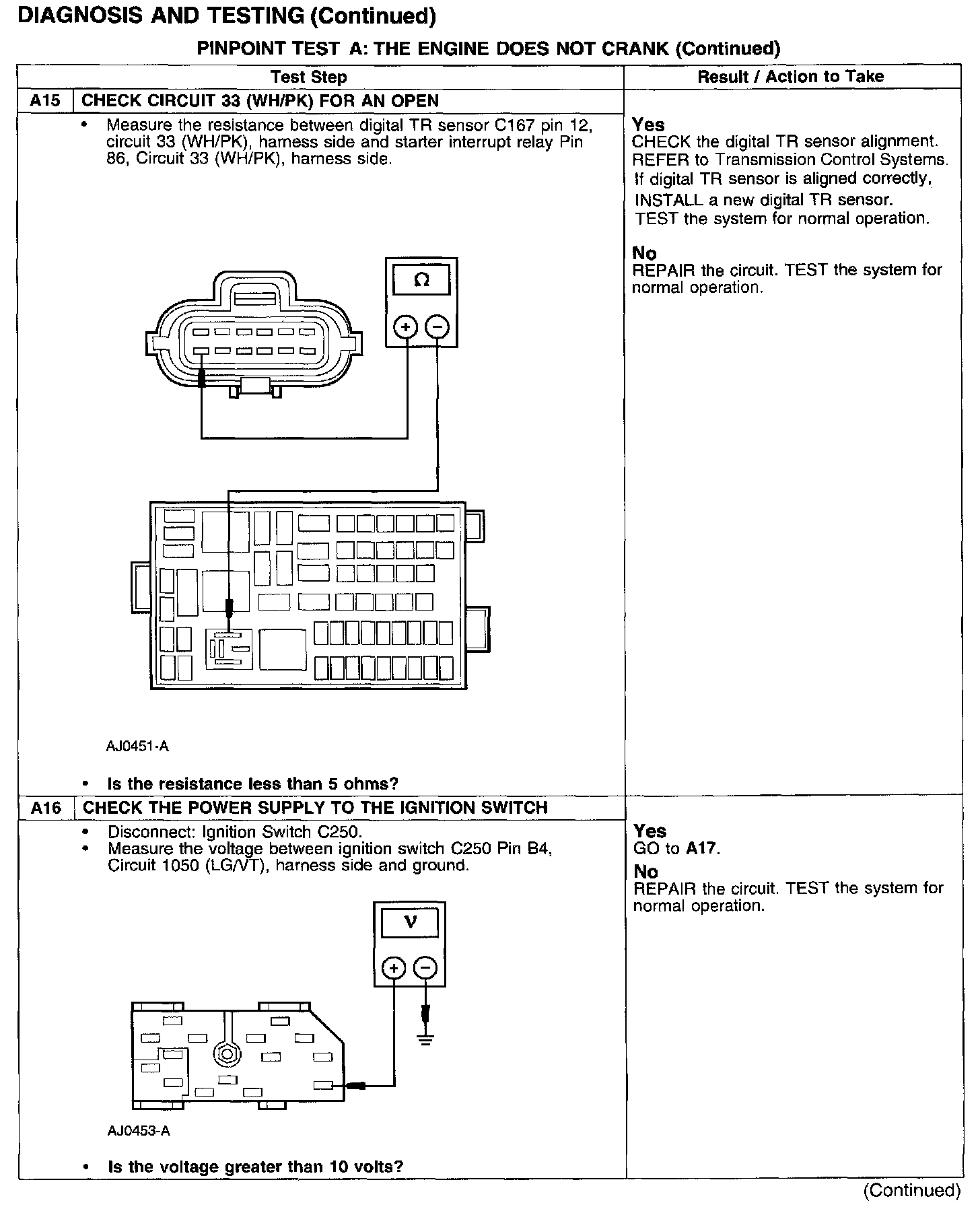

Test A15-A16:

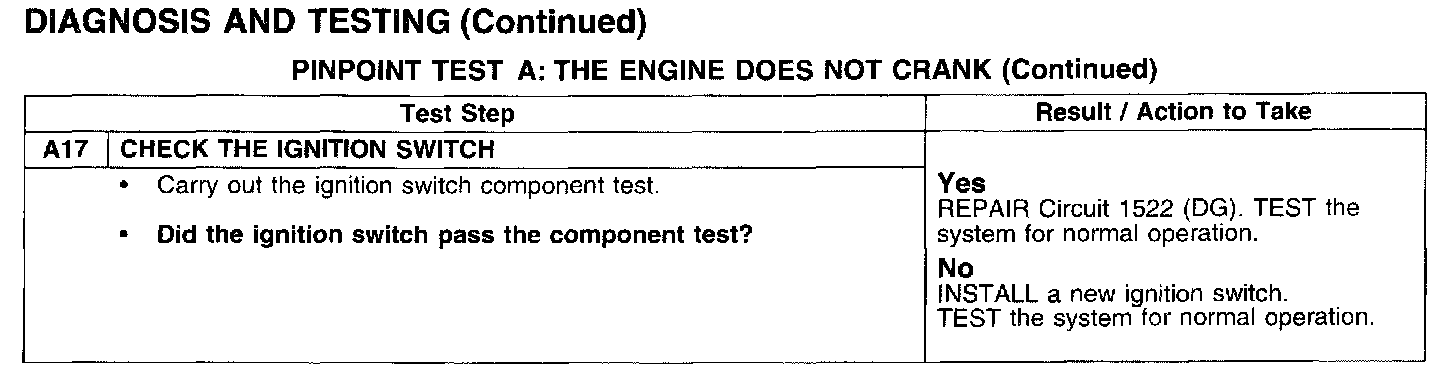

Test A17:
