Reactivation
ReactivationWARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the deactivation procedure.
All vehicles

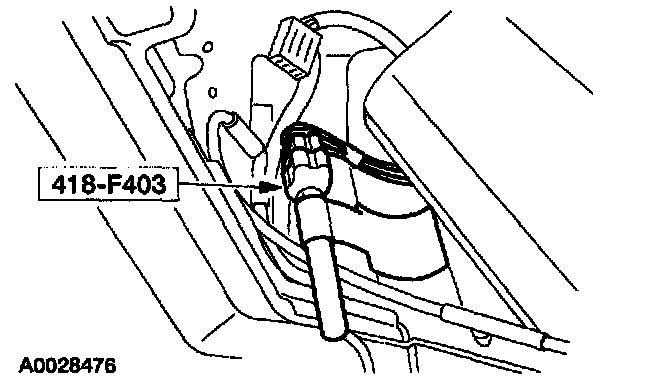

1. Remove the restraint system diagnostic tool from the driver side satiety belt retractor pretensioner floor electrical connector
2. Connect the driver side safety belt retractor pretensioner electrical connector.
3. Route the safety belt webbing into the driver side B-pillar lower trim panel.
4. Position the driver side B-pillar lower trim panel to the B-pillar and connect the courtesy lamp electrical connector.
5. Connect the power sliding door switch electrical connector at the driver side B-pillar lower trim panel.
6. Align the driver side B-pillar lower trim panel and push in, seating the retaining clips.
7. Position the driver side safety belt anchor and install the bolt.
8. Install the driver side B-pillar weather-stripping.
9. Install the driver side front and rear door scuff elates.
Vehicles with side air bags
10. Remove the restraint system diagnostic tool from the driver seat side air bag floor electrical connector.

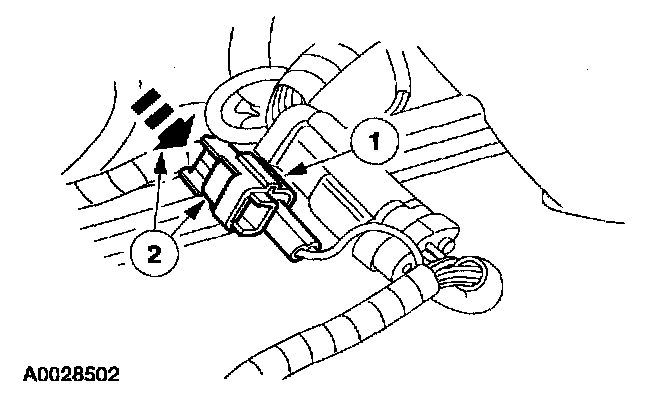

11. Connect the driver seat side air bag electrical connector .
1 Connect the driver seat side air bag electrical compactor.
2 Slide and engage the driver seat side air bag electrical connector locking clip
All vehicles
12. Remove the restraint system diagnostic tool from the passenger side safety belt retractor pretensioner floor electrical connector
13. Connect the passenger side safety belt retractor pretensioner electrical connector
14. Route the safety belt webbing into the passenger side B-pillar lower trim panel.
15. Position the passenger side B-pillar lower trim panel to the B-pillar and connect the courtesy lamp electrical connector.
16. Connect the power sliding door switch electrical connector at the passenger side B-pillar lower trim panel.
17. Align the passenger side B-pillar lower trim panel and push in, seating the retaining clips.
18. Position the passenger side safety belt anchor and install the bolt.
19. Install the passenger side B-pillar weather-stripping.
20. Install the passenger side front and rear door scuff plates.
Vehicles with side air bags
21. Remove the restraint system diagnostic tool from the passenger seat side air bag floor electrical connector.
22. Connect the passenger seat side air hag electrical connector
1 Connect the passenger seat side air bag electrical connector
2 Slide and engage the passenger seal side air bag electrical connector locking clip
All vehicles
23. Connect the battery ground cable
24. Position the front scats rearward
25. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air hag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel console, door latches, strikers, seats and hood latches.
Please refer to the location of the front air bag sensors.
The side air bag sensors are located at or near the base of the B-pillar.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
Disconnect the battery ground cable and wait at least one minute.
26. Remove the restraint system diagnostic tool from the vehicle harness side of the passenger air bag electrical connector.
27. Connect the passenger air bag module electrical connector.
28. Close the glove compartment.
29. Remove the restraint system diagnostic tool from the vehicle harness side of the clockspring electrical connector.
30. Connect the clockspring electrical connector at the base of the steering column.
31. Position the steering column opening lower reinforcement and install the three bolts.
32. Install the steering column opening lower finish panel.
1 Align the steering column opening lower finish panel and push in, seating the retaining clips.
2 Install the screws.
33. Connect the battery ground cable.
34. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
With all the restraint system diagnostic tools removed, prove out the Supplemental Restraint System (SRS).
35. Check the active restraint system for correct operation.
