Shift Interlock Cable: Service and Repair

Selector Lever Cable and Bracket

Removal and Installation
1. Position the gearshift lever in the (D) Position.





2. Disconnect the shift cable from the steering column.
1 Disconnect the shift cable from the shift assembly arm (7302).
2 Disconnect the shift cable from the steering column bracket.

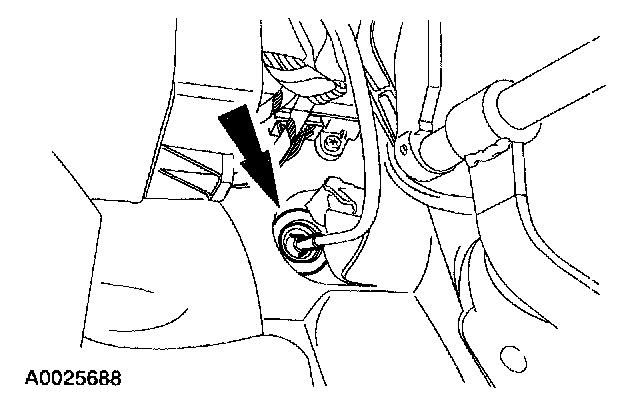

3. Push the rubber grommet through the bulkhead.

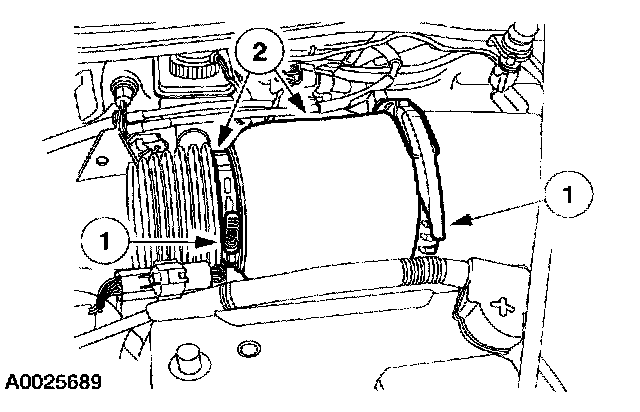

4. Position the air inlet cover aside.
1 Loosen the clamps.
2 Separate the air inlet cover from the tube, and position the air inlet cover aside.





5. NOTE: If not installing a new shift cable, proceed to the following step to remove the shift cable with the bracket.

Remove the shift cable from the vehicle.
1 Disconnect the shift cable from the manual control lever.
2 Push the lock tab and separate the shift cable from the bracket.
3 Remove the shift cable from the vehicle.





6. Remove the nut, bolts, and the shift cable bracket.
^ If removing the shift cable and bracket as an assembly, remove the assembly from the vehicle.
7. To install reverse the removal procedure.
^ Adjust the shift cable before installing the air inlet cover.
