Quarter Window Motor: Service and Repair
MOTOR - POWER FLIP QUARTER WINDOWREMOVAL 1.
Remove the quarter trim panel.
2.
Disconnect the rear quarter power flip window motor electrical connector.
3.

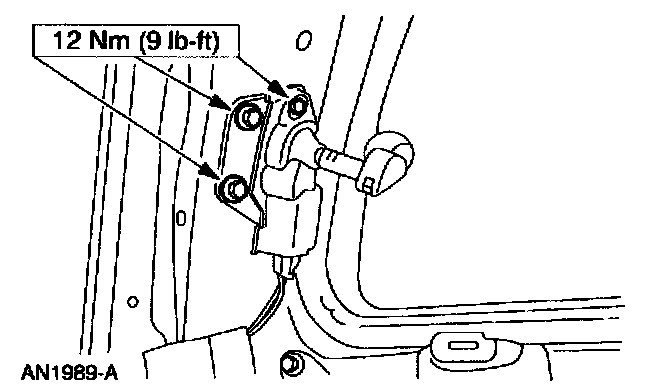

Remove the rear quarter power flip window motor screws.
4.
Remove the rear quarter power flip window motor.
INSTALLATION 1.
To install, reverse the removal procedure.
