Test G

PINPOINT TEST G: THE REAR WINDOW WILL NOT DEFROST

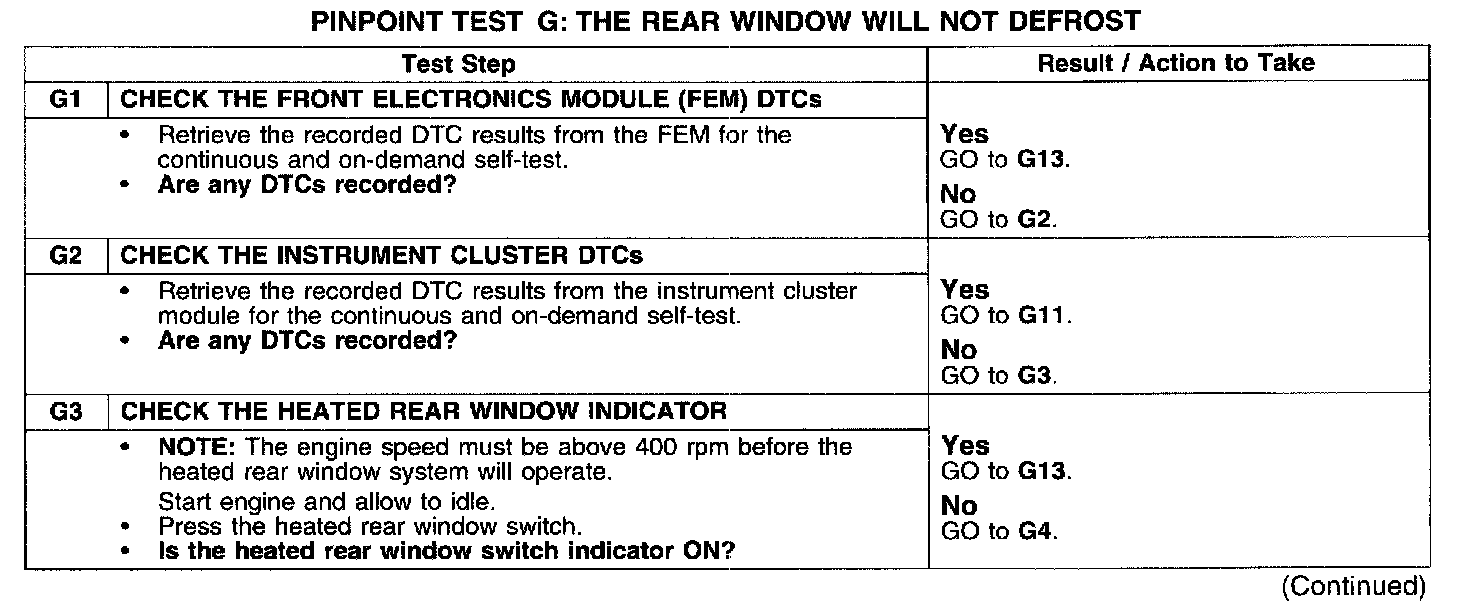

Test G1-G3:

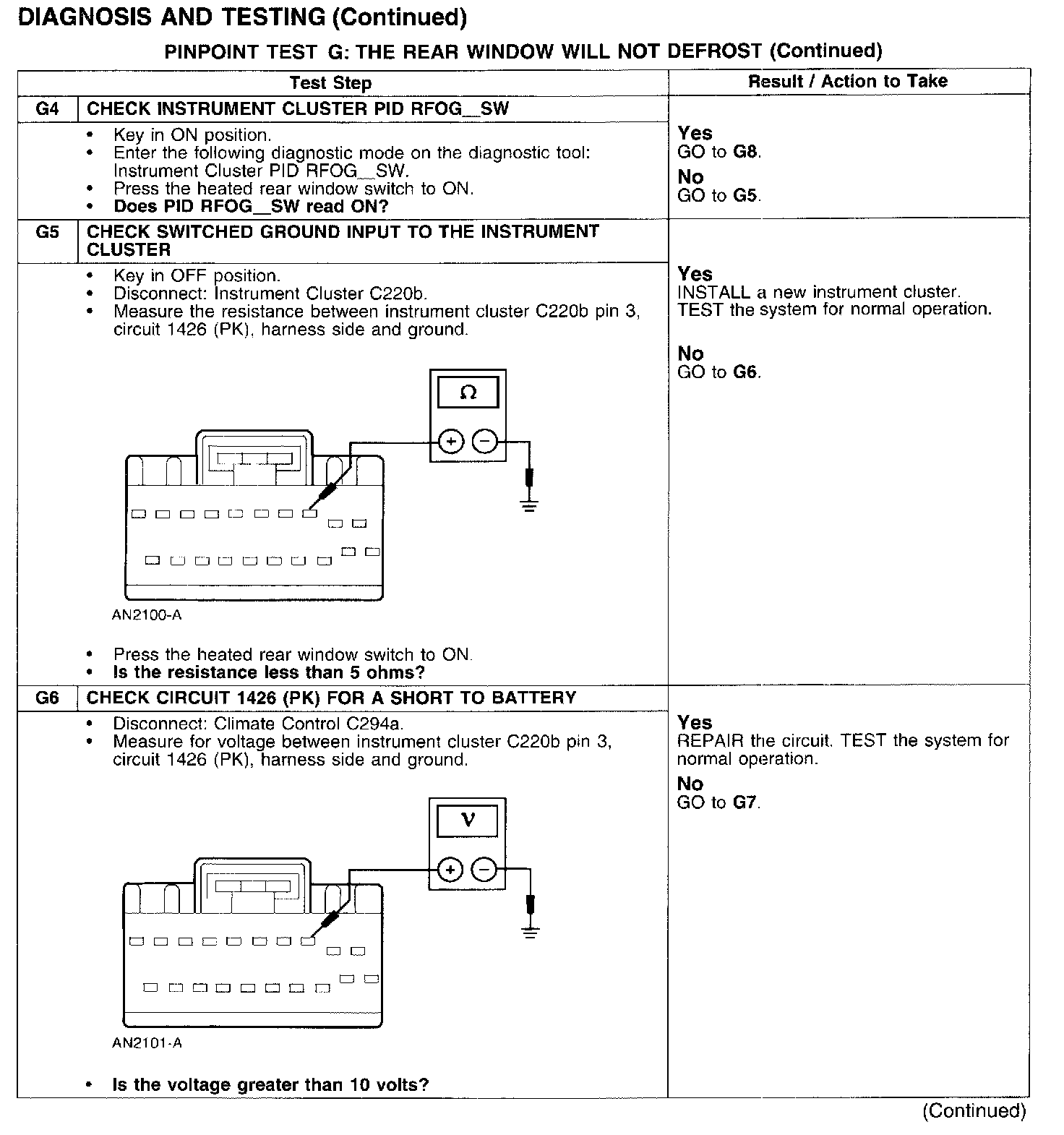

Test G4-G6:






Test G7-G8:

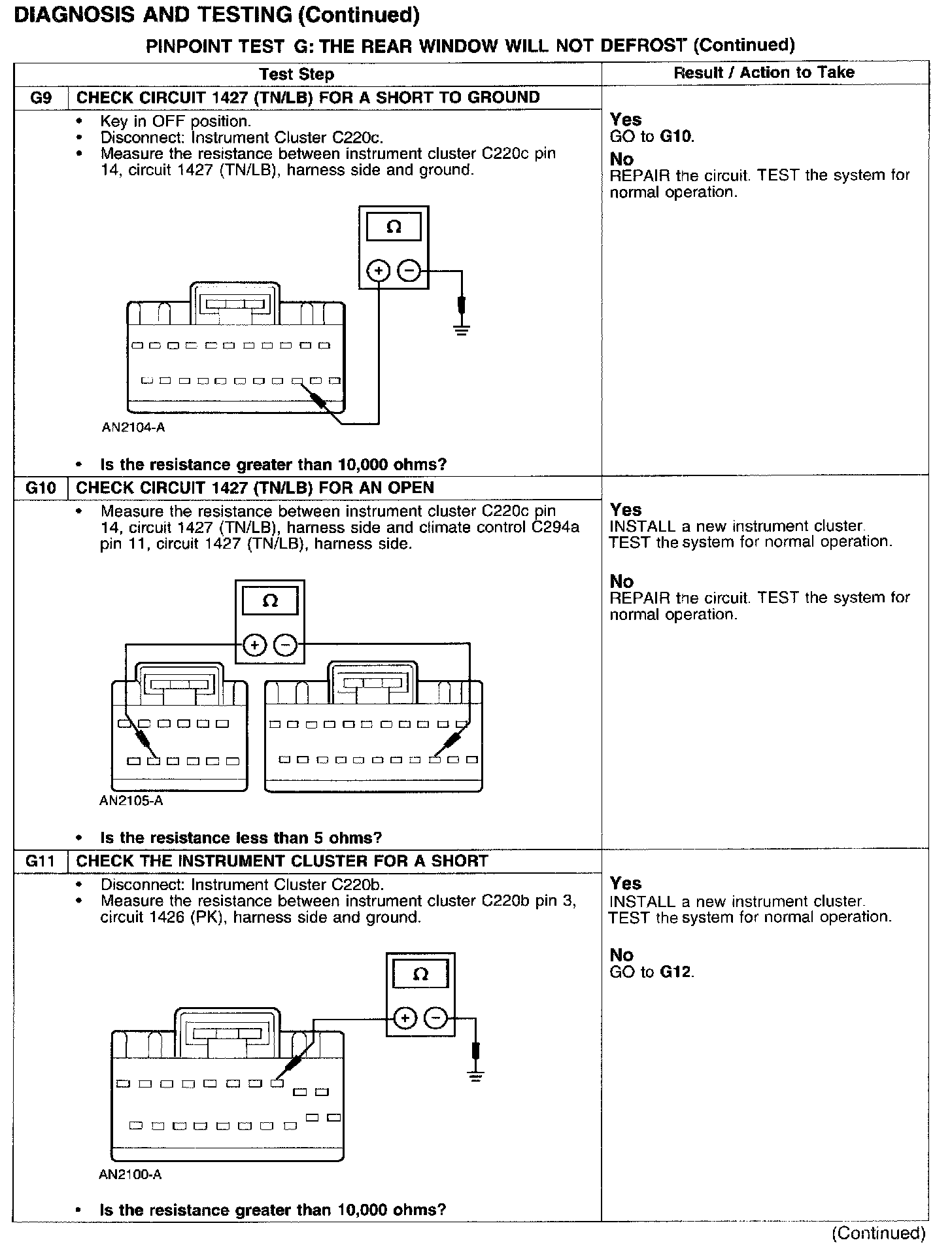

Test G9-G11:

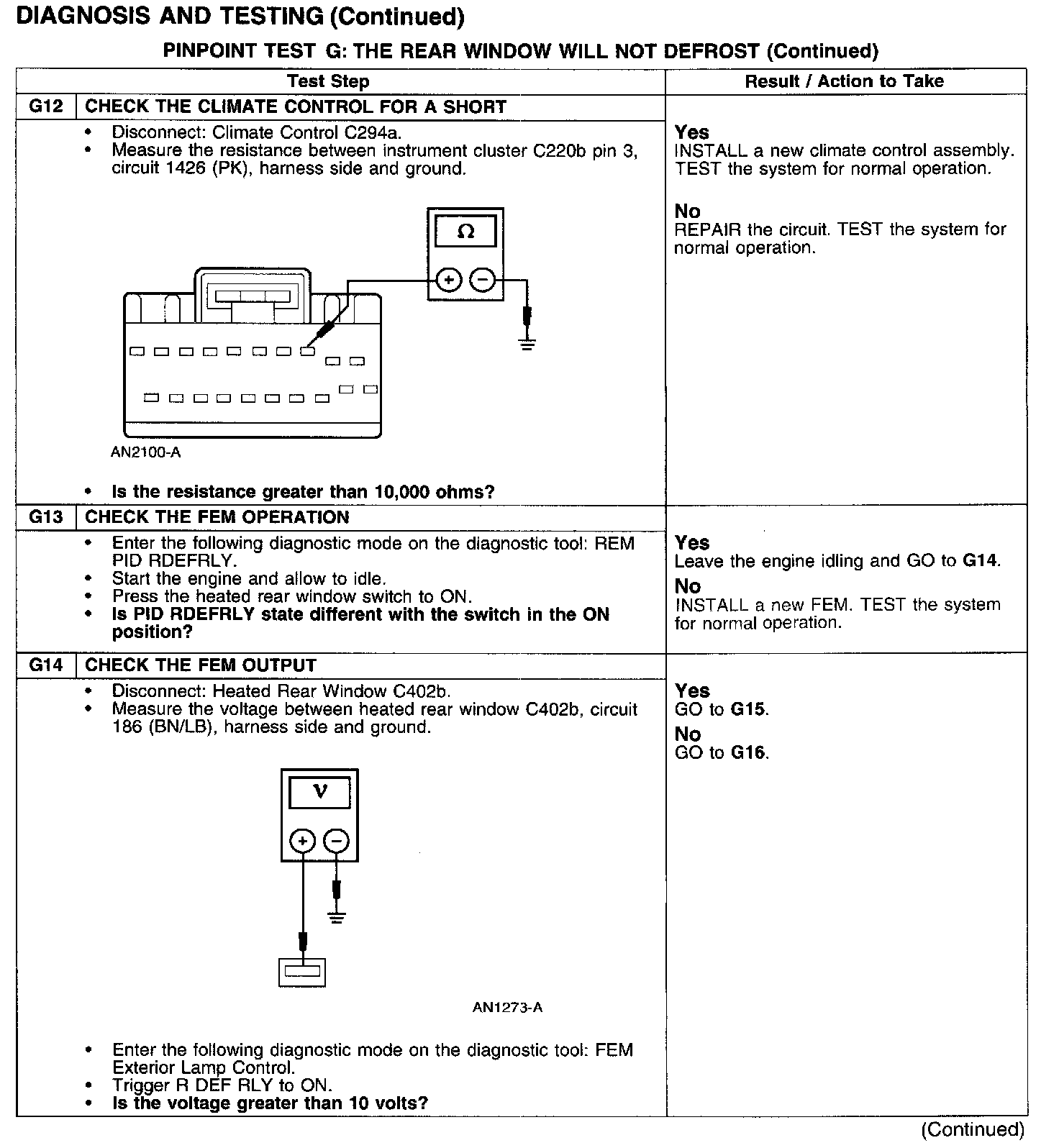

Test G12-G14:

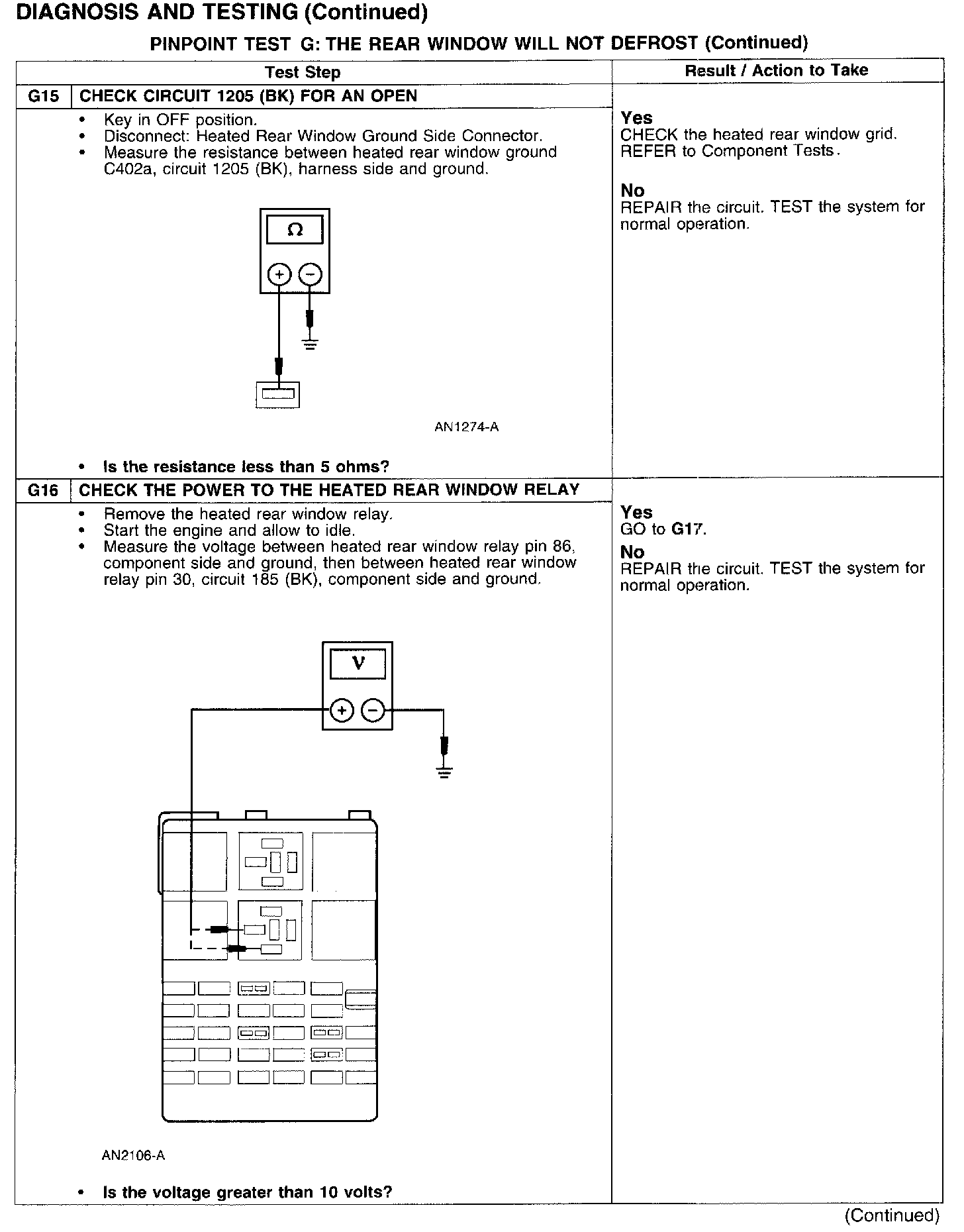

Test G15-G16:






Test G17-G19:
