Quarter Window Glass: Adjustments

WINDOW GLASS ADJUSTMENT - REAR QUARTER FLIP

1. Remove the quarter trim panel.

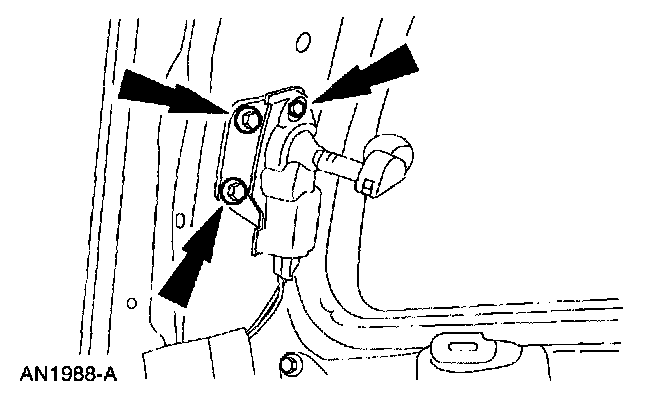

2. Loosen the screws.







3. Loosen the nuts.
4. Adjust the rear quarter window.







5. NOTE: After correct adjustment, have an assistant hold the rear quarter glass in place.

Tighten the nuts.







6. Tighten the screws.
7. Cycle the rear quarter flip window for correct operation.
8. Install the quarter trim panel.
