Second Row Side

SECOND ROW SIDE WINDOW GLASS

REMOVAL
1. Remove the rear quarter trim panel.







2. NOTE: Gently pull the glass away from the butyl.

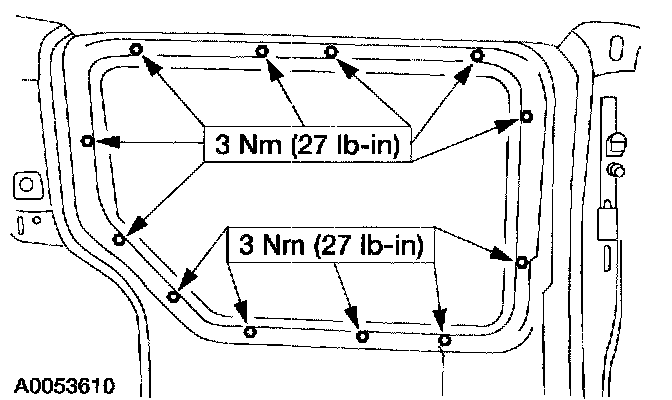

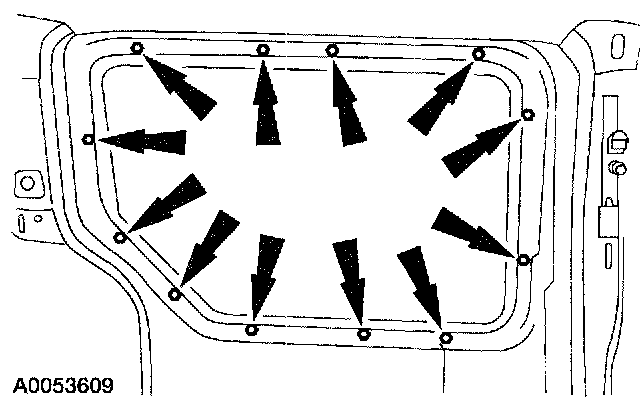

Remove the nuts and the side window glass.

INSTALLATION







1. NOTE: Clean the area of any remaining butyl.
Apply new butyl to the window assembly

To install, reverse the removal procedure.
