Home >> Ford >> 2003 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: THE WIPERS ARE INOPERATIVE - FRONT WIPERS

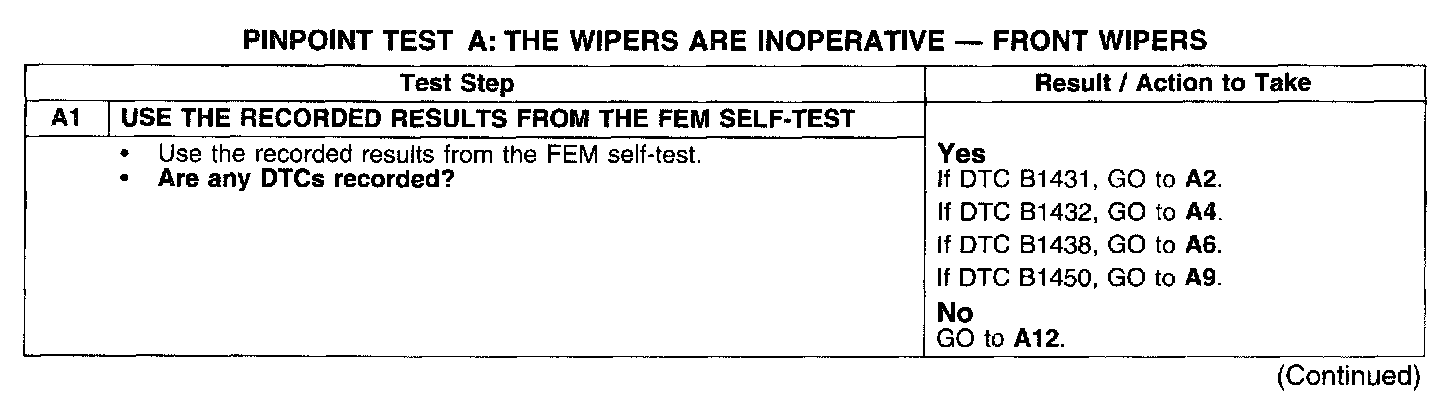

Test A1:

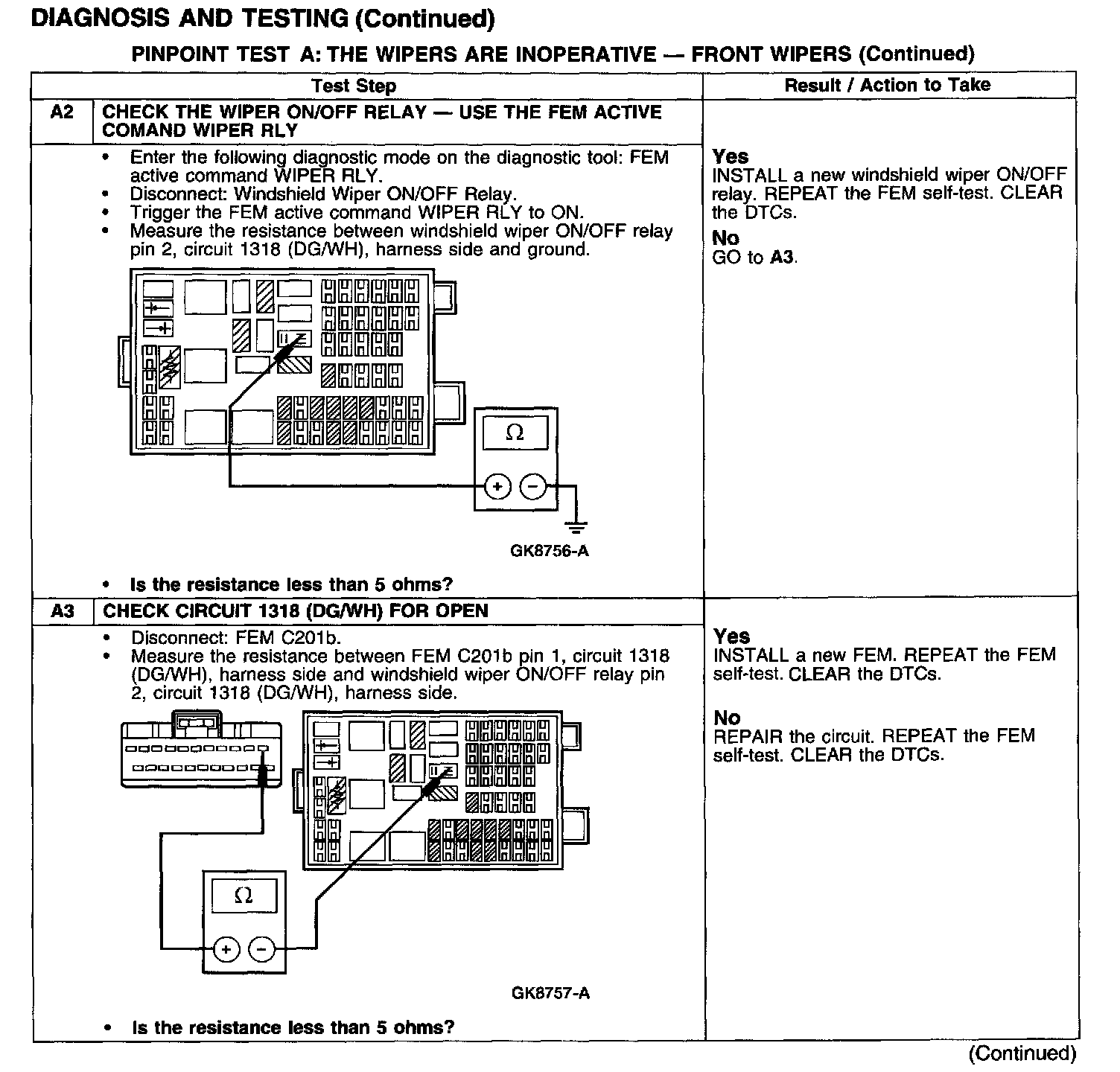

Test A2-A3:

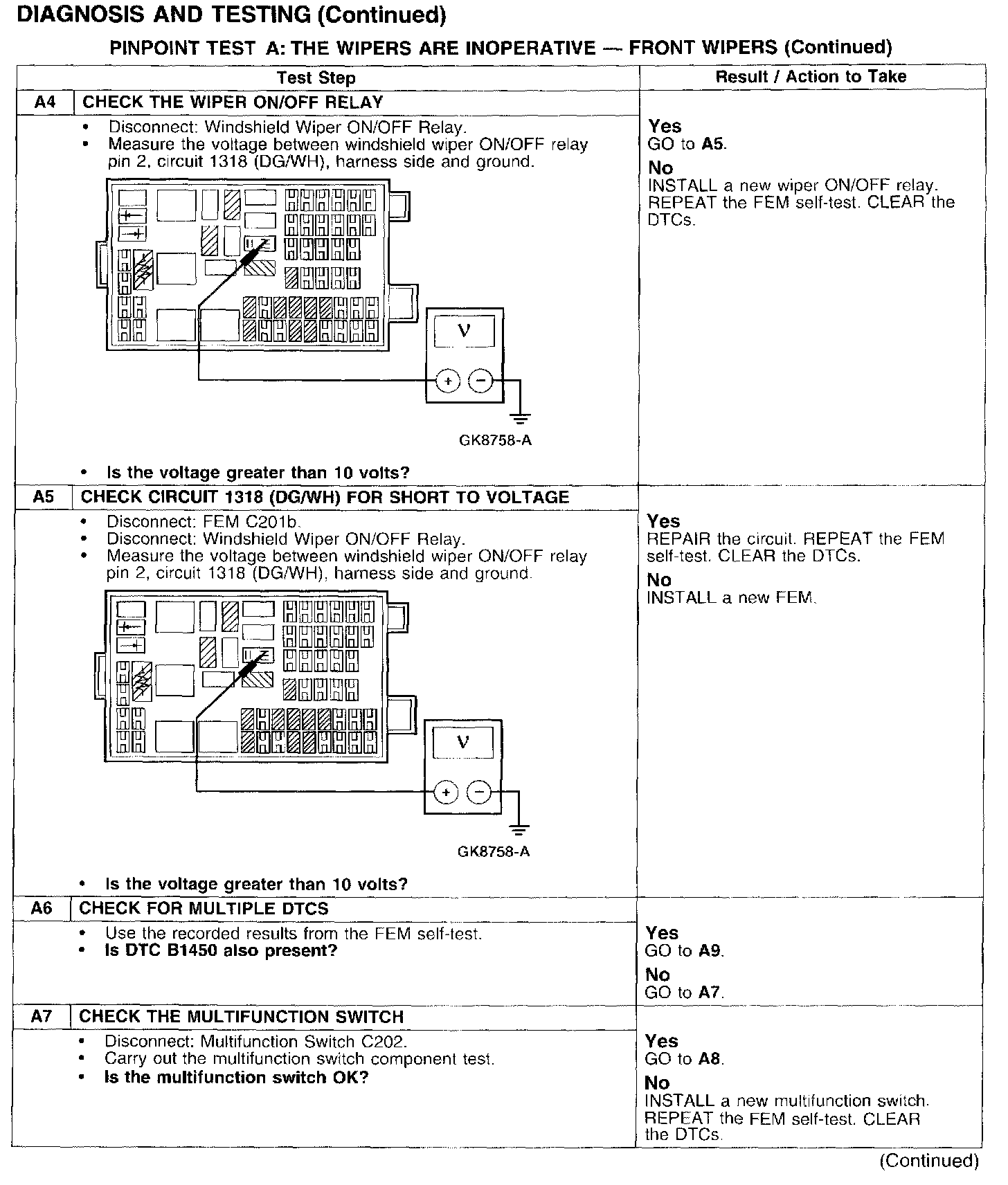

Test A4-A7:






Test A8-A10:

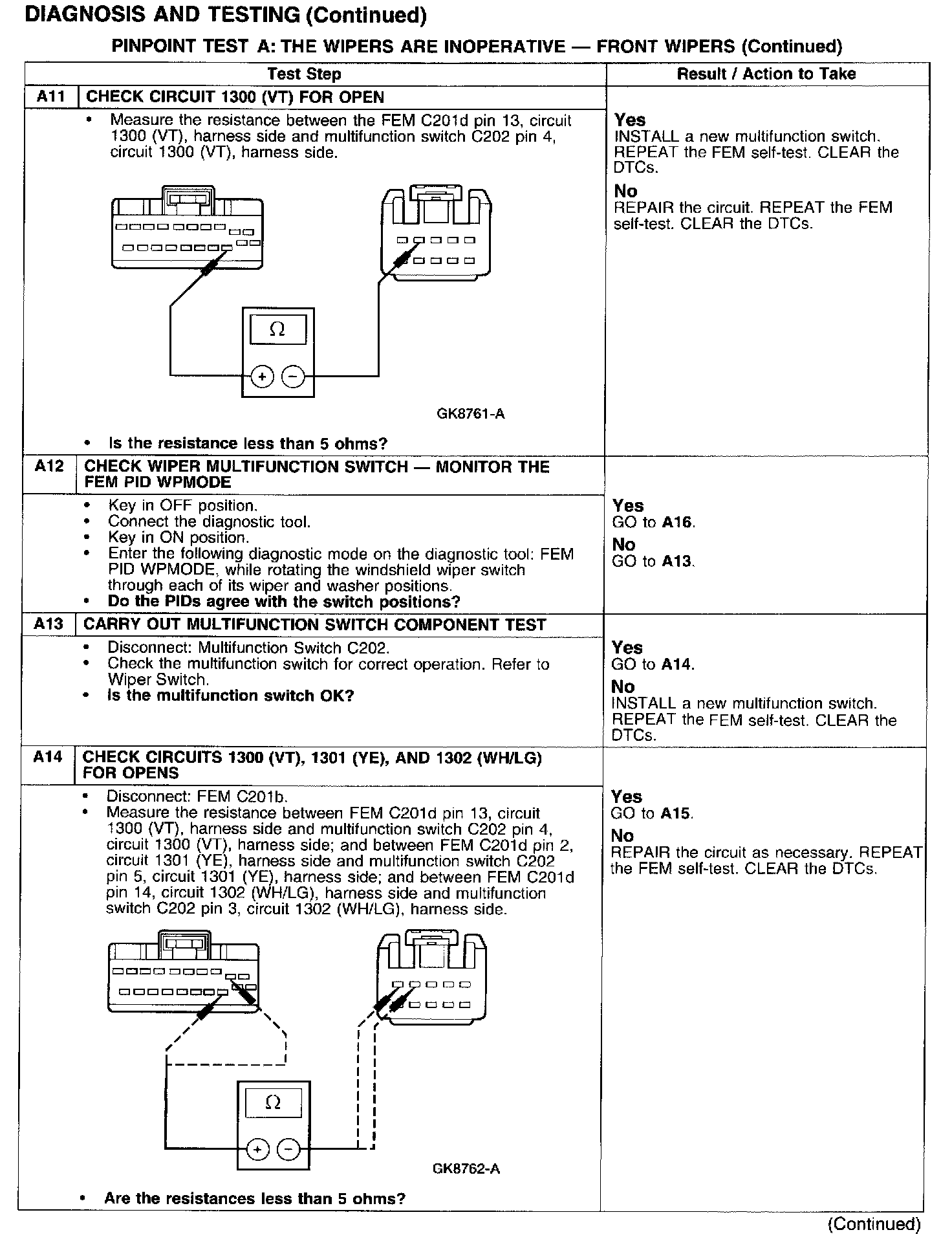

Test A11-A14:

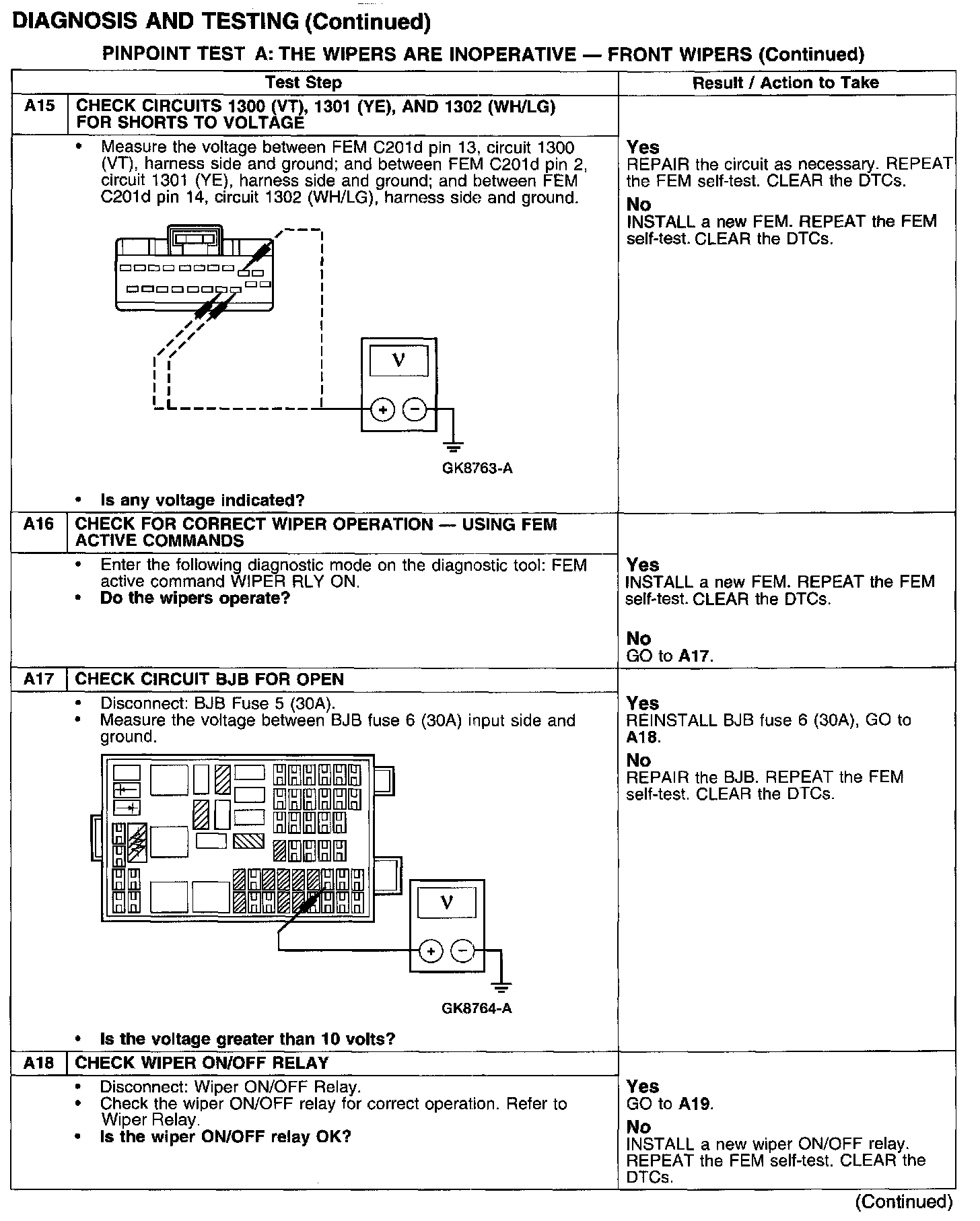

Test A15-A18:

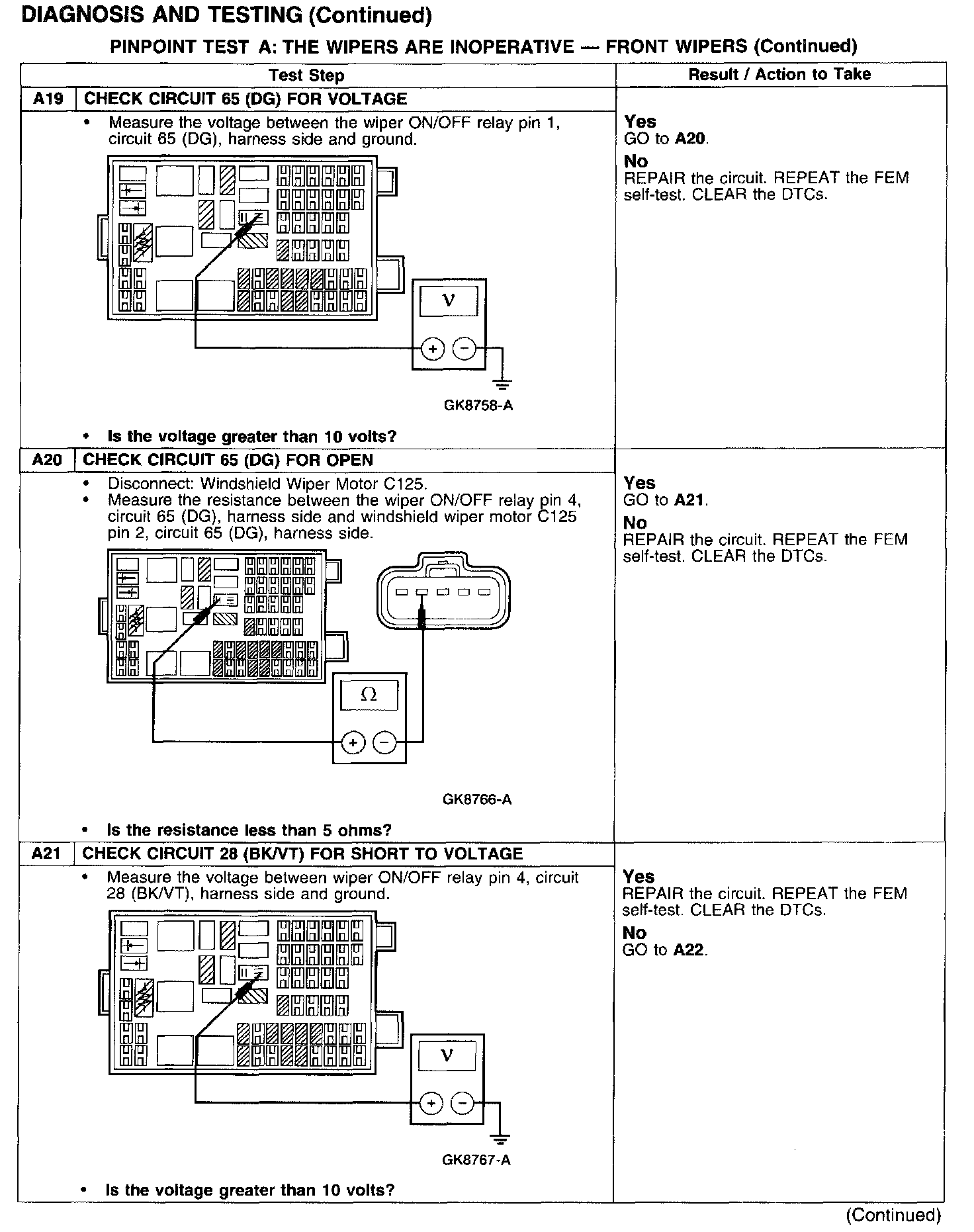

Test A19-A21:

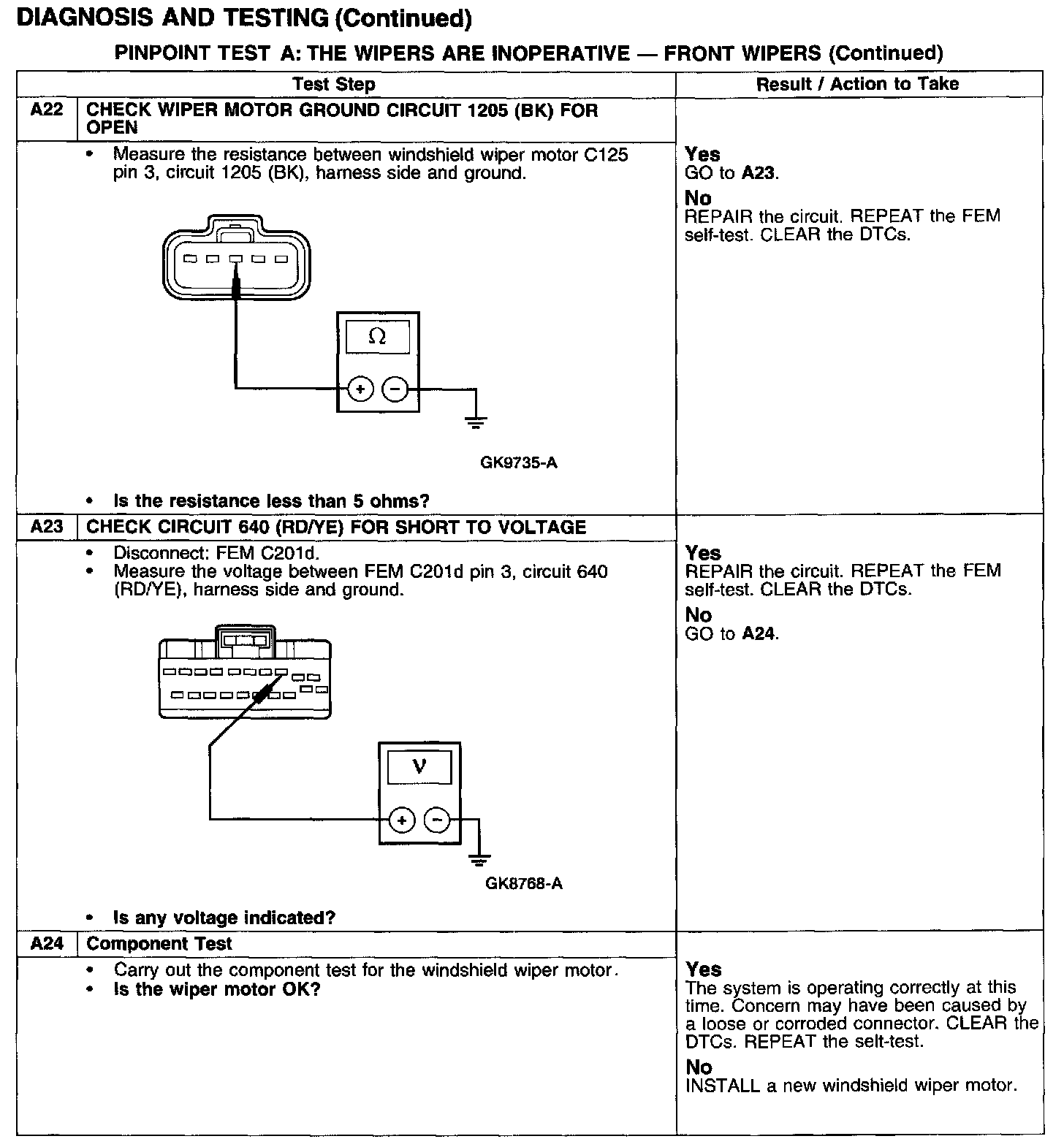

Test A22-A24:
