Wiper Motor Linkage: Service and Repair

MOUNTING ARM AND PIVOT SHAFT

REMOVAL
1. Remove the cowl top vent panel grille assembly (upper).







2. Disconnect the electrical connectors.

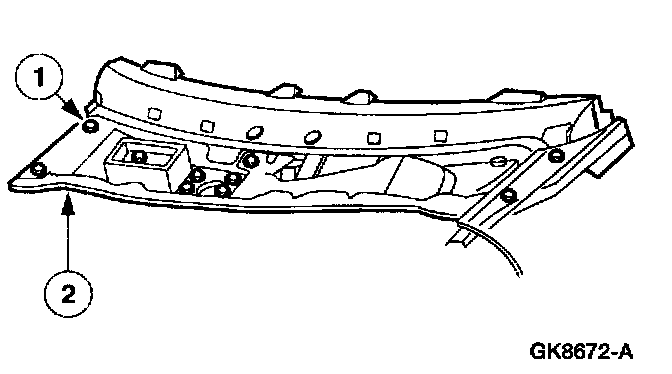

3. Remove the lower cowl top vent panel assembly.
1 Remove the 10 bolts.
2 Remove the lower cowl top vent panel assembly.

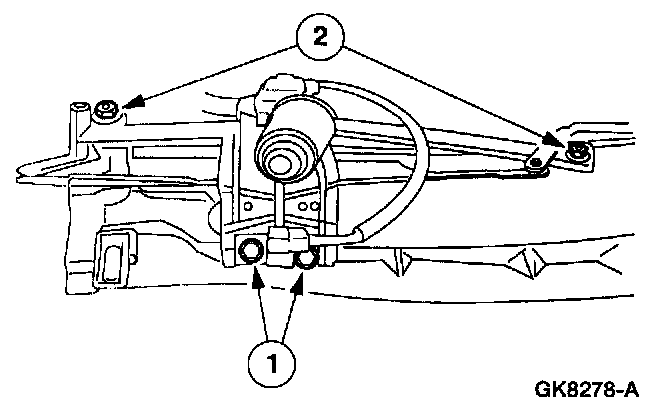

4. Remove the mounting arm and pivot shaft.
1 Remove the bolts.
2 Remove the nuts.

INSTALLATION

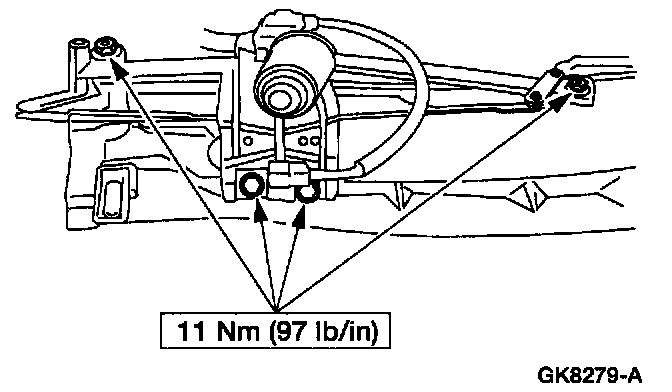

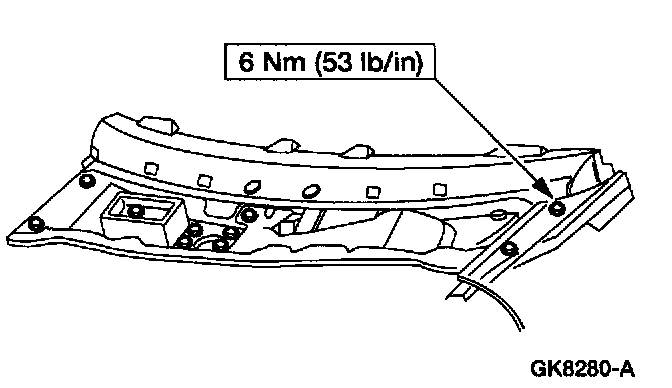

1. To install, reverse the removal procedure.
