Battery Tray

BATTERY TRAY

REMOVAL
1. Remove the battery.

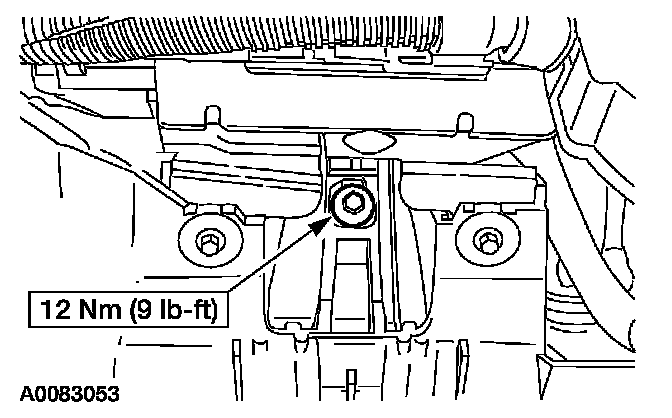

2. Remove the battery tray screw.

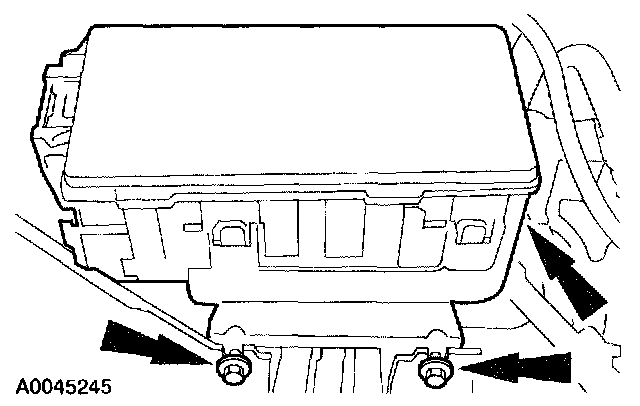

3. Loosen the screws and position the battery junction box aside.

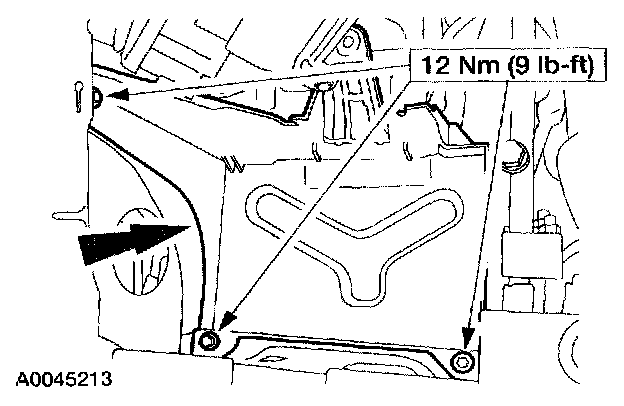

4. Remove the screws and the battery tray.

INSTALLATION
1. To install, reverse the removal procedure.
