Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2004 >> E 250 V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> General Specifications

General Specifications

General Specifications

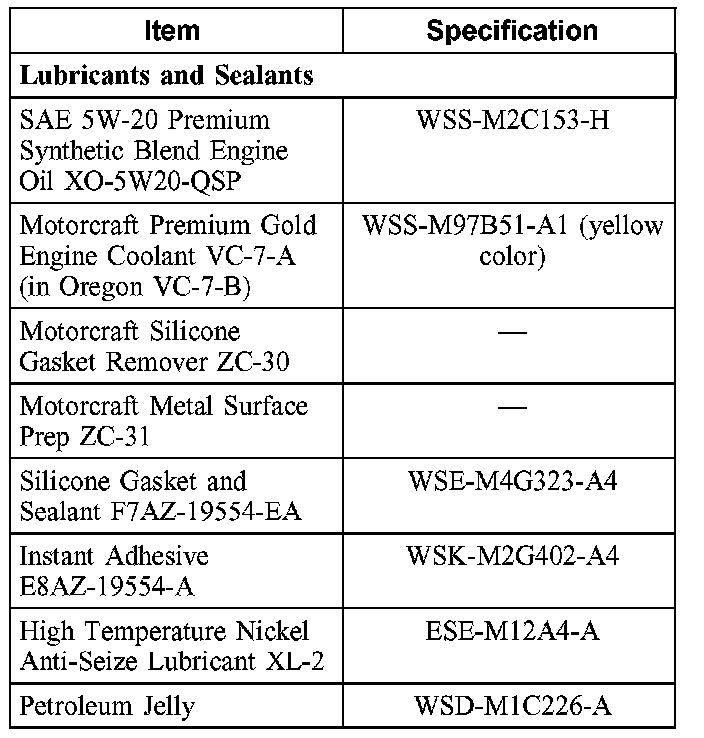

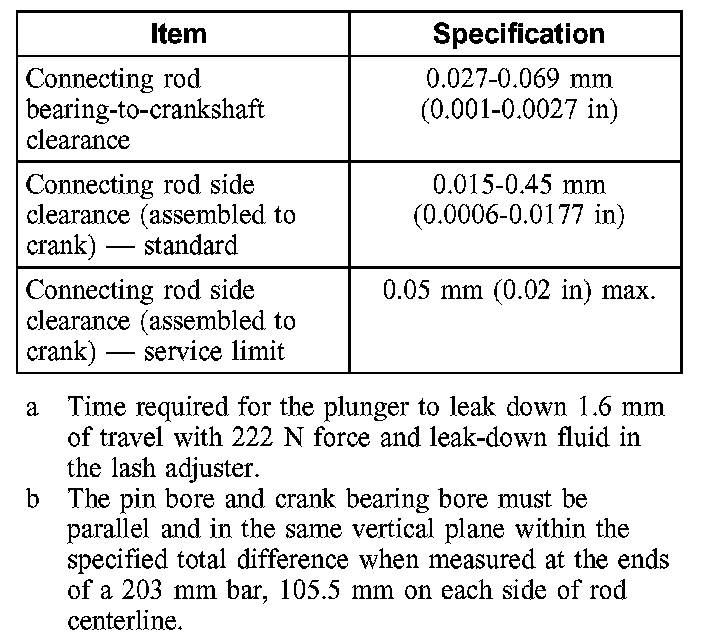

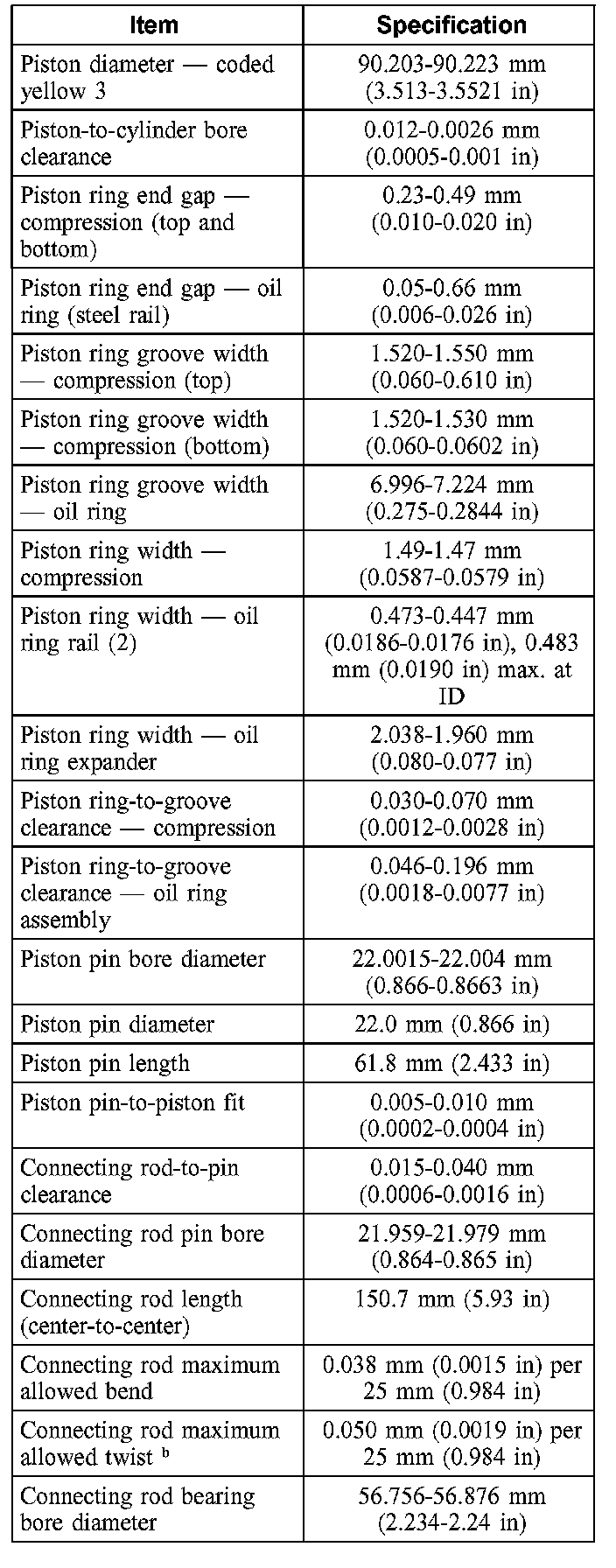

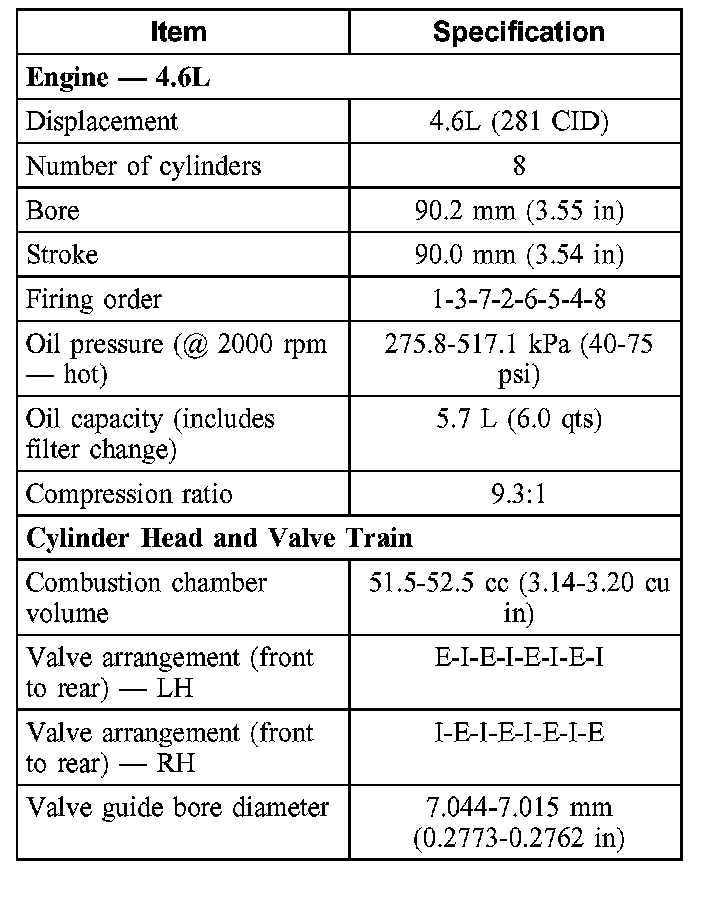

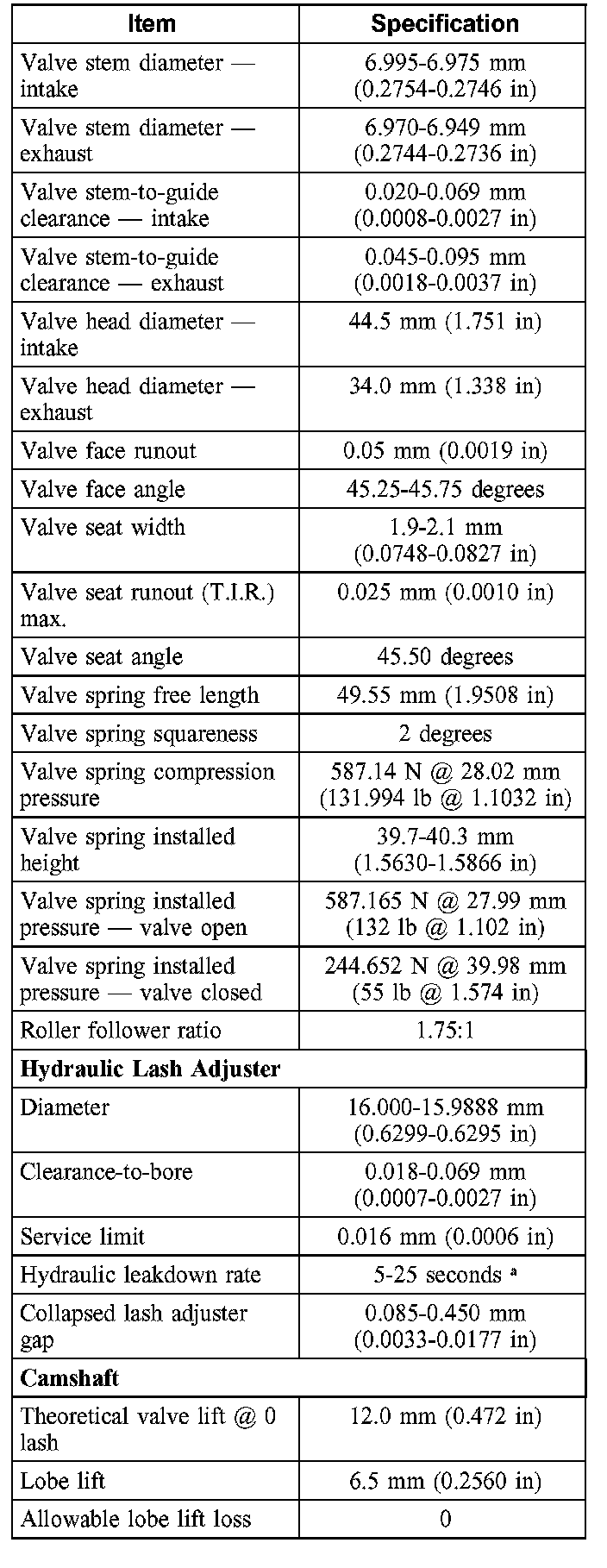

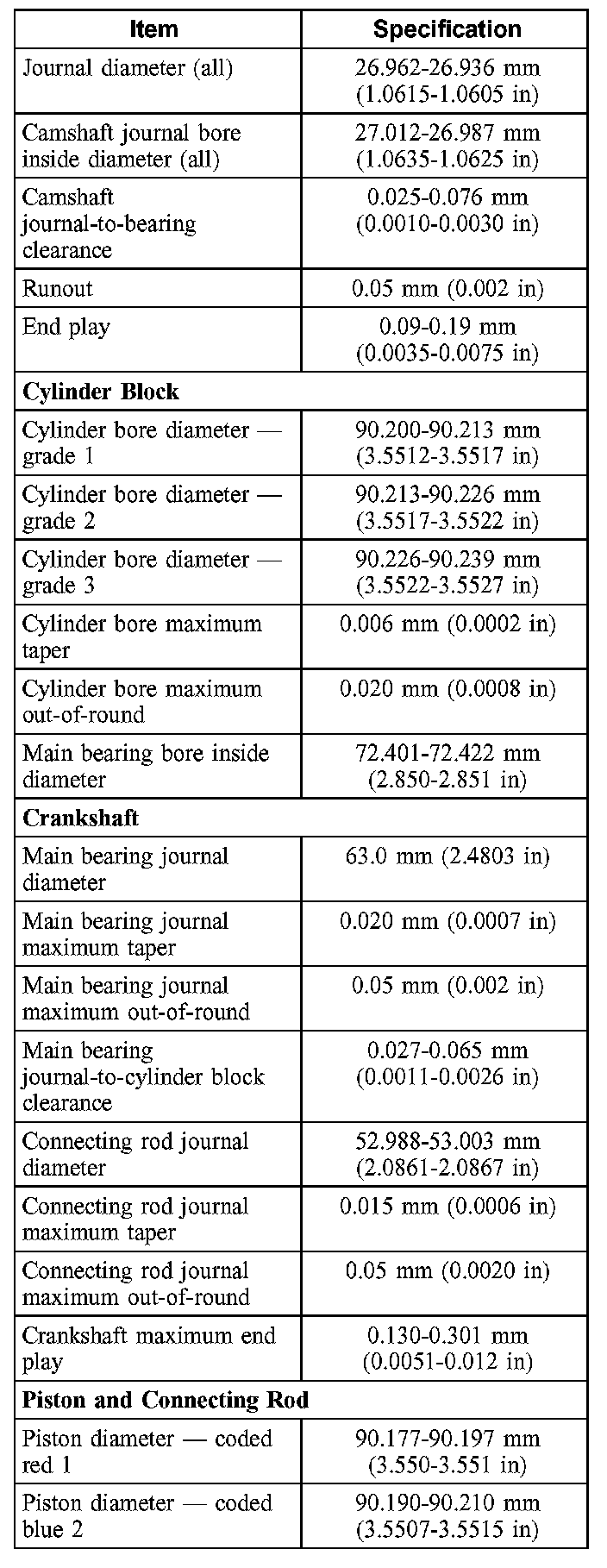

Part 1 Of 6:




Part 2 Of 6:




Part 3 Of 6:




Part 4 Of 6:




Part 5 Of 6:




Part 6 Of 6:
