Rocker Arm Assembly: Service and Repair

Camshaft Roller Follower

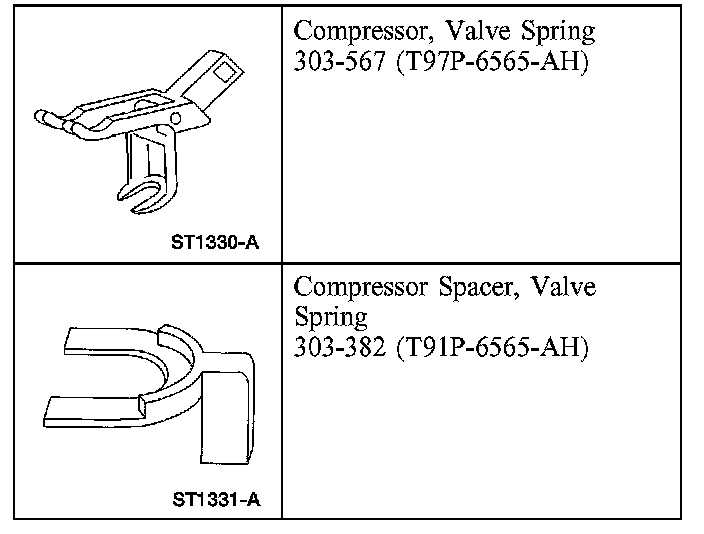

Special Tool(s)

Removal
1. Remove the valve cover (6582).

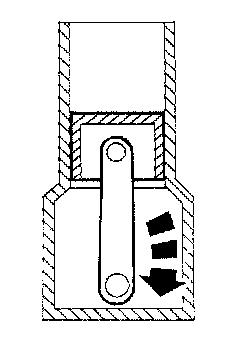

2. Position the piston (6108) of the cylinder being repaired at the bottom of the stroke.

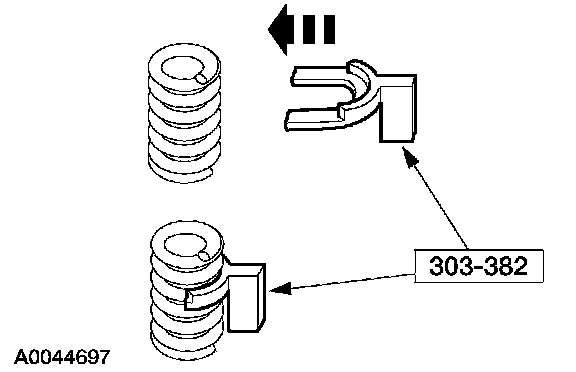

3. Install the special tool between the valve spring coils to prevent valve stem seal damage.





4. Use the special tool to compress the valve springs (6513) and remove the camshaft roller followers.

Installation





1. Install the camshaft roller followers.
1. Install the special tool.
2. Compress the valve spring.
3. Install the camshaft roller followers.

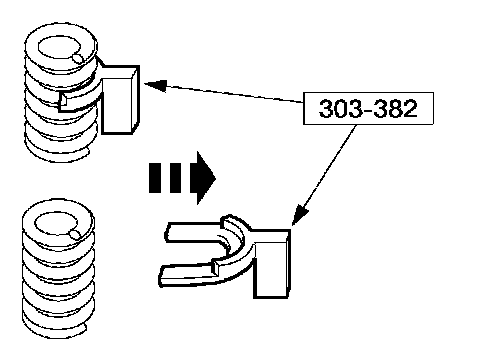

2. Remove the special tool.
3. Install the valve covers.
