Oil Pump: Service and Repair

Oil Pump

Removal
1. Remove the crankshaft sprocket (6306).
2. Remove the oil pan.





3. CAUTION: The oil pump must be primed prior to starting the engine.

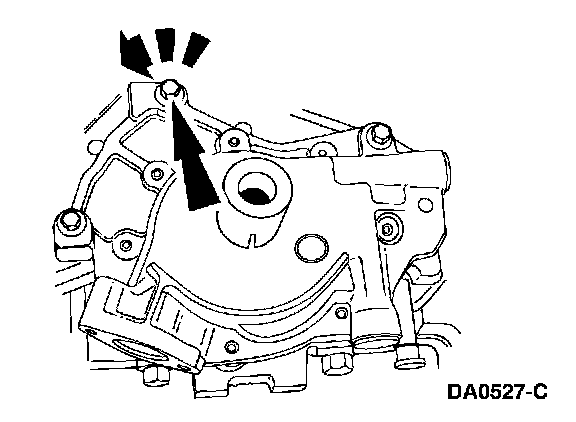

Remove the bolts and the oil pump.

Installation
1. Clean and inspect the mating surfaces.

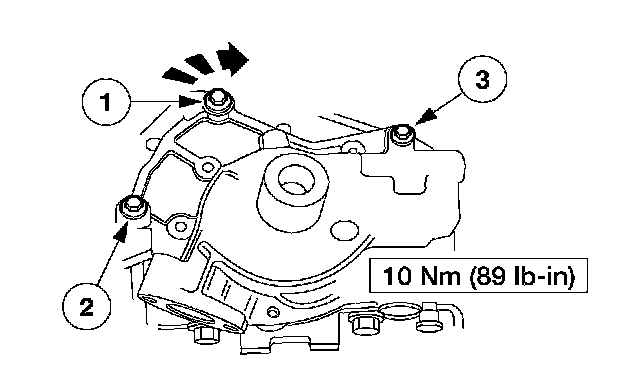

2. Position the oil pump, and install the bolts loosely. Tighten the bolts in the sequence shown.

3. CAUTION: The oil pump must be primed prior to starting the engine.

Install the oil pan.
4. Install the crankshaft sprocket.
