Drive Belt: Service and Repair

Accessory Drive

Removal


1. Rotate the drive belt tensioner clockwise and remove the drive belt.


Installation


1. To install, reverse the removal procedure.

4.6L, 5.4L, 6.8L With A/C:

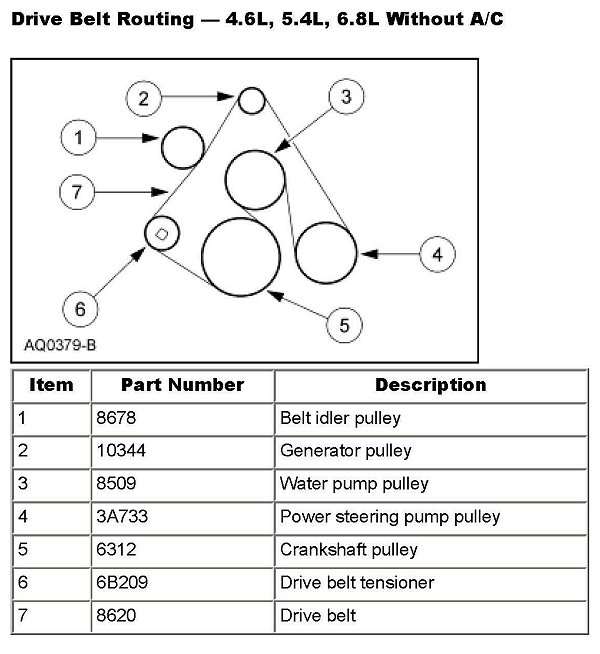

4.6L, 5.4L, 6.8L Without A/C:

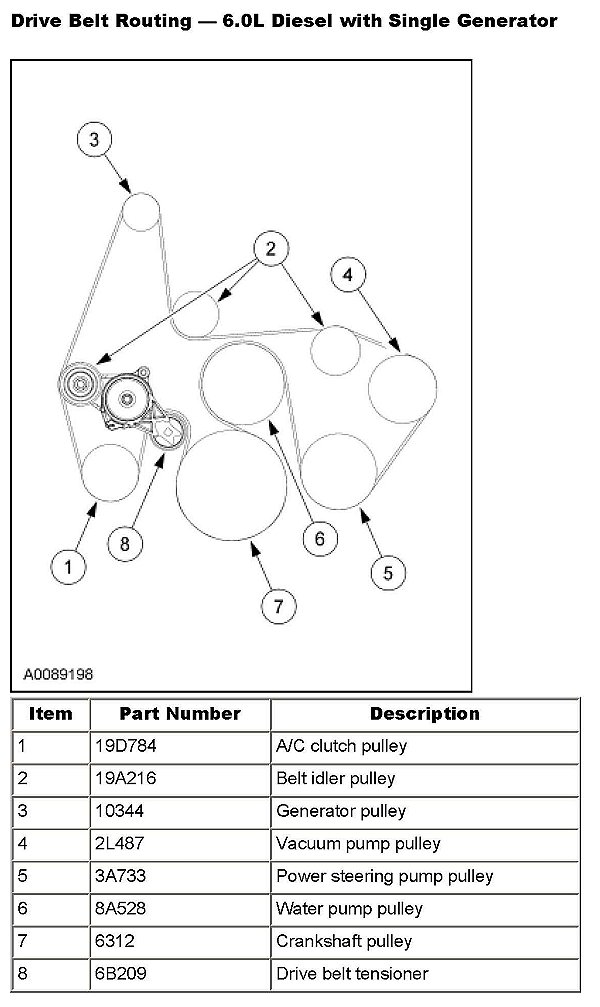

6.0L Diesel With Single Generator:

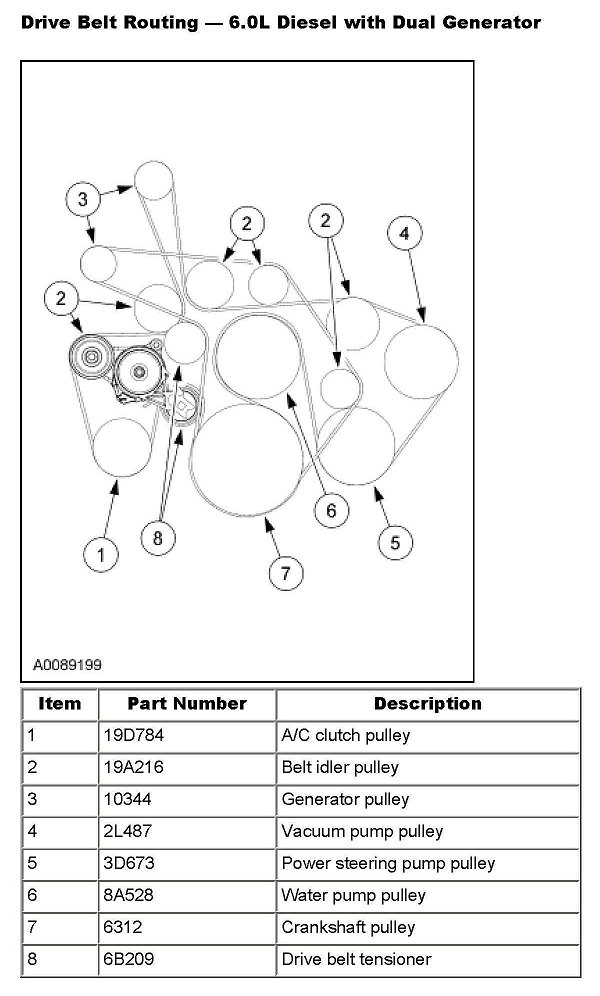

6.0L Diesel With Dual Generator:
