Test A

PINPOINT TEST A: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

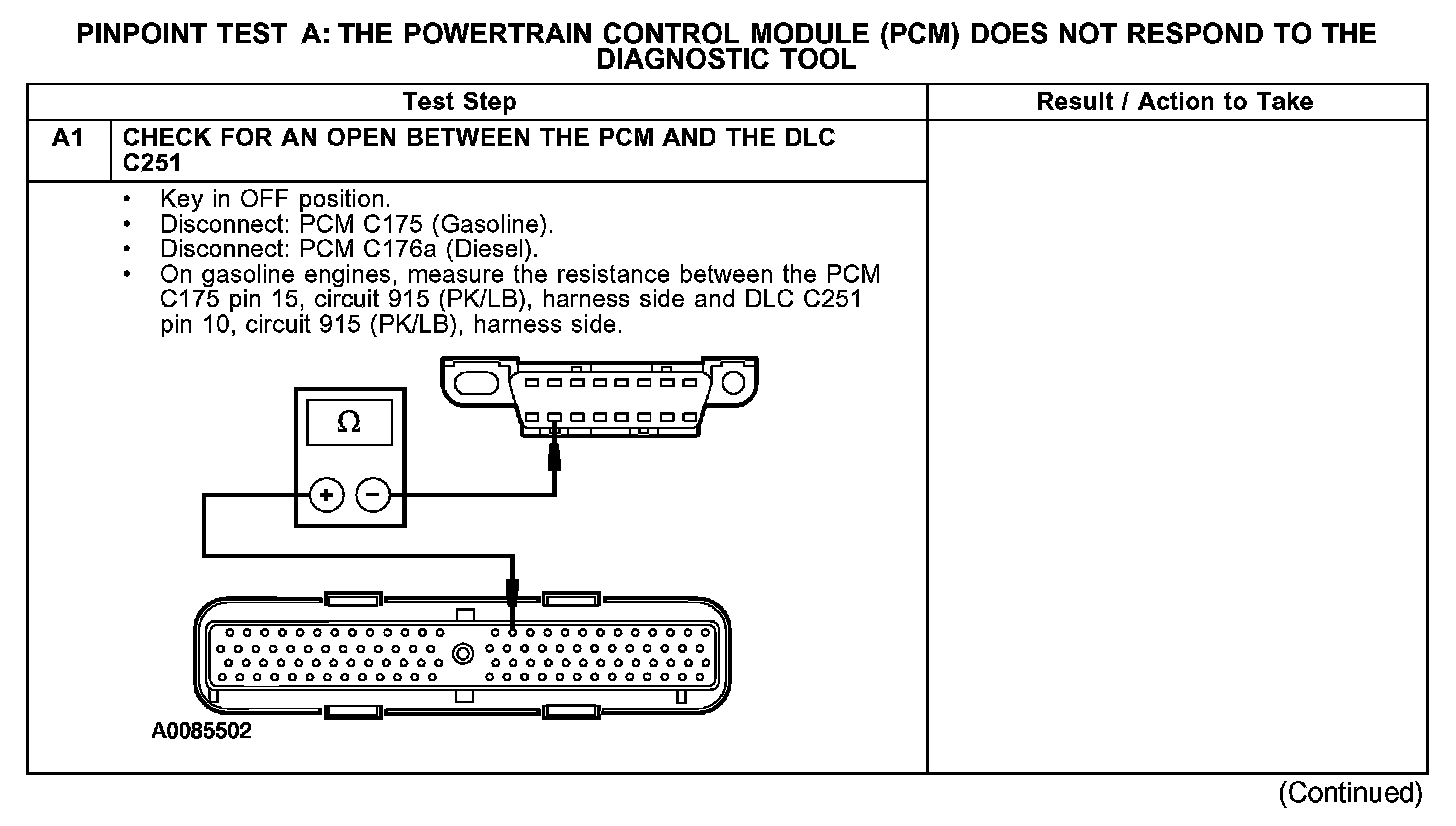

Test A1:






Test A1 Continued:

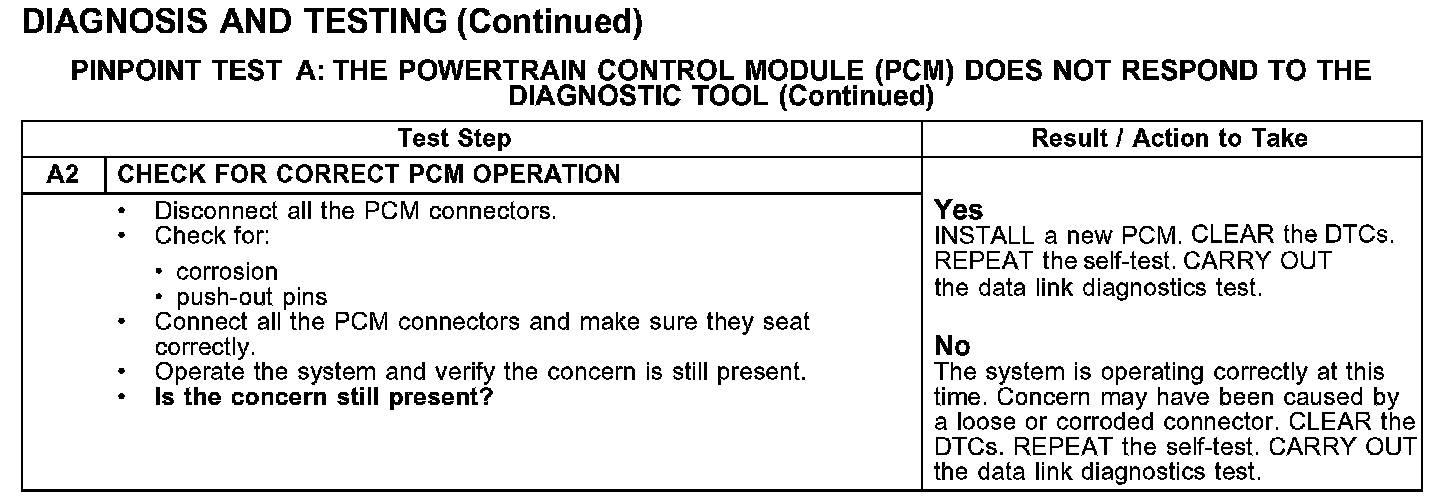

Test A2:
