Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

REMOVAL
1. Remove the catalytic converter.

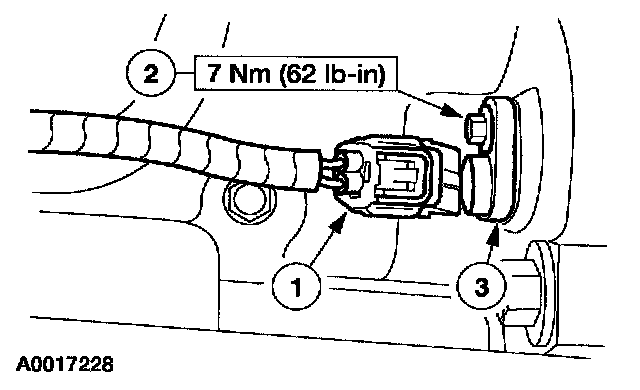

2. Remove the crankshaft position (CKP) sensor.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Remove the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
