Test B

PINPOINT TEST B: THE RESTRAINT CONTROL MODULE (RCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

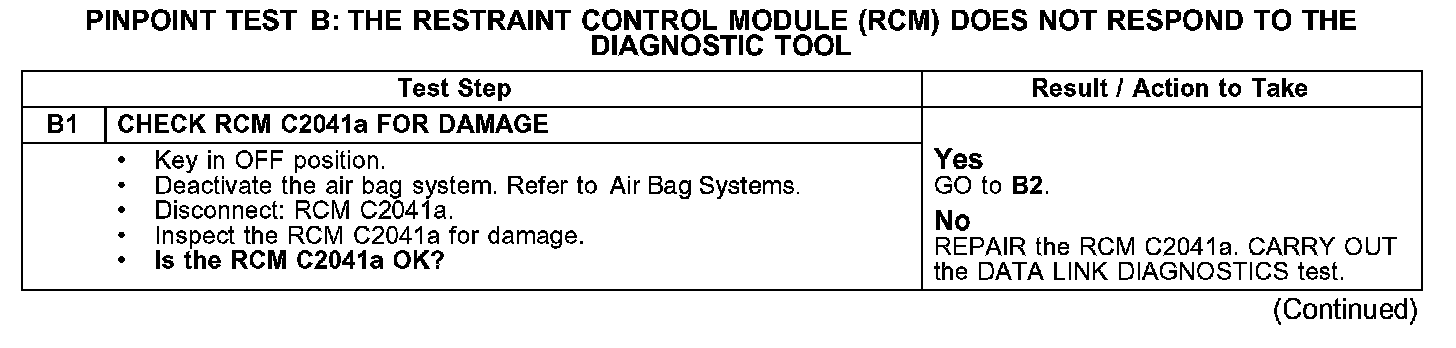

Test B1:

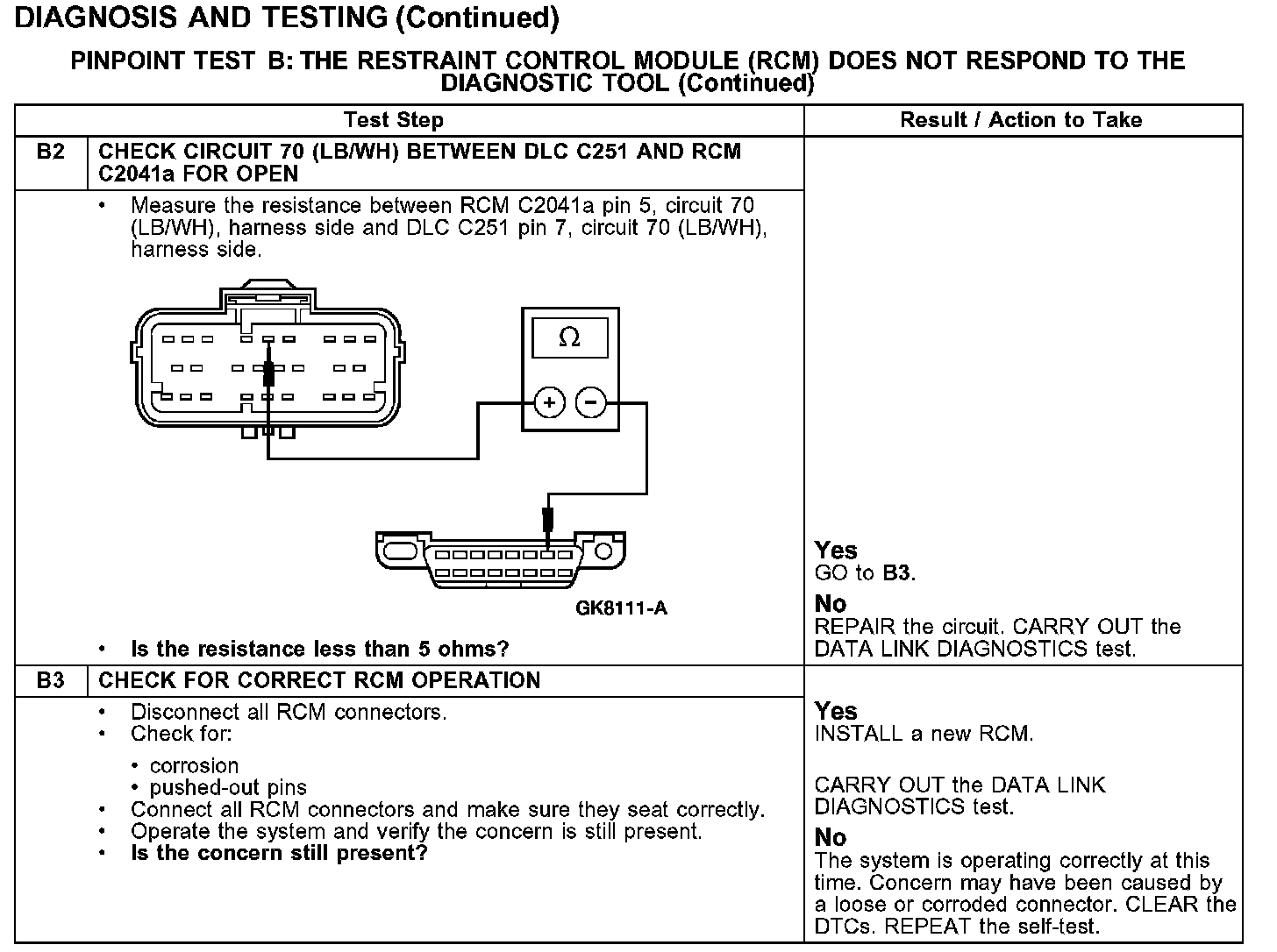

Test B2-B3:
