Torque

Torque Specifications

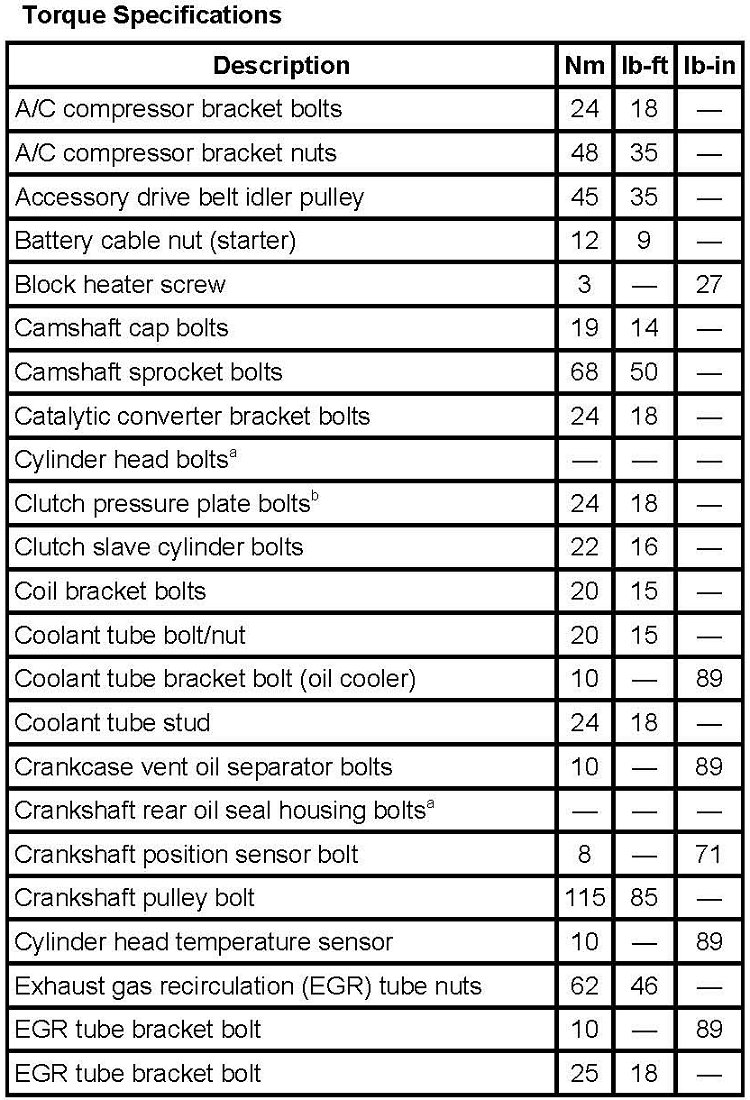

Torque Specifications (1 Of 4):

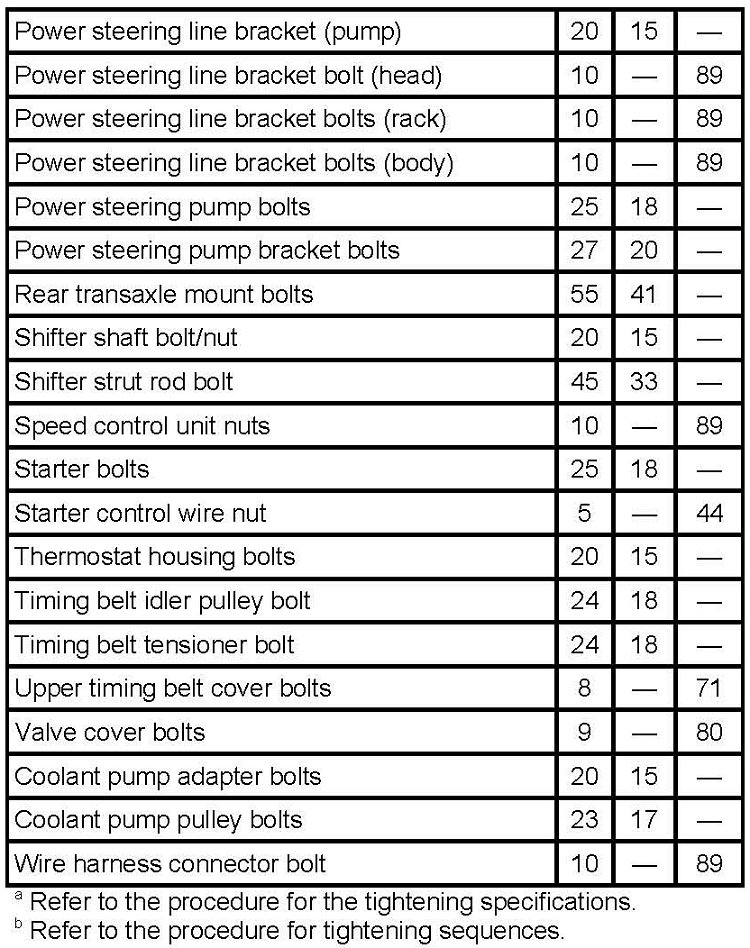

Torque Specifications (2 Of 4):

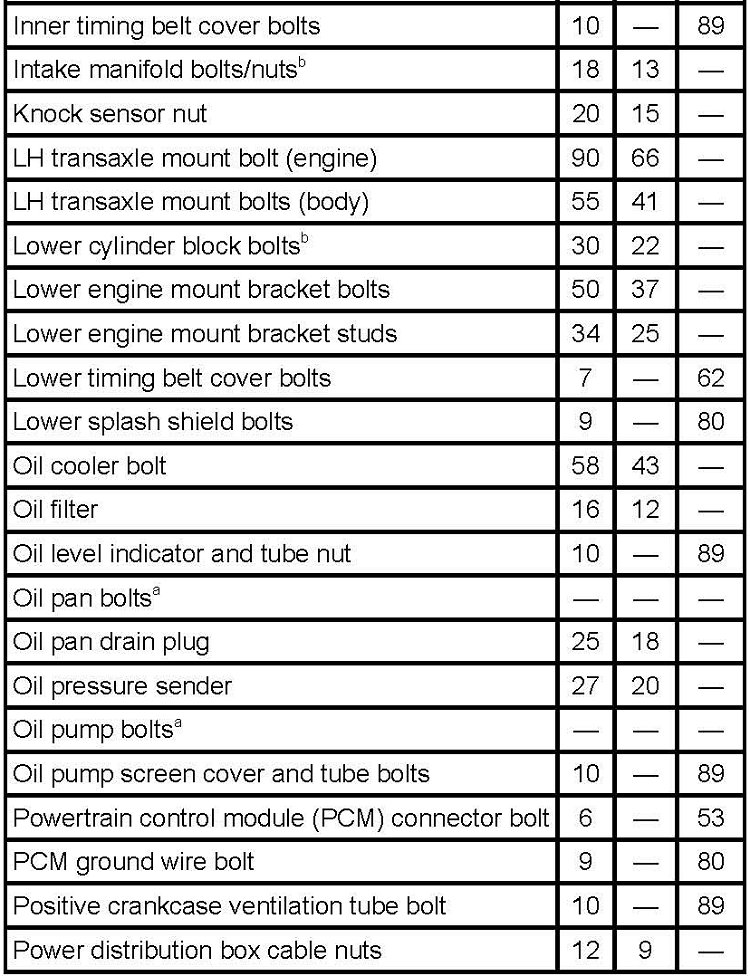

Torque Specifications (3 Of 4):

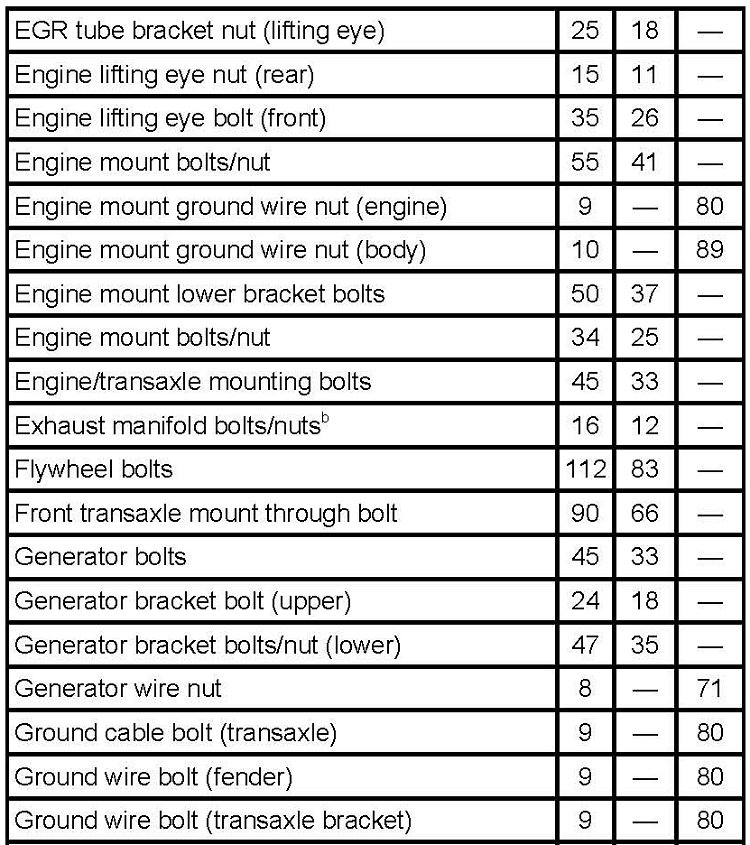

Torque Specifications (4 Of 4):

Cylinder Head Torque Specifications

CAUTION: The bolts are torque-to-yield, new bolts must be installed or engine damage can occur.

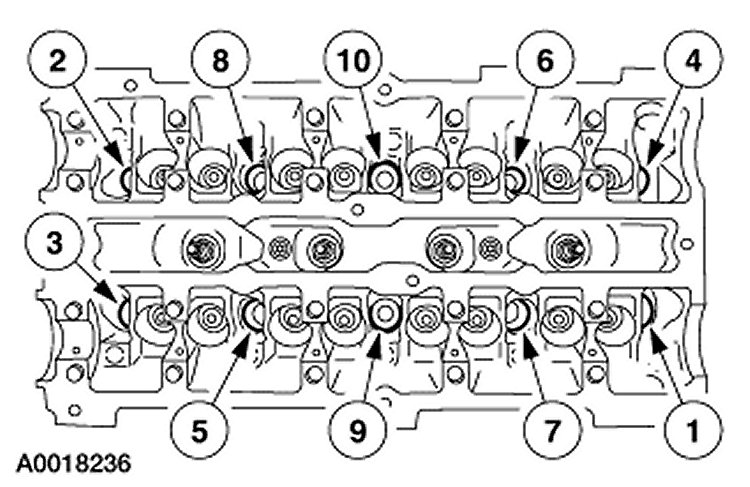

Install the cylinder head and tighten the bolts in three stages using the sequence shown:

^ Stage 1: Tighten the bolts to 20 Nm (15 ft. lbs.).
^ Stage 2: Tighten the bolts to 40 Nm (30 ft. lbs.).
^ Stage 3: Tighten the bolts an additional 90 degrees.
