Air Duct: Service and Repair

REAR FOOTWELL DUCT

Removal
1. Remove the driver and front passenger seats.

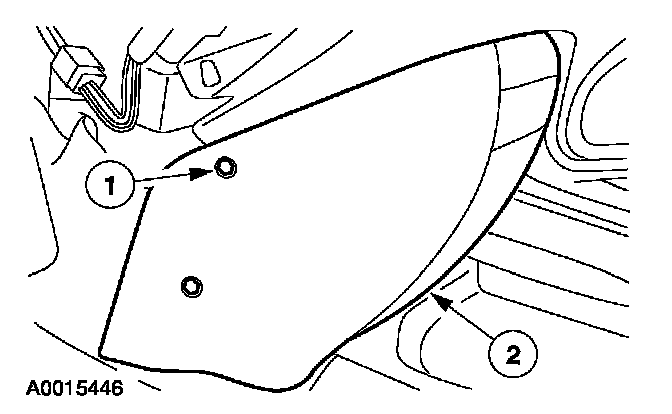

2. Remove the utility compartment.
1 Remove the four plastic fasteners.
2 Remove the utility compartment.
- Disconnect the electrical connection.

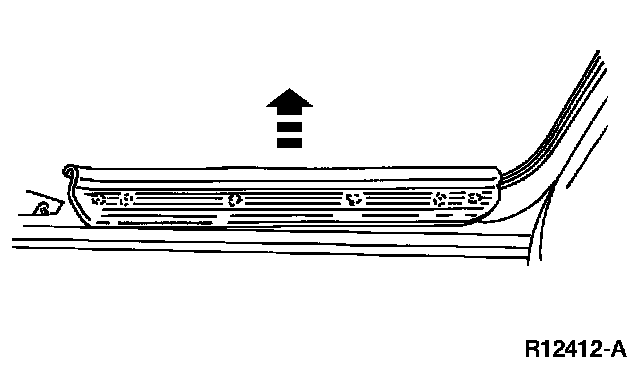

3. Remove LH and RH front door scuff plates.
4. Remove LH and RH lower A-pillar panels.

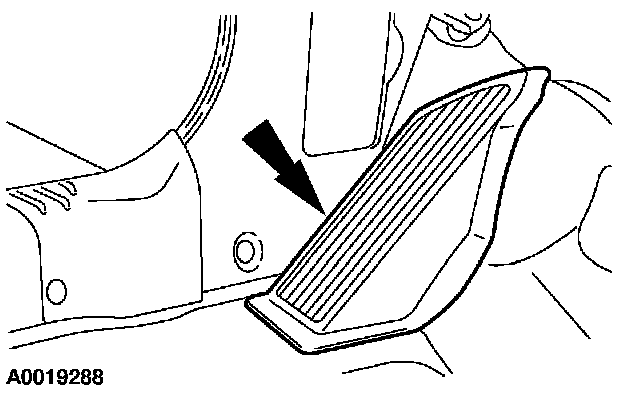

5. Remove the LH foot rest.
6. Pull back the carpet to gain access to the rear floor vent.

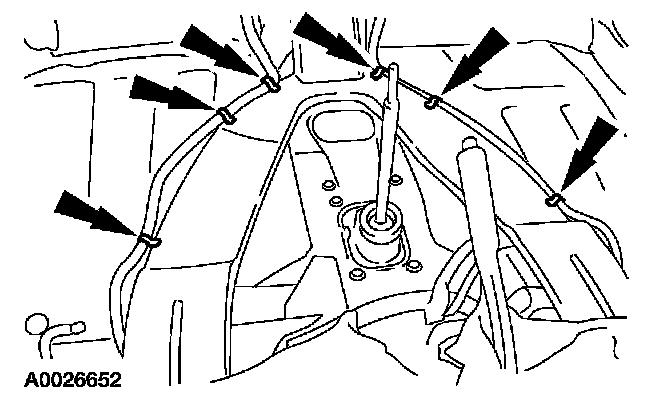

7. Remove the wire harness pin-type retainer.
8. Remove the floor duct pin-type retainers and remove the duct.

Installation
1. To install, reverse the removal procedure.

DEFROSTER DUCT

Removal
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation







2. Remove the screws and the retaining guides.

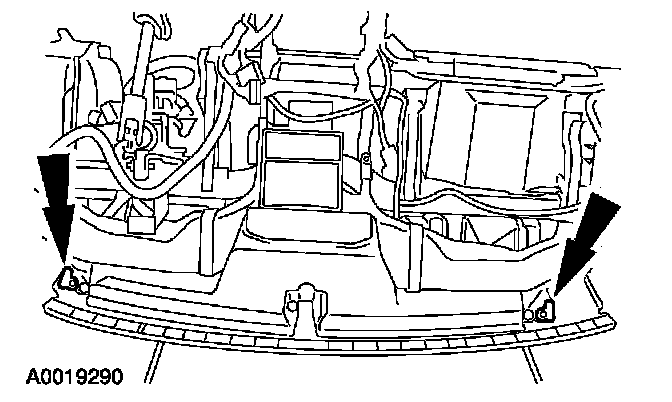

3. Remove the screws and remove the duct.

Installation
1. To install, reverse the removal procedure.

CENTER REGISTER DUCT

Removal
1. Remove the defroster duct.

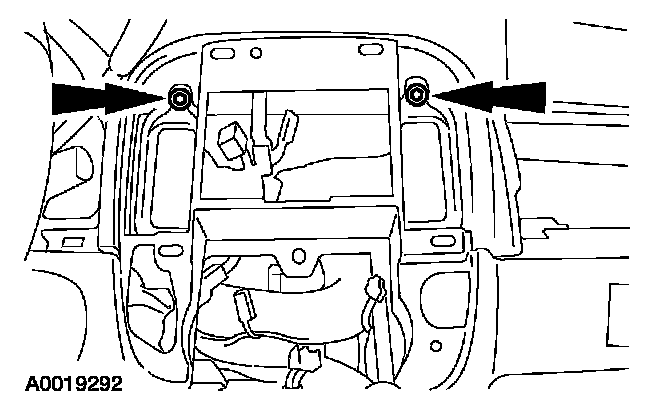

2. Remove the screws from the front side of the instrument panel.

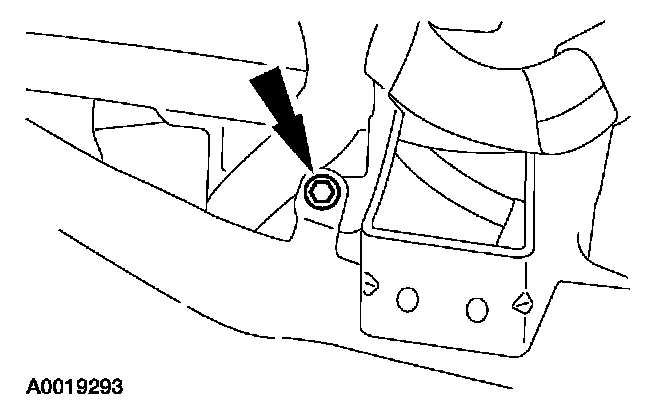

3. Remove the screw for the left vent duct.

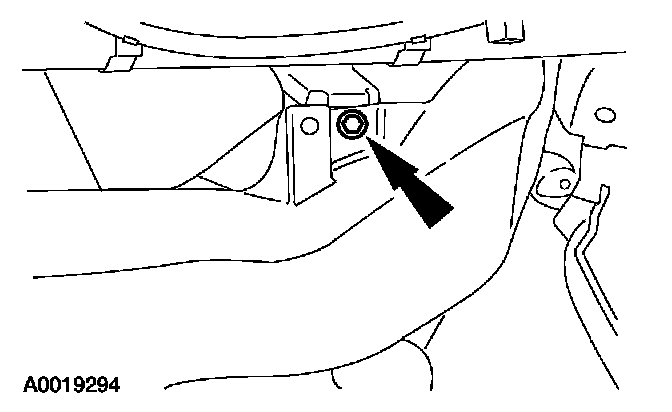

4. Remove the screw for the right vent duct.

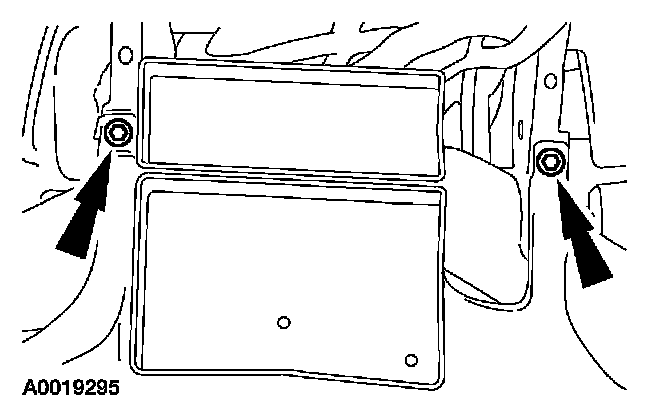

5. Remove the screws for the center vent duct and remove the vent duct.

Installation
1. To install, reverse the removal procedure.
