Drive Belt: Locations

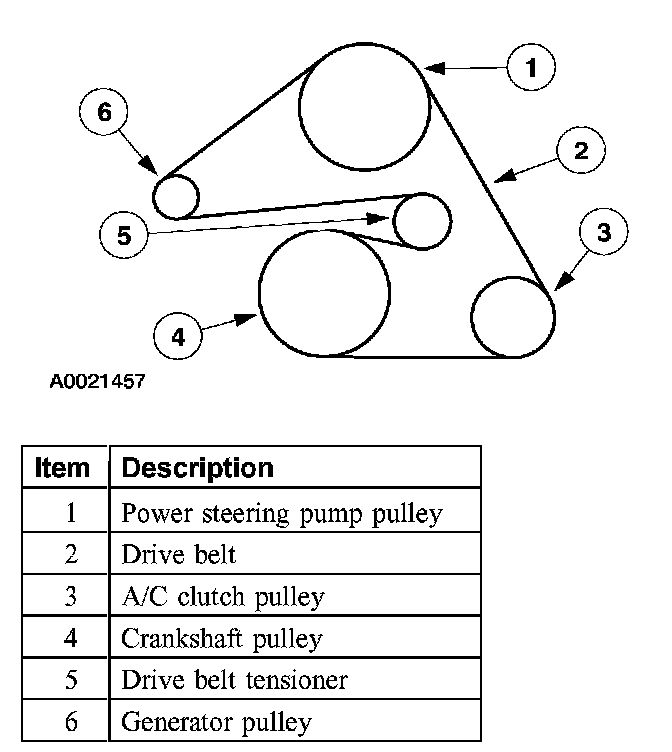

With A/C:

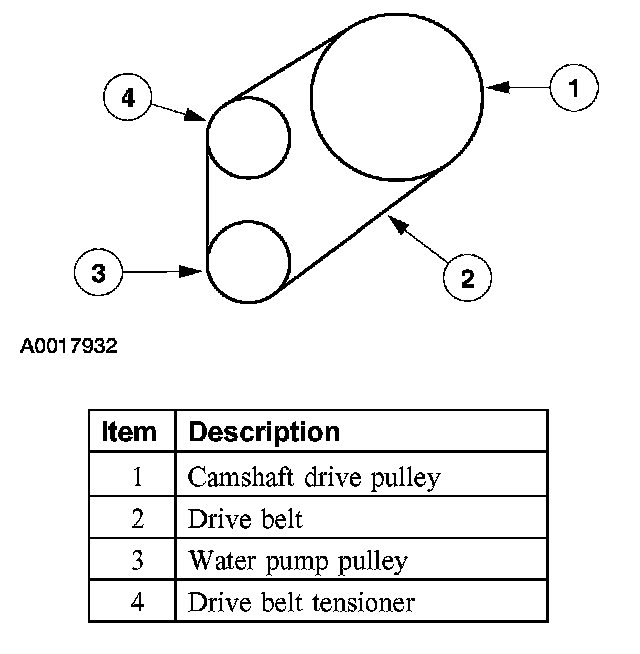

Water Pump Drive Belt with Tensioner:

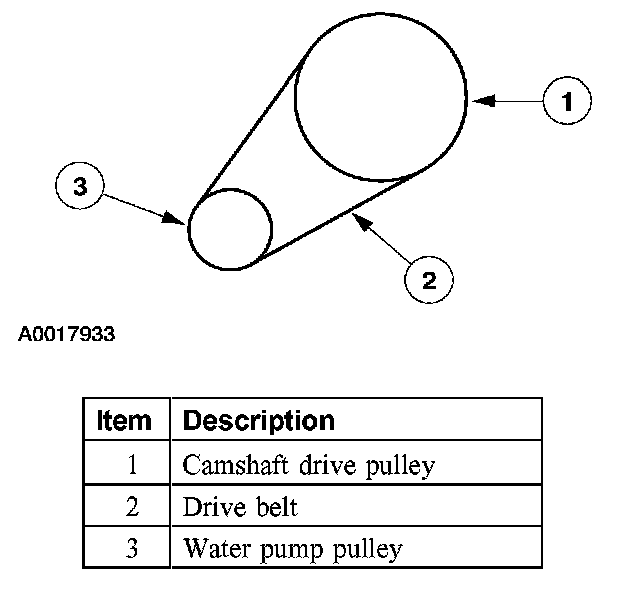

Water Pump Drive Belt without Tensioner:
