Drive Belt: Diagrams

Accessory Drive

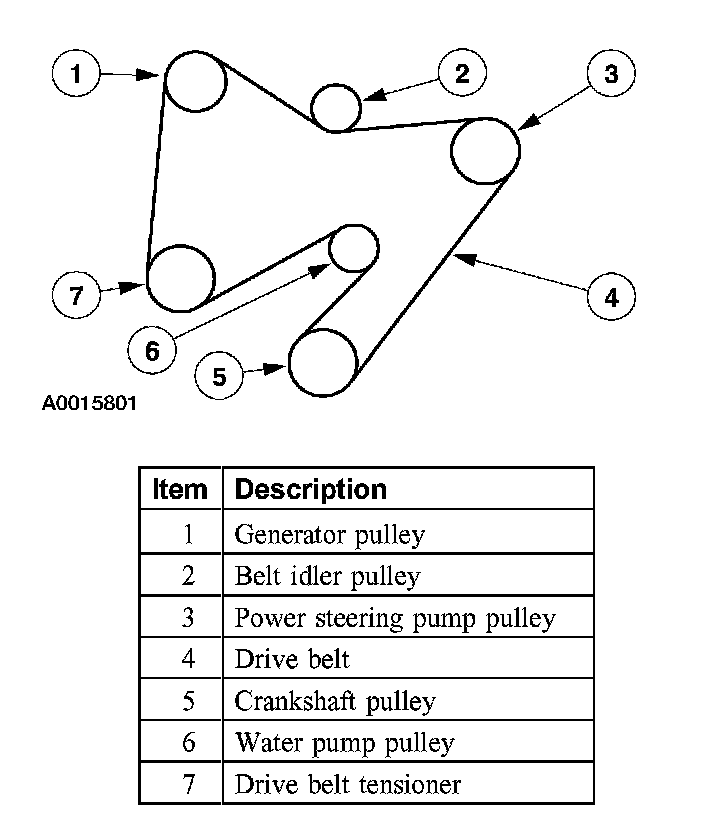

Zetec without A/C:

2.0L Zetec without A/C

Zetec with A/C (Part 1 Of 2):

Zetec with A/C (Part 2 Of 2):

2.0L Zetec with A/C

With A/C:

3.0L (4V) with A/C

Water Pump Drive Belt with Tensioner:

Water Pump Drive Belt - 3.0L (4V) with Tensioner

Water Pump Drive Belt without Tensioner:

Water Pump Drive Belt - 3.0L (4V) without Tensioner
