Removal and Installation

DUCT - FLOOR

REMOVAL
1. Remove the plenum chamber.

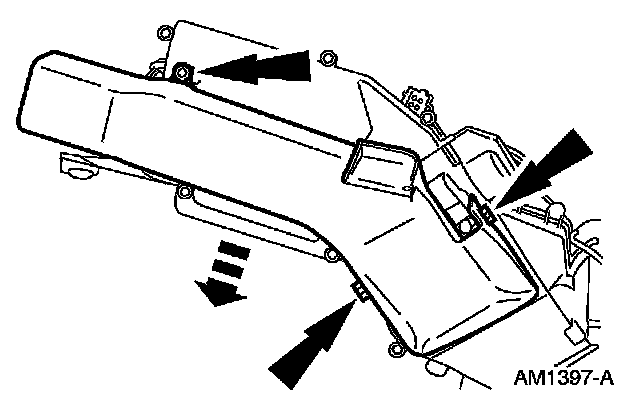

2. Remove the three screws and remove the heater outlet floor duct.

INSTALLATION
1. To install, reverse the removal procedure.

DUCT - EXTENSION

REMOVAL

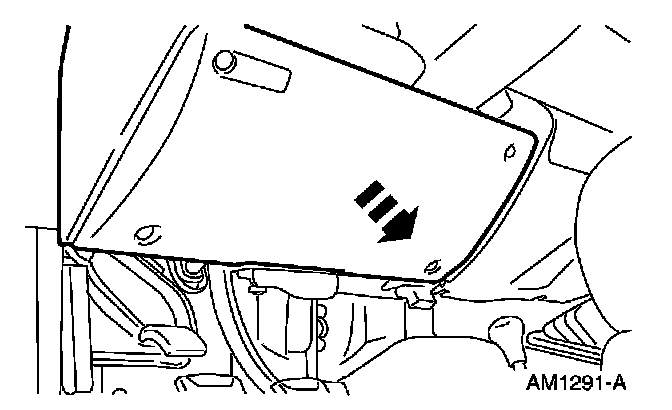

1. Remove the steering column cover.

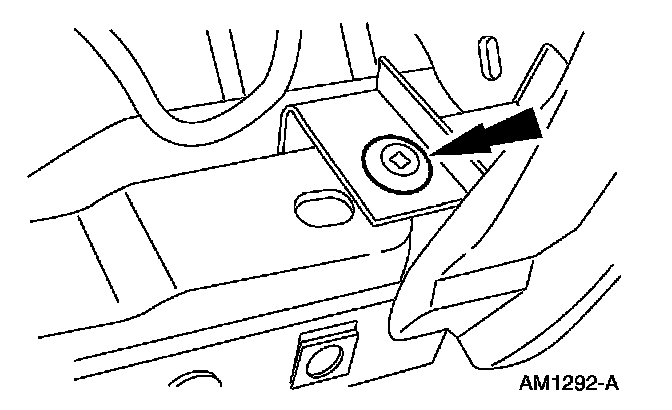

2. Remove the screw.

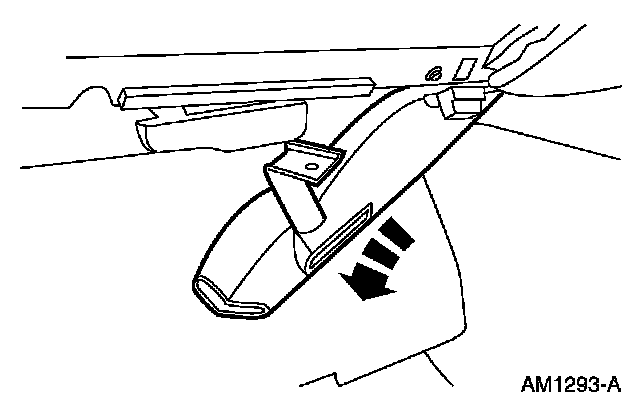

3. Remove the extension duct.

INSTALLATION
1. To install, reverse the removal procedure.
