Test J

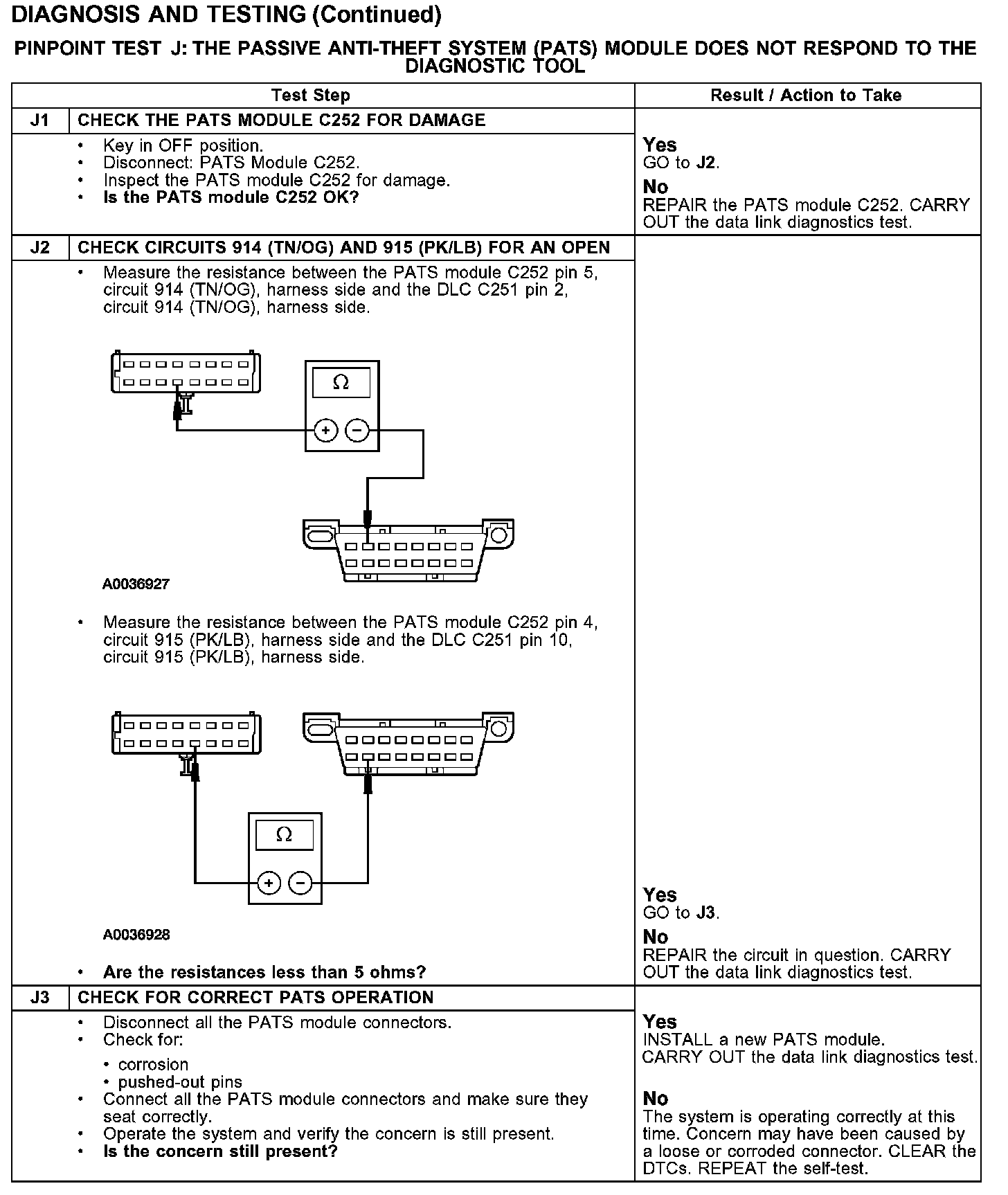

PINPOINT TEST J: THE PASSIVE ANTI-THEFT SYSTEM (PATS) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL


Test J1-J3:
