EGR Tube: Service and Repair

EXHAUST MANIFOLD TO EXHAUST GAS RECIRCULATION (EGR) VALVE TUBE

REMOVAL
1. Remove the air cleaner outlet tube.

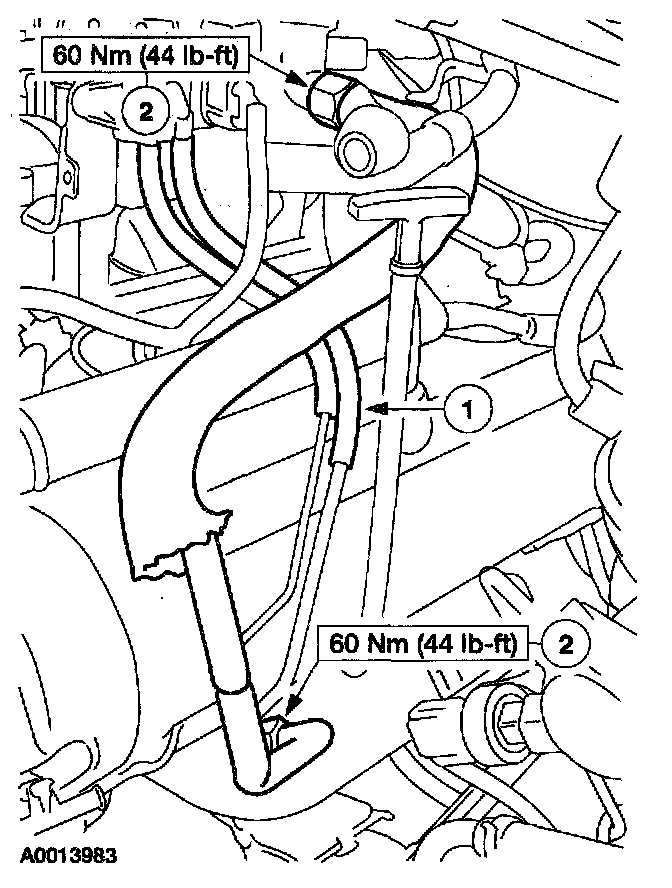

2. Remove the exhaust gas recirculation (EGR) valve-to-exhaust manifold tube.
1 Remove the two differential pressure feedback EGR sensor hoses.
2 Disconnect the EGR valve tube fittings.

INSTALLATION
1. To install, reverse the removal procedure.
