Flex Plate: Service and Repair

Flexplate - Automatic Transmission

Removal
1. Remove the transmission.





2. Remove the bolts.

Installation

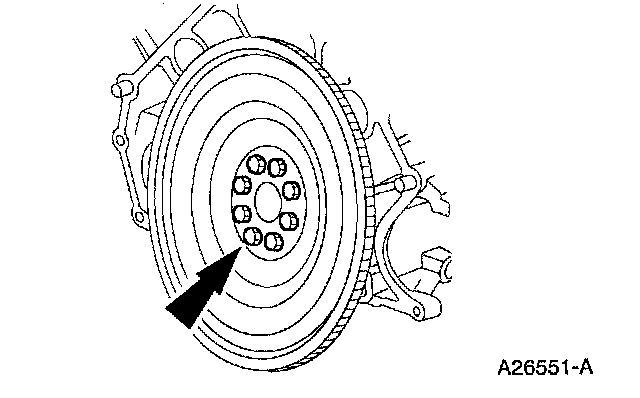

1. Position the flexplate and loosely install the bolts. Tighten the bolts in sequence shown.
2. Install the transmission.
