Test E

PINPOINT TEST E: A SINGLE/MORE THAN ONE DOOR LOCK IS INOPERATIVE


Test E1-E3:






Test E4-E5:






Test E6-E8:






Test E8-E10:






Test E10-E11:






Test E12-E14:

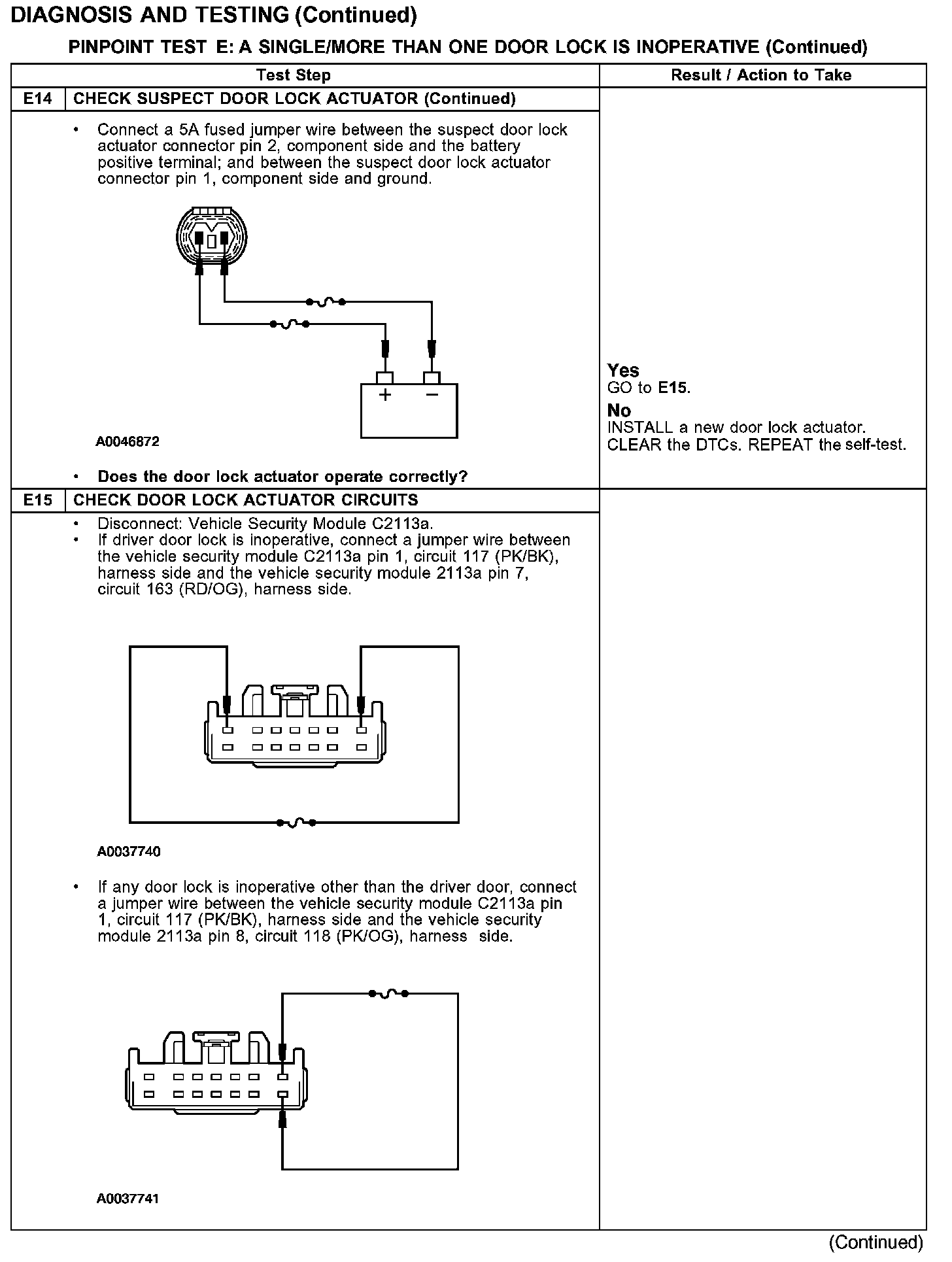

Test E14-E15:






Test E15-E16:
