Band and Clutch Application Charts

Band and Clutch Application Charts

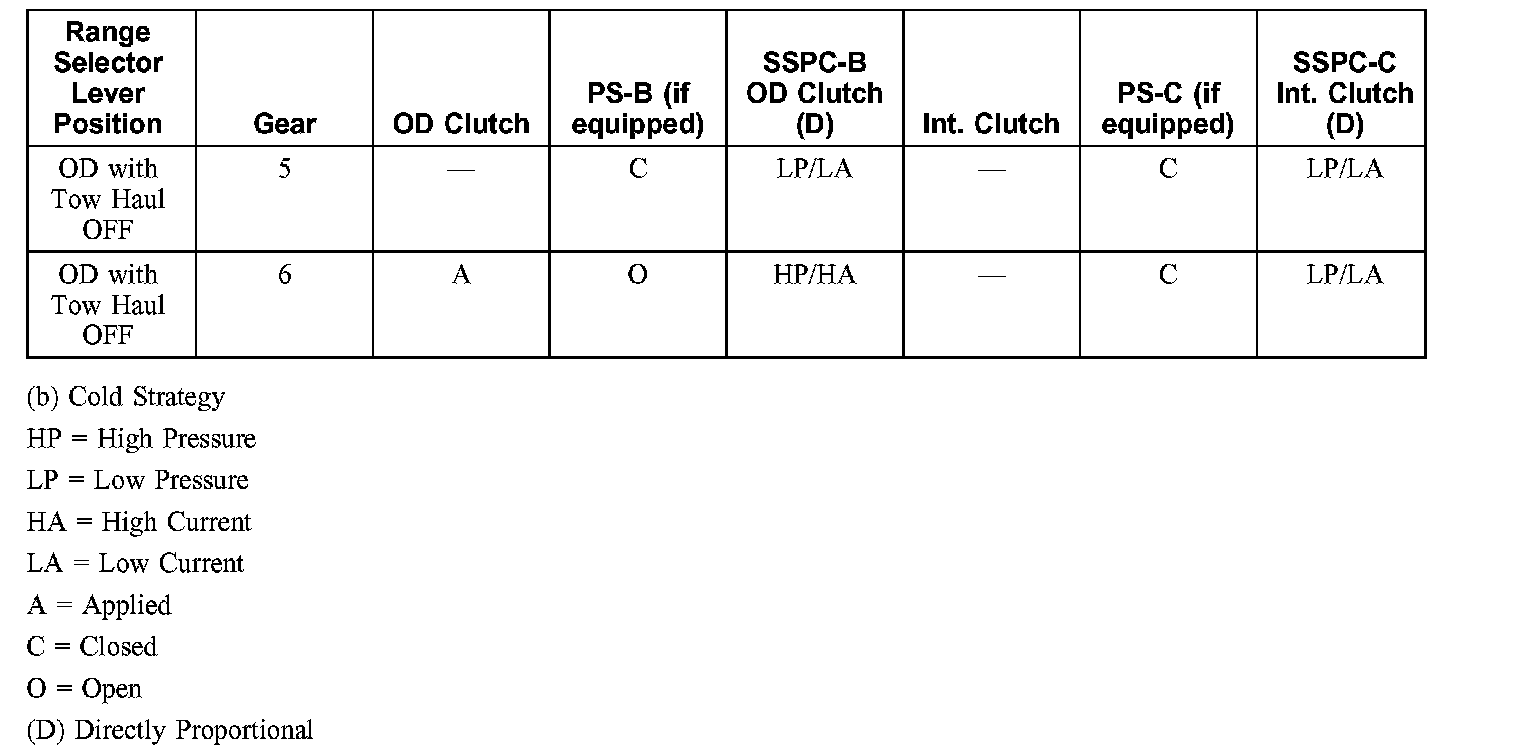

Band, Clutch, Solenoid, Switch Application Chart (A)

NOTE: The pressure switches listed in the band, clutch, solenoid, switch application chart will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.








Band, Clutch, Solenoid, Switch Application Chart (B)

NOTE: The pressure switches listed in the band, clutch, solenoid, switch application chart will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.








Band, Clutch, Solenoid, Switch Application Chart (C)

NOTE: The pressure switches listed in the band, clutch, solenoid, switch application chart will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.








Band, Clutch, Solenoid, Switch Application Chart (D)

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.





Band, Clutch, Solenoid, Switch Application Chart (E)

NOTE: The pressure switches listed in the band, clutch, solenoid, switch application chart will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.





Band, Clutch, Solenoid, Switch Application Chart (F)

NOTE: The pressure switches listed in the band, clutch, solenoid, switch application chart will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.





Band, Clutch, Solenoid, Switch Application Chart (G)

NOTE: The pressure switches listed in the band, clutch, solenoid, switch application chart will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.





Band, Clutch, Solenoid, Switch Application Chart (H)

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.








Band, Clutch, Solenoid, Switch Application Chart (I)

NOTE: The pressure switches listed in the band, clutch, solenoid, switch application chart will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.





Band, Clutch, Solenoid, Switch Application Chart (J)

NOTE: The pressure switches listed in the band, clutch, solenoid, switch application chart will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.





Band, Clutch, Solenoid, Switch Application Chart (K)

NOTE: The pressure switches listed in the band, clutch, solenoid, switch application chart will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.





Band, Clutch, Solenoid, Switch Application Chart (L)

NOTE: The PTO may operate in any gear including PARK and NEUTRAL, does not require OD OWC. The TCC may engage in PARK and NEUTRAL with PTO engaged.
