Test F

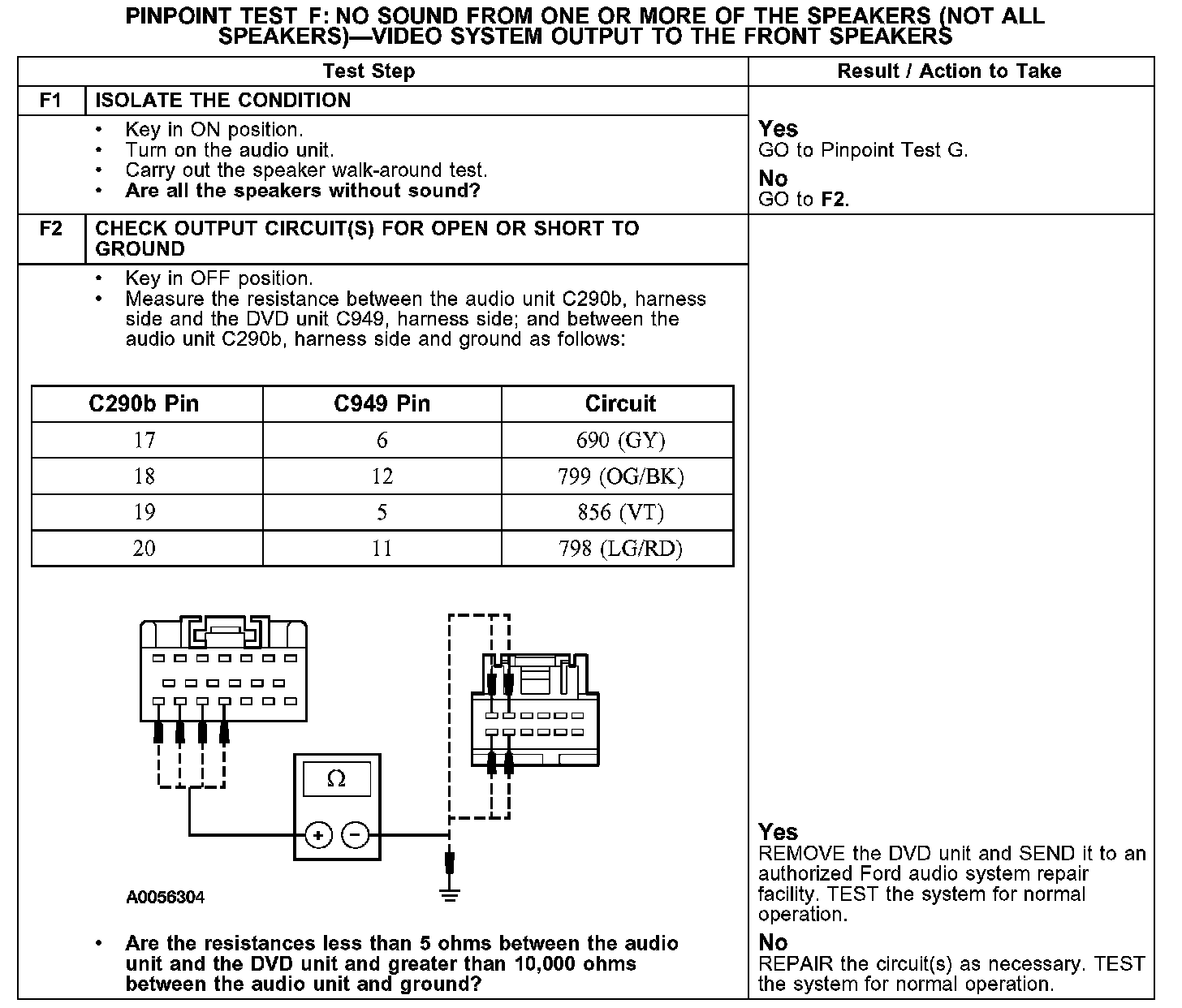

PINPOINT TEST F: NO SOUND FROM ONE OR MORE OF THE SPEAKERS (NOT ALL SPEAKERS) - VIDEO SYSTEM OUTPUT TO THE FRONT SPEAKERS
Test F1-F2:
