Register

REGISTER

REMOVAL

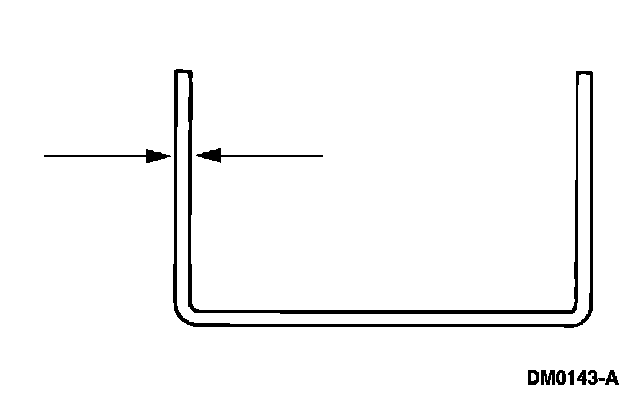

1. Fabricate a removal tool from a 1/8-inch diameter rod.

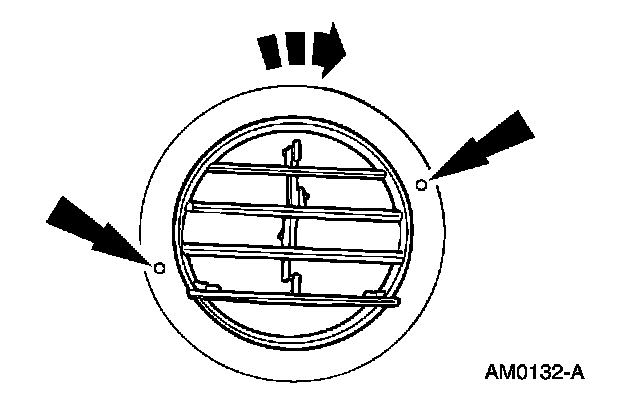

2. Rotate the A/C register with the removal tool to align the retaining ears with the clearance openings and remove the A/C register.

INSTALLATION
1. To install, reverse the removal procedure.
