Home >> Ford >> 2004 >> Excursion 4WD V10-6.8L VIN S >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test S

Test S

PINPOINT TEST S: THE STEERING WHEEL CONTROL SWITCH IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

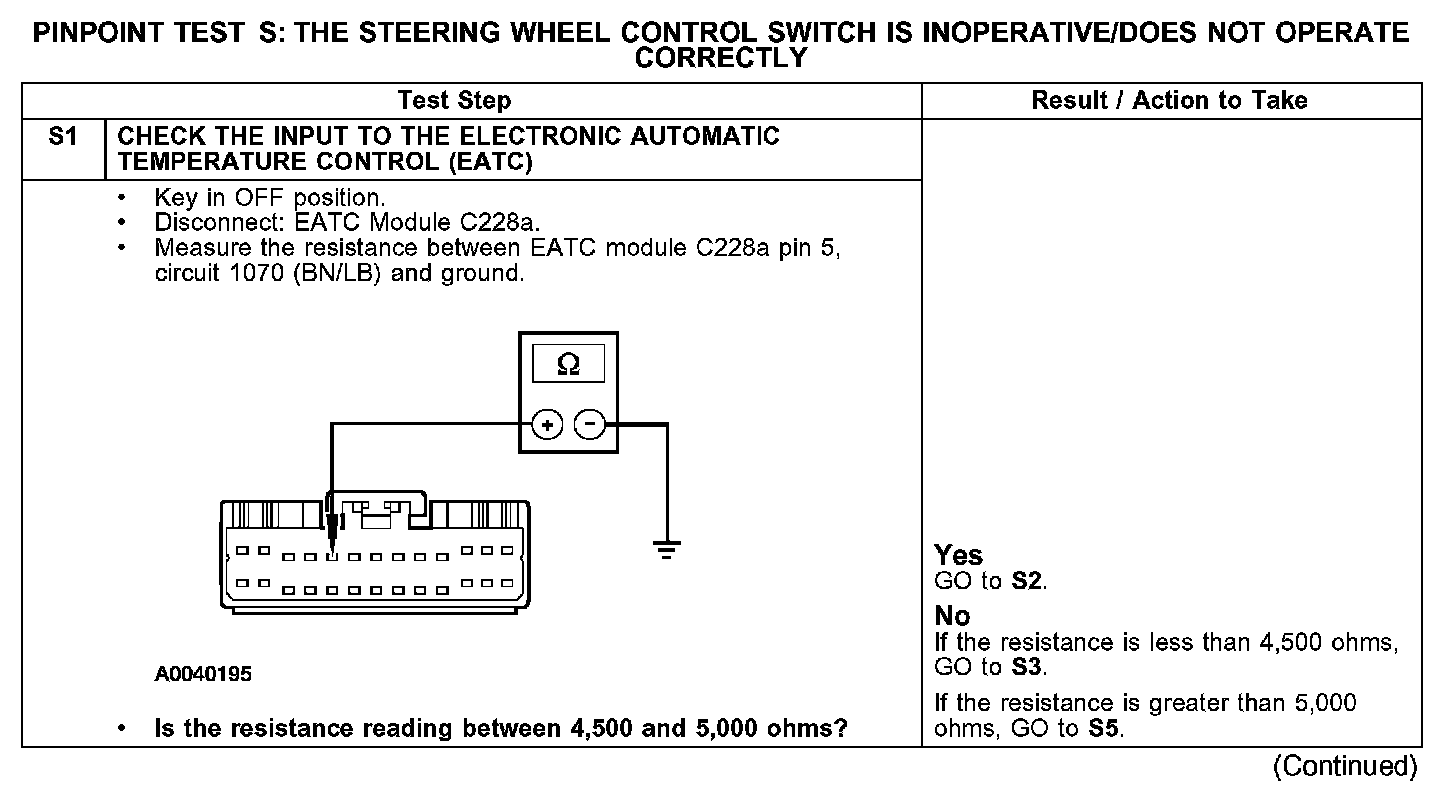

Test S1:






Test S2-S3:






Test S3-S4:

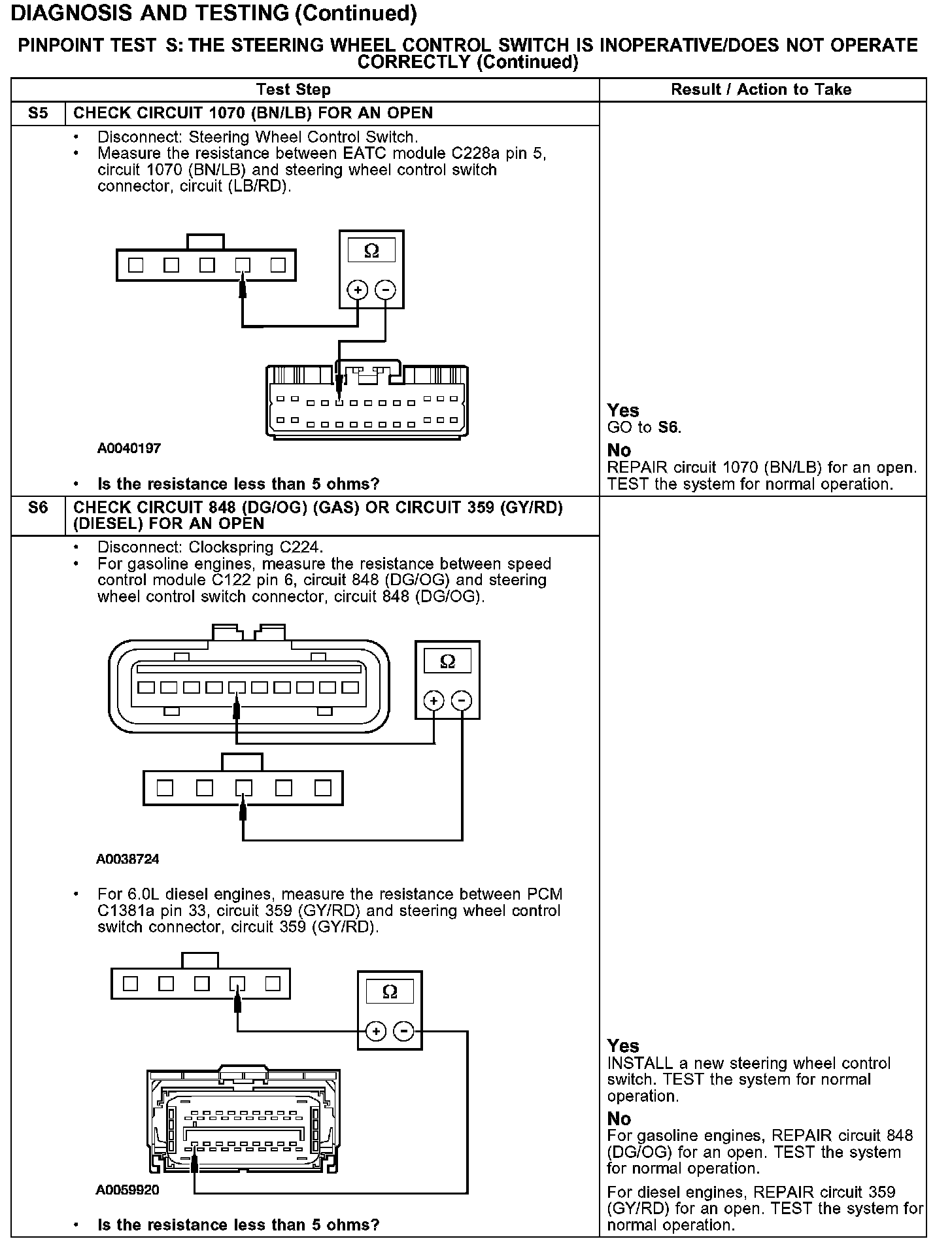

Test S5-S6:
