Drive Belt: Locations

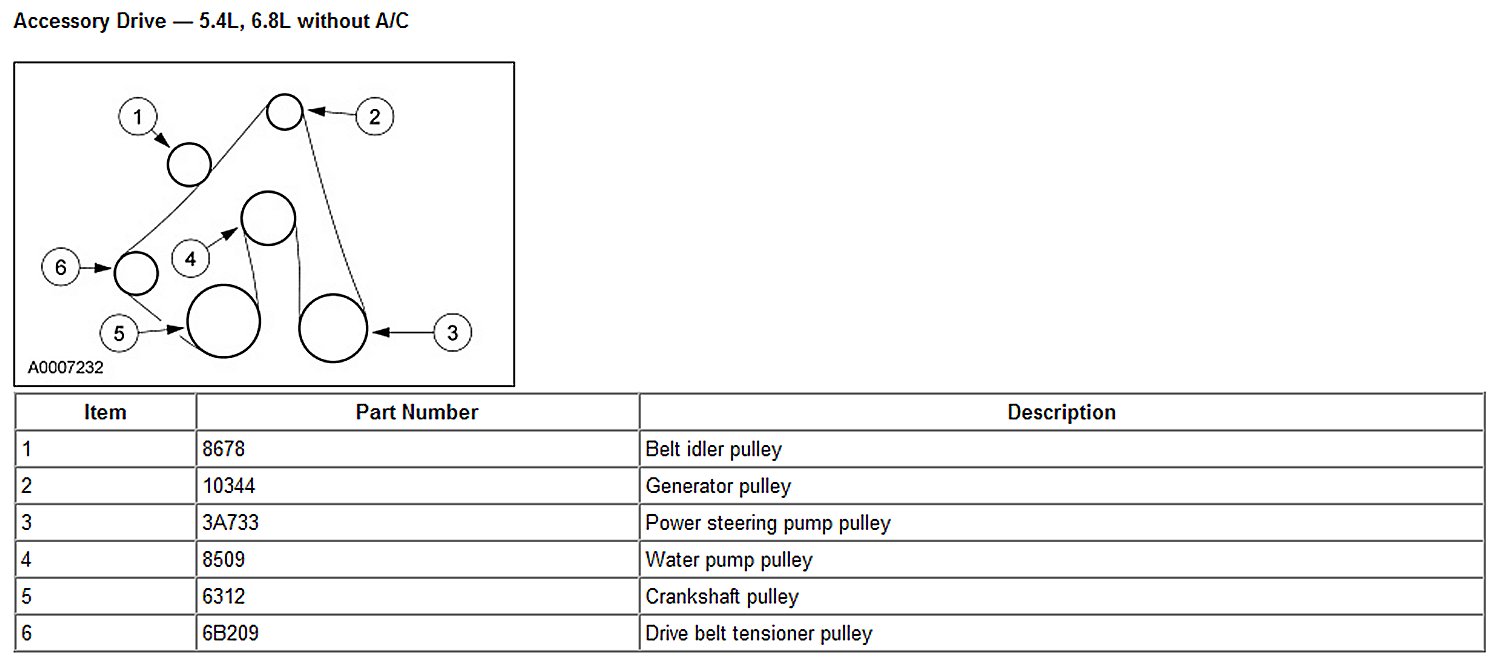

5.4L/6.8L Without A/C:

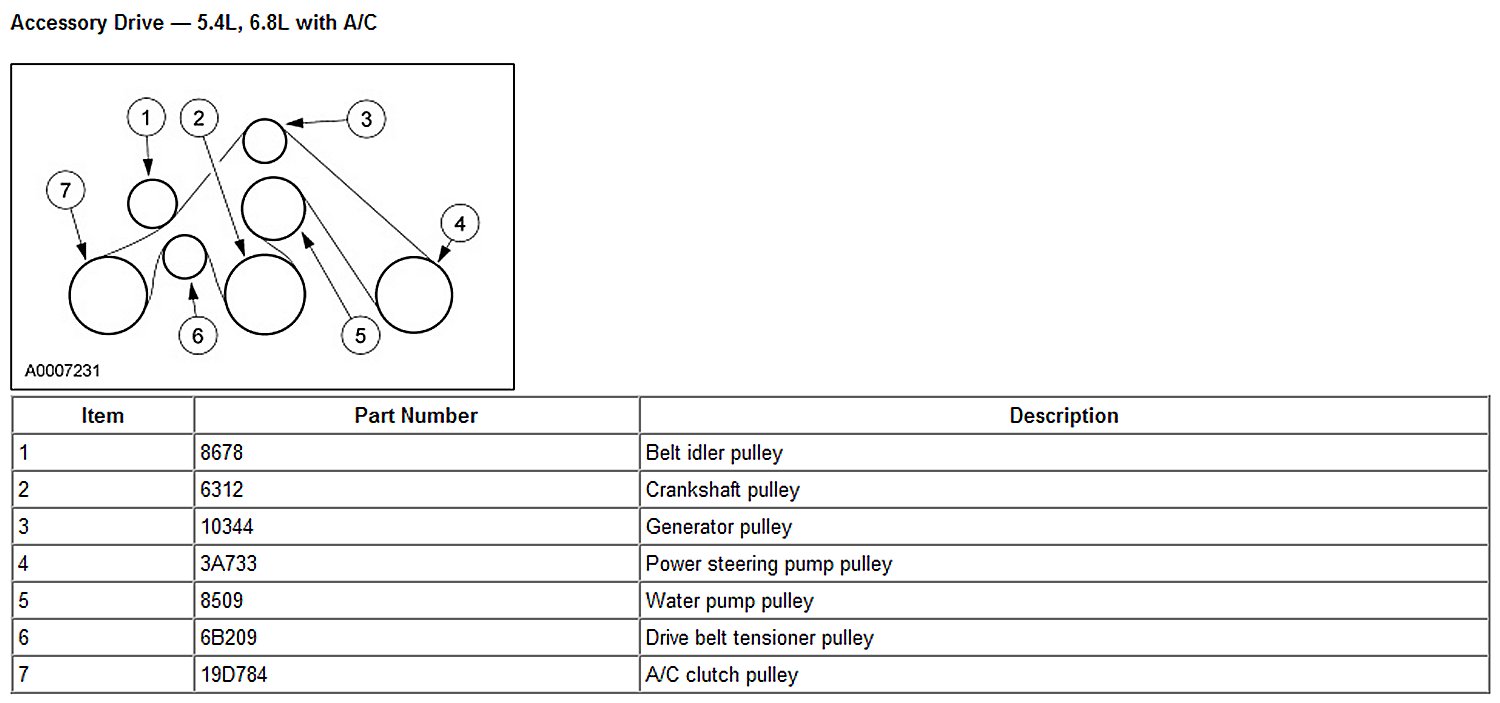

5.4L/6.8L With A/C:

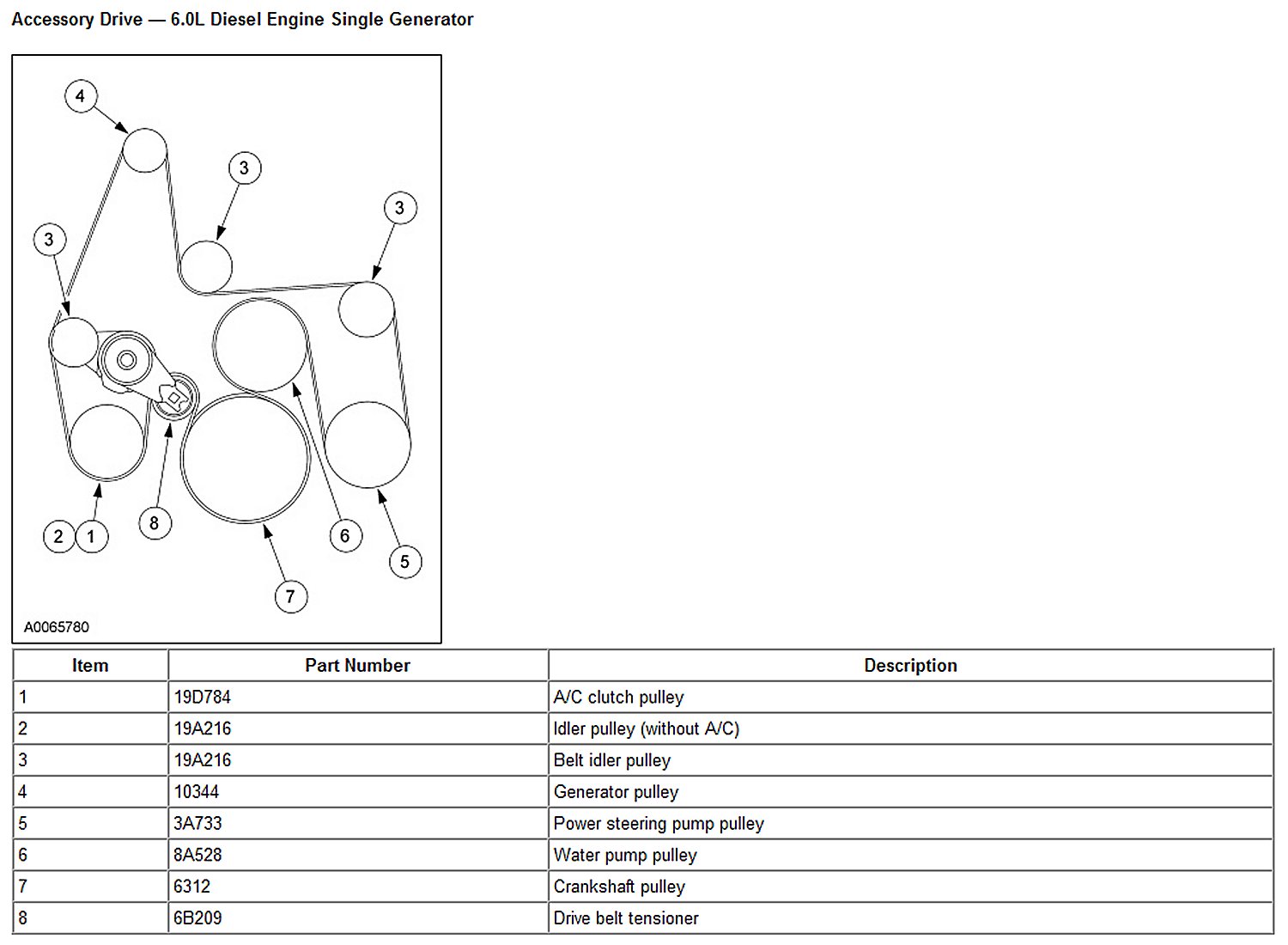

6.0L Diesel Single Generator:






6.0L Diesel Dual Generator:
