PINPOINT TEST G: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - 6.0L DIESEL ENGINE

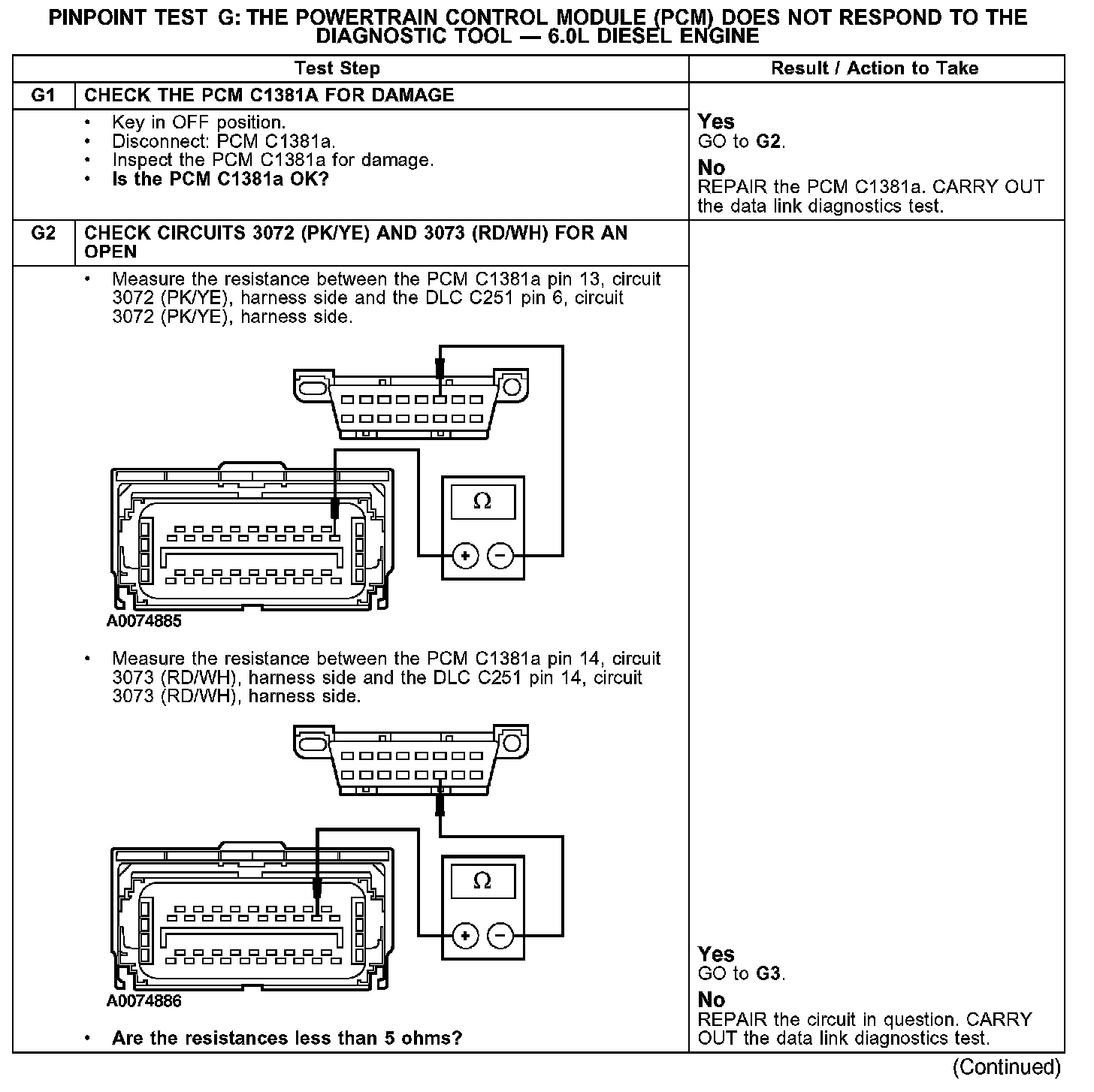

Test G1-G2:

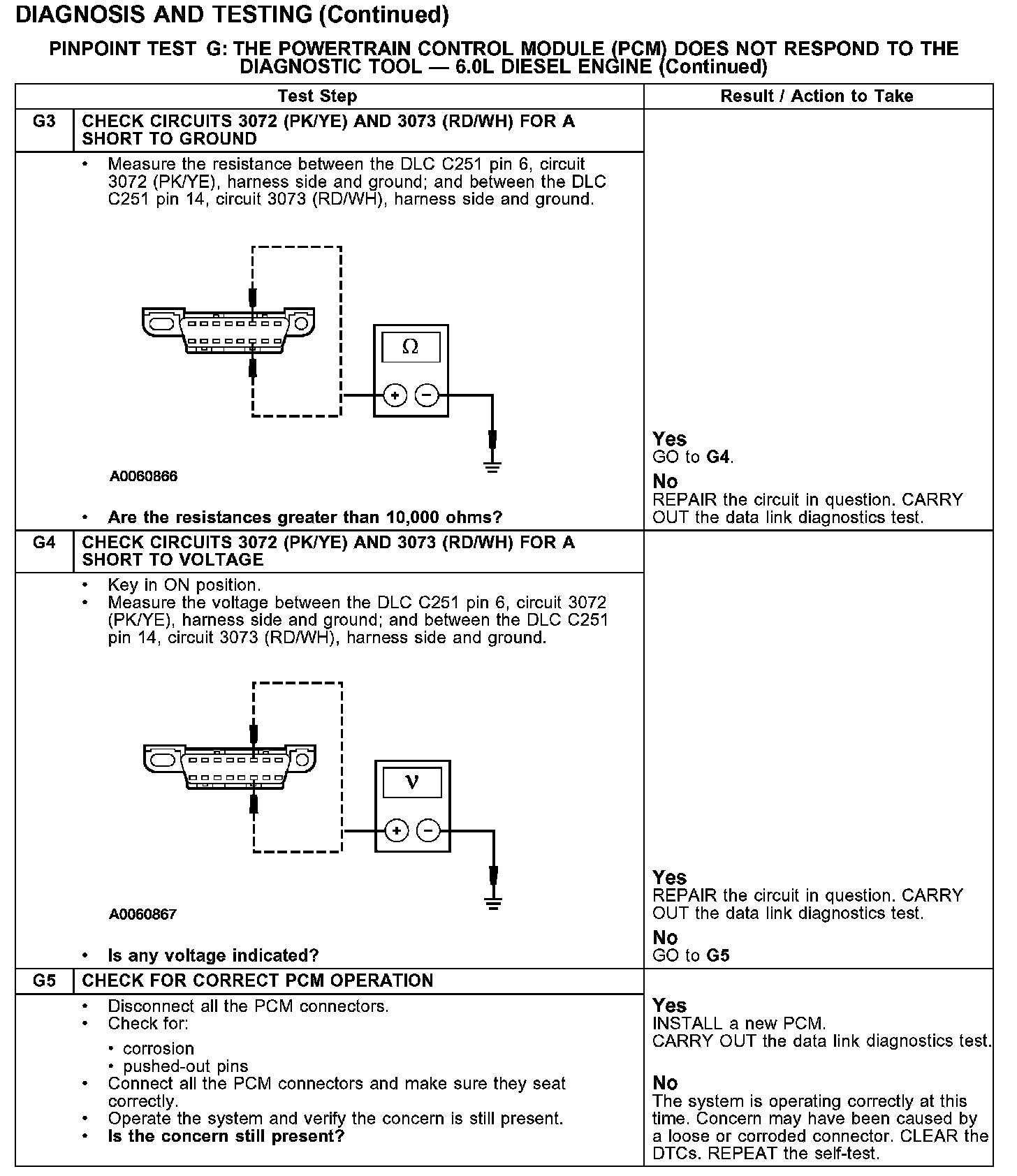

Test G3-G5:
