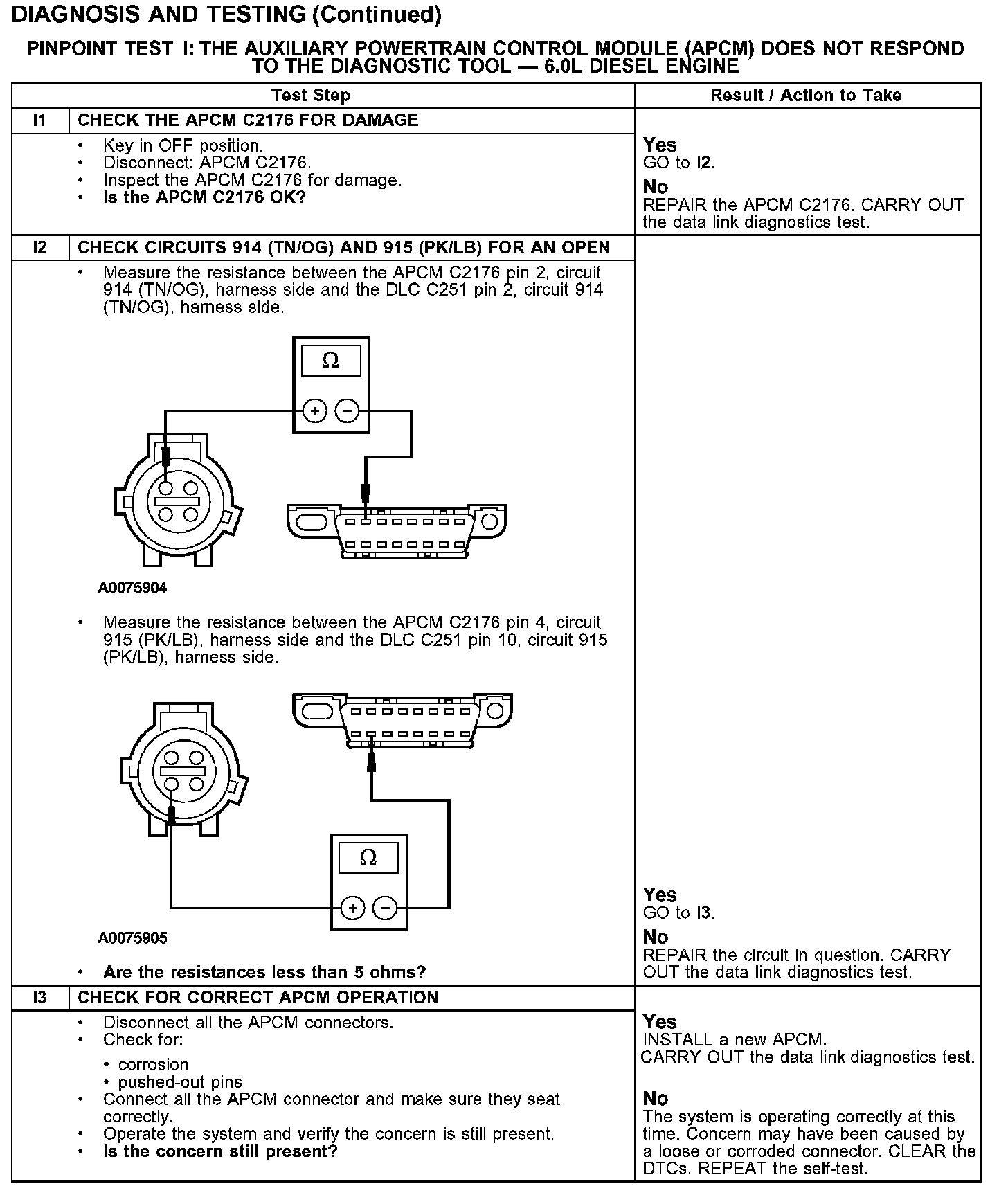

PINPOINT TEST I: THE AUXILIARY POWERTRAIN CONTROL MODULE (APCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - 6.0L DIESEL ENGINE
Test I1-I3:
