Oil Pan, Engine

NOTE: Be sure to tighten the bolts in two stages.

Oil pan bolts

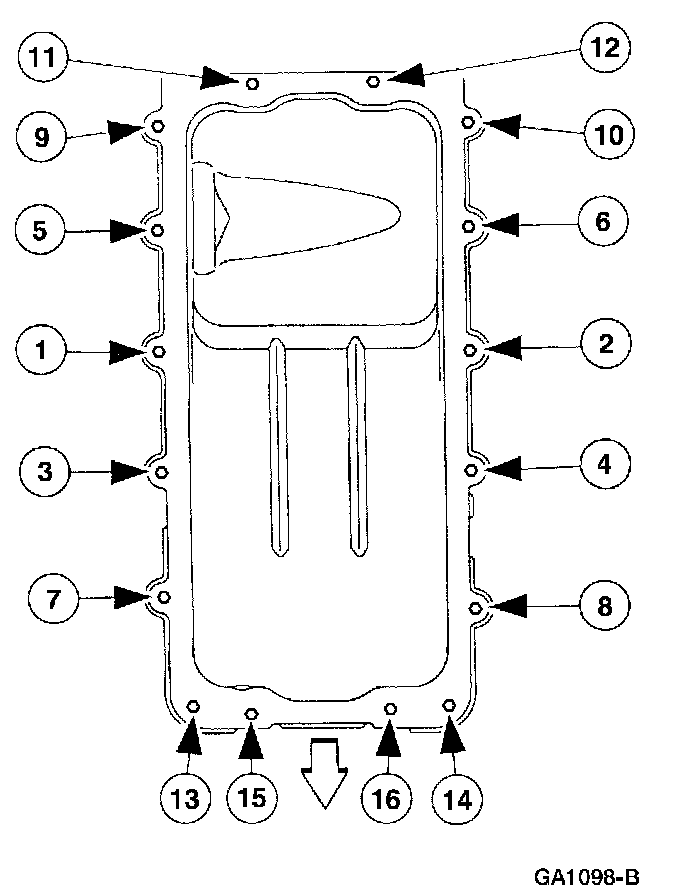

Tighten the bolts in the sequence shown.
^ Stage 1: Tighten to 20 Nm (15 ft. lbs.).
^ Stage 2: Tighten an additional 90°.
