Test F: PC-A (Line Pressure) Solenoid

Before Pinpoint Tests

NOTE: Prior to entering pinpoint tests, check the Powertrain Control Module (PCM) wiring harness for correct connections, bent or broken pins, corrosion, loose wires, correct routing, correct seals and their condition. Check the PCM, sensors and actuators for damage. Refer to the Computers and Control Systems.

NOTE: If a concern still exists after electrical diagnosis has been carried out, refer to Diagnosis By Symptom.

If DTCs appear while carrying out the on-board diagnostics, refer to the Diagnostic Trouble Code Chart for the appropriate procedure. Prior to entering pinpoint tests, refer to any TSBs and OASIS messages for transmission concerns.

PINPOINT TEST F: PC-A (LINE PRESSURE) SOLENOID

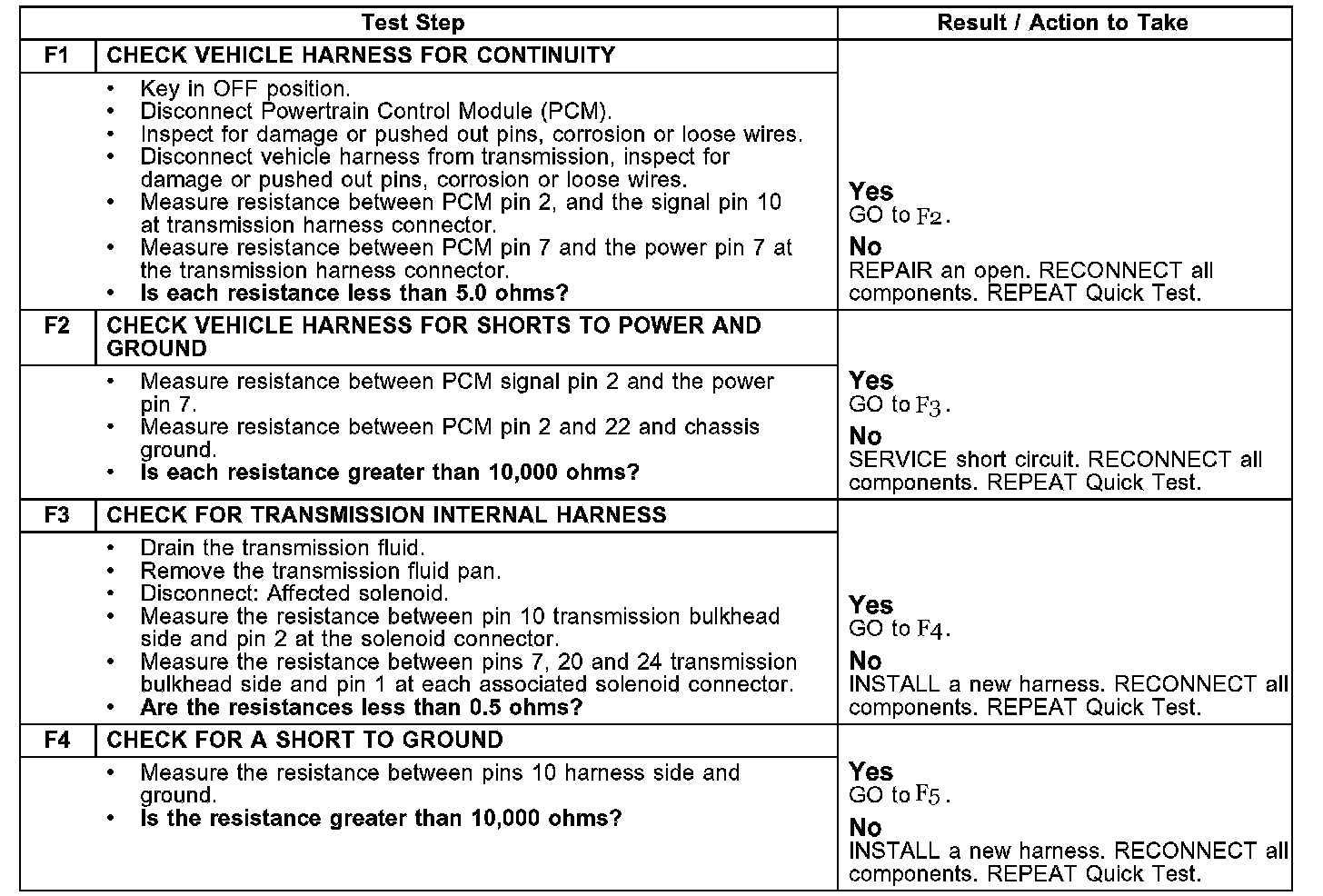

Test F1-F4:

Test F5-F6:

CAUTION: This test should only be used if DTCs P0748, P0960, P0962 or P0963 are present.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests.

NOTE: Refer to the Internal Harness Connector illustration preceding these pinpoint tests.
