PINPOINT TEST J: NO INSTRUMENT CLUSTER UNIVERSAL ASYNCHRONOUS RECEIVER-TRANSMITTER (UART) BASED PROTOCOL (UBP) NETWORK COMMUNICATION

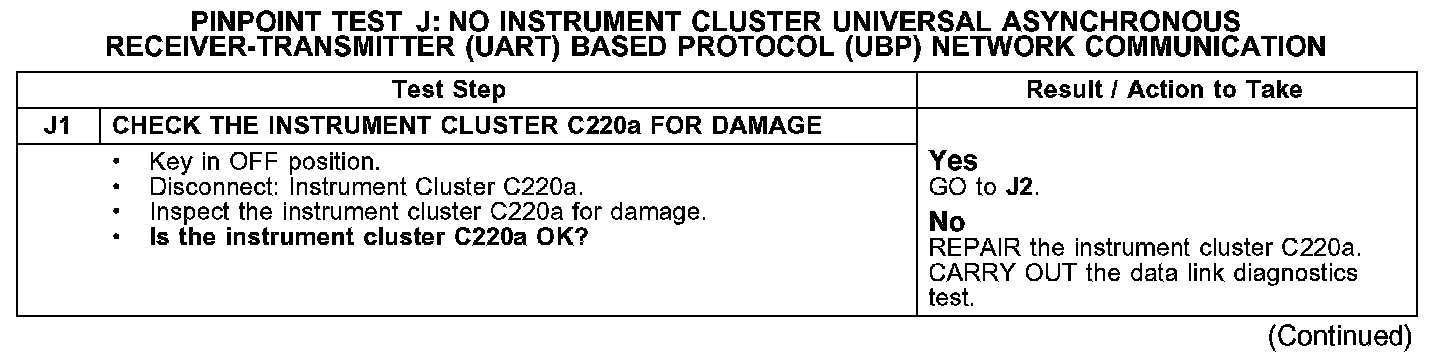

Test J1:

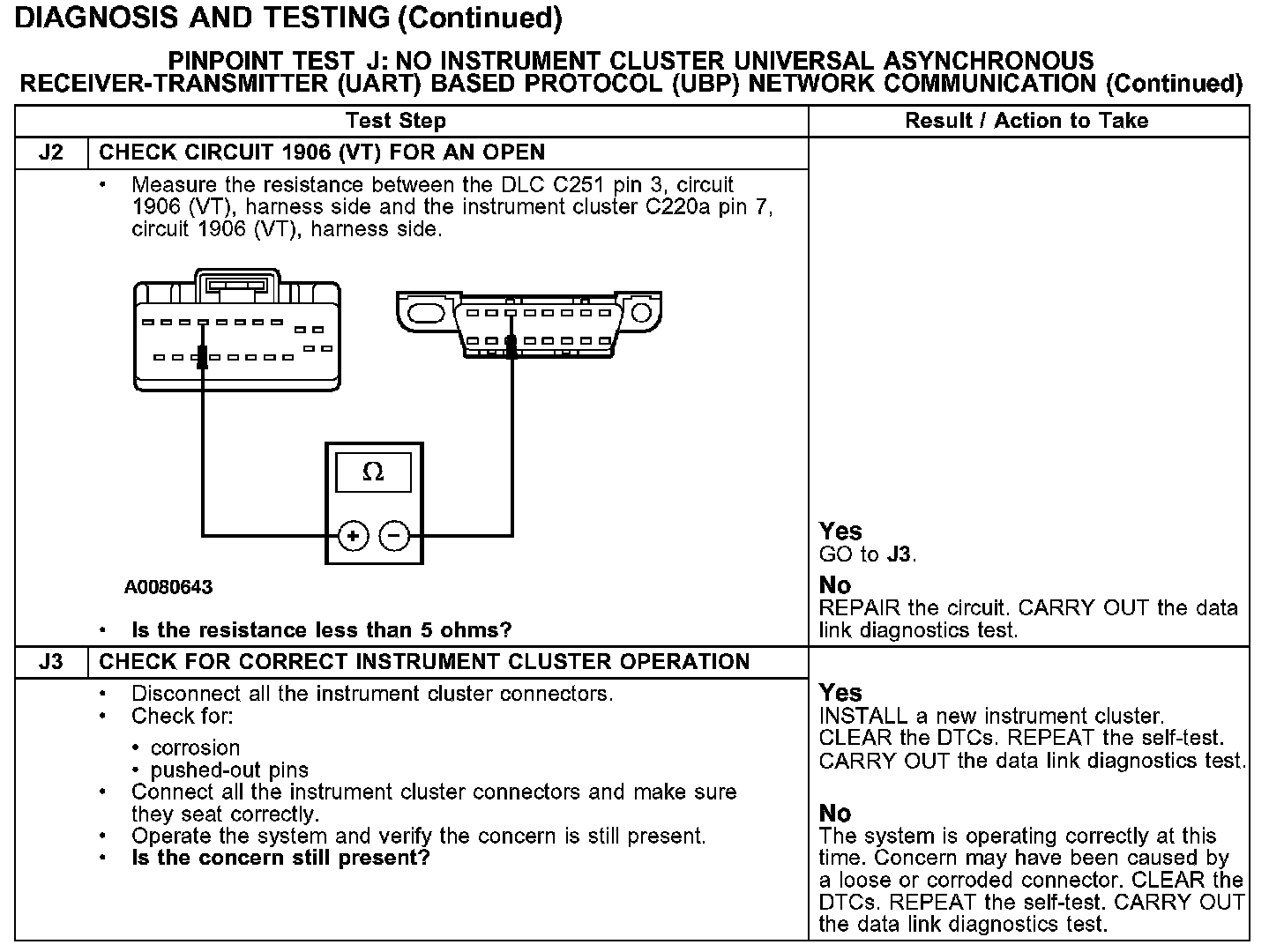

Test J2-J3:
