Navigation Module: Service and Repair

NAVIGATION SYSTEM MODULE

REMOVAL

1. CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

NOTE: Prior to removal of the navigation system module, it is necessary to remove the digital versatile disc (DVD) from the navigation system module and store it in the customer case.

Disconnect the battery.

2. Remove the lower LH and RH panels from the front floor console.

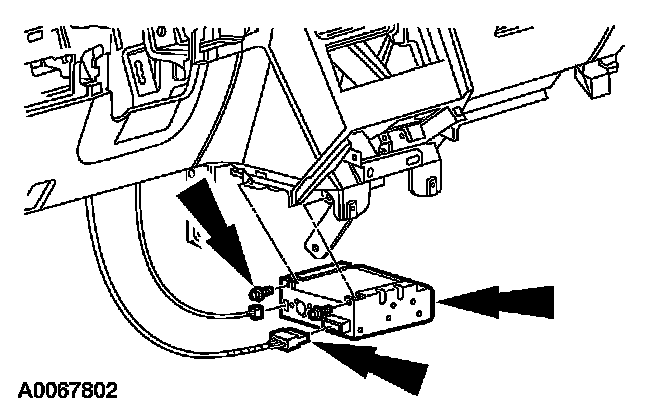

3. Remove the navigation system module.
- Remove the electrical connectors.
- Remove the screws.

INSTALLATION
1. To install, reverse the removal procedure.
