Test B

PINPOINT TEST B: THE SPEED CONTROL IS INOPERATIVE - NO DTCs

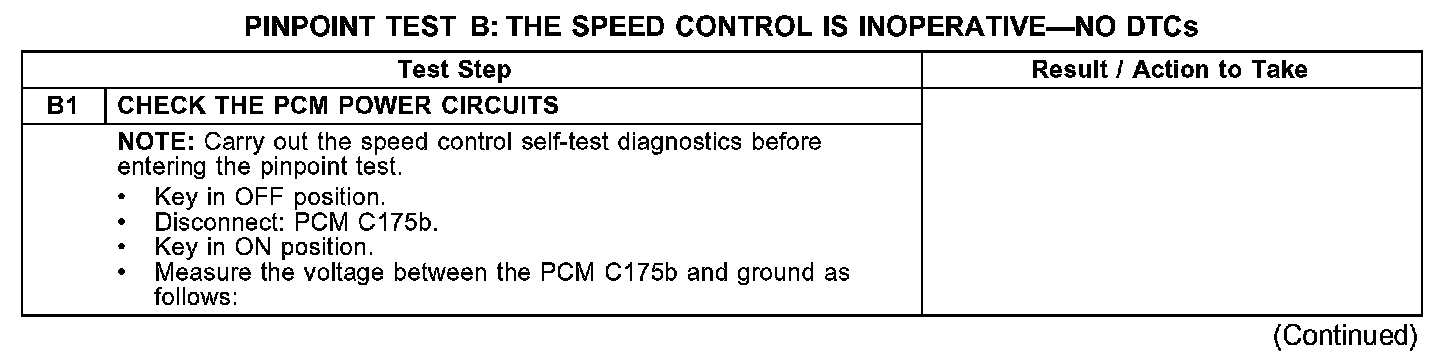

Test B1:

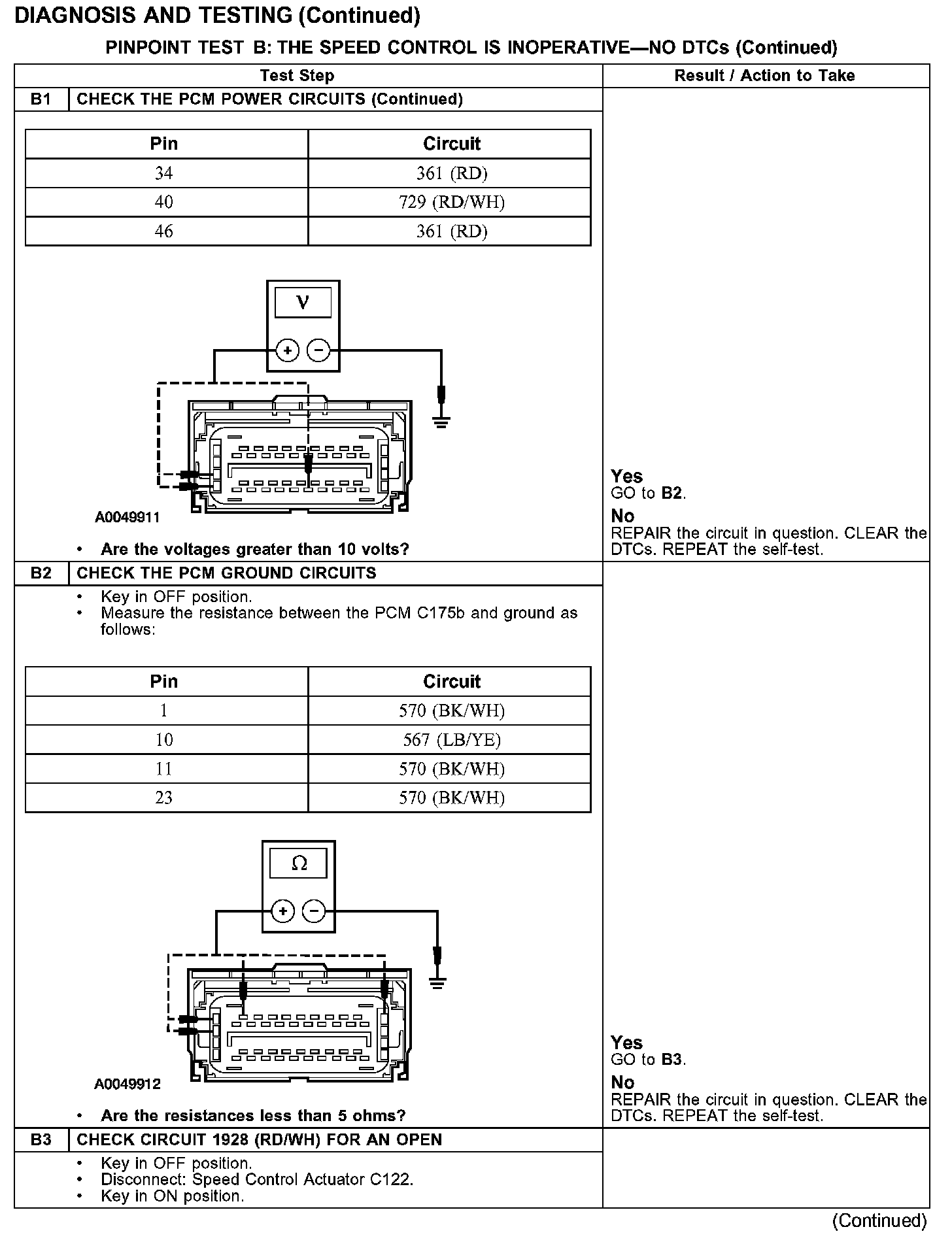

Test B1-B3:

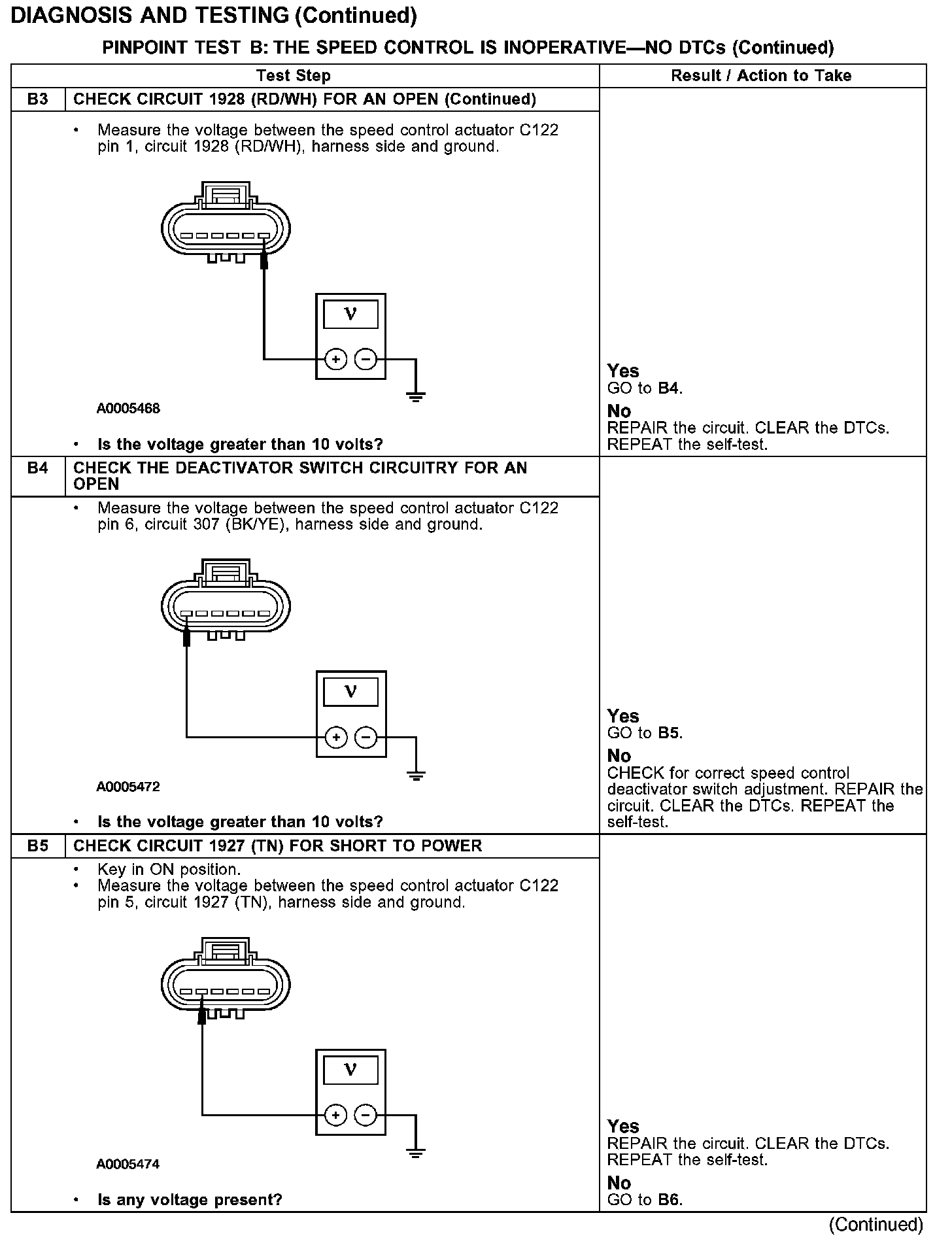

Test B3-B5:

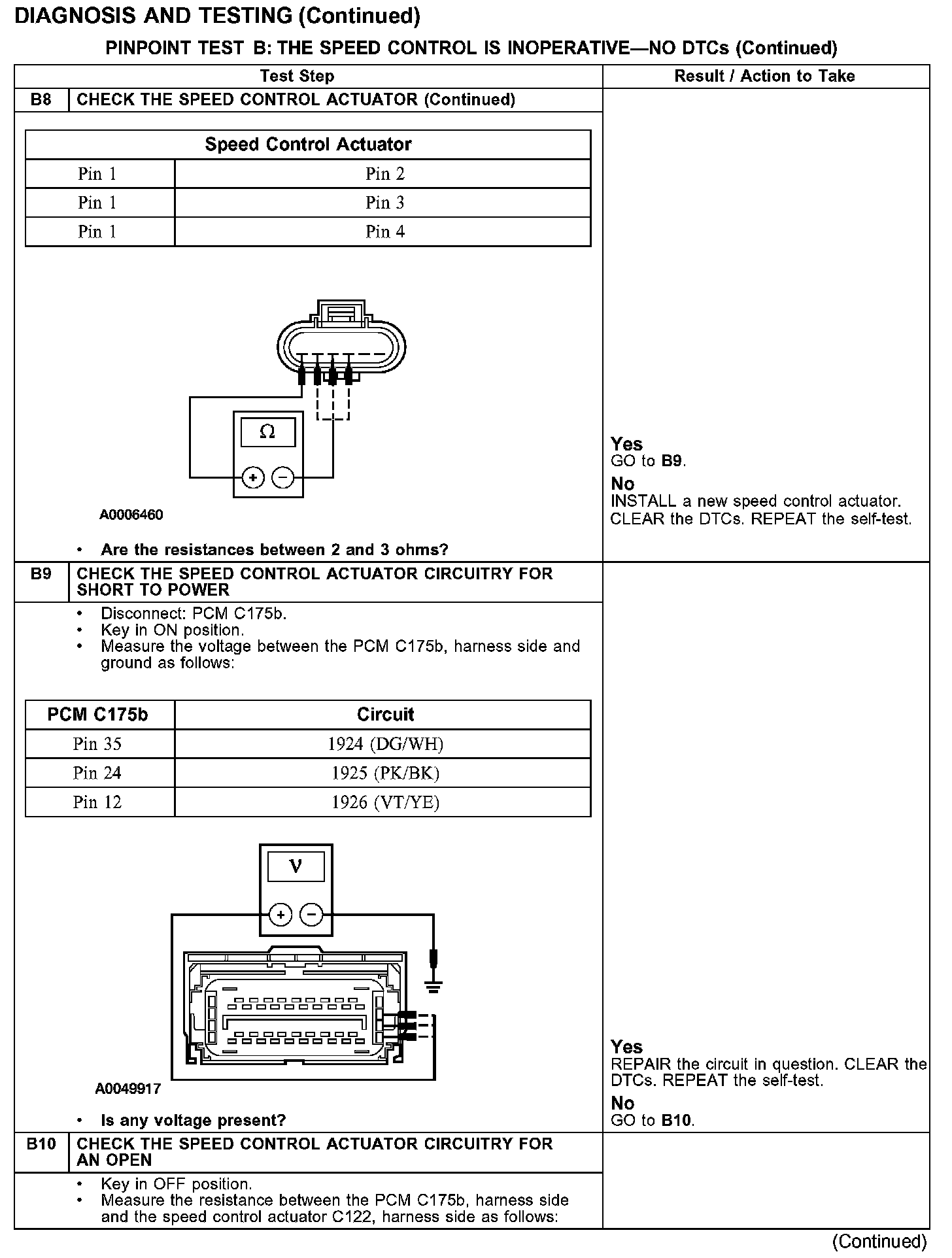

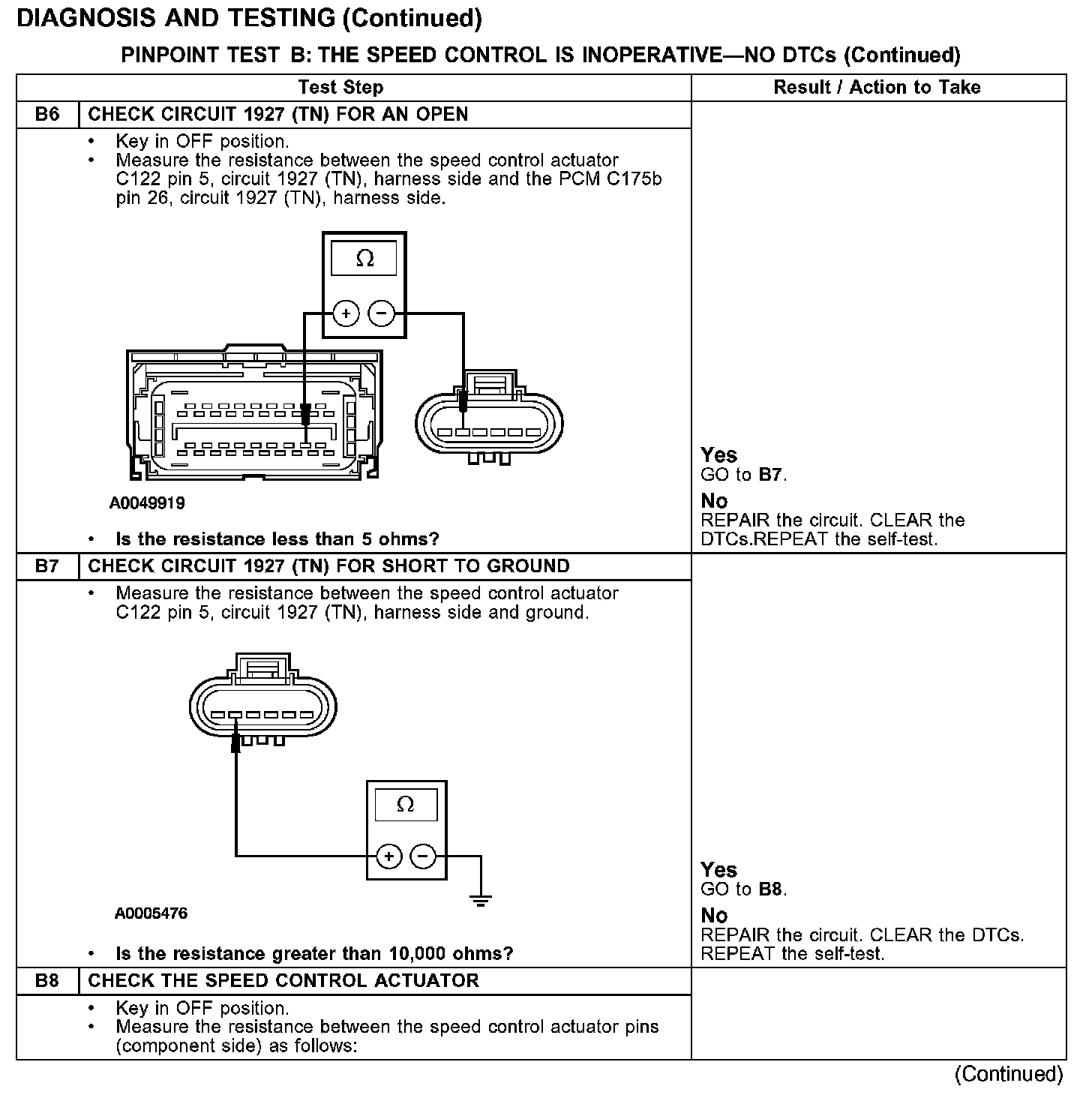

Test B6-B8:






Test B8-B10:

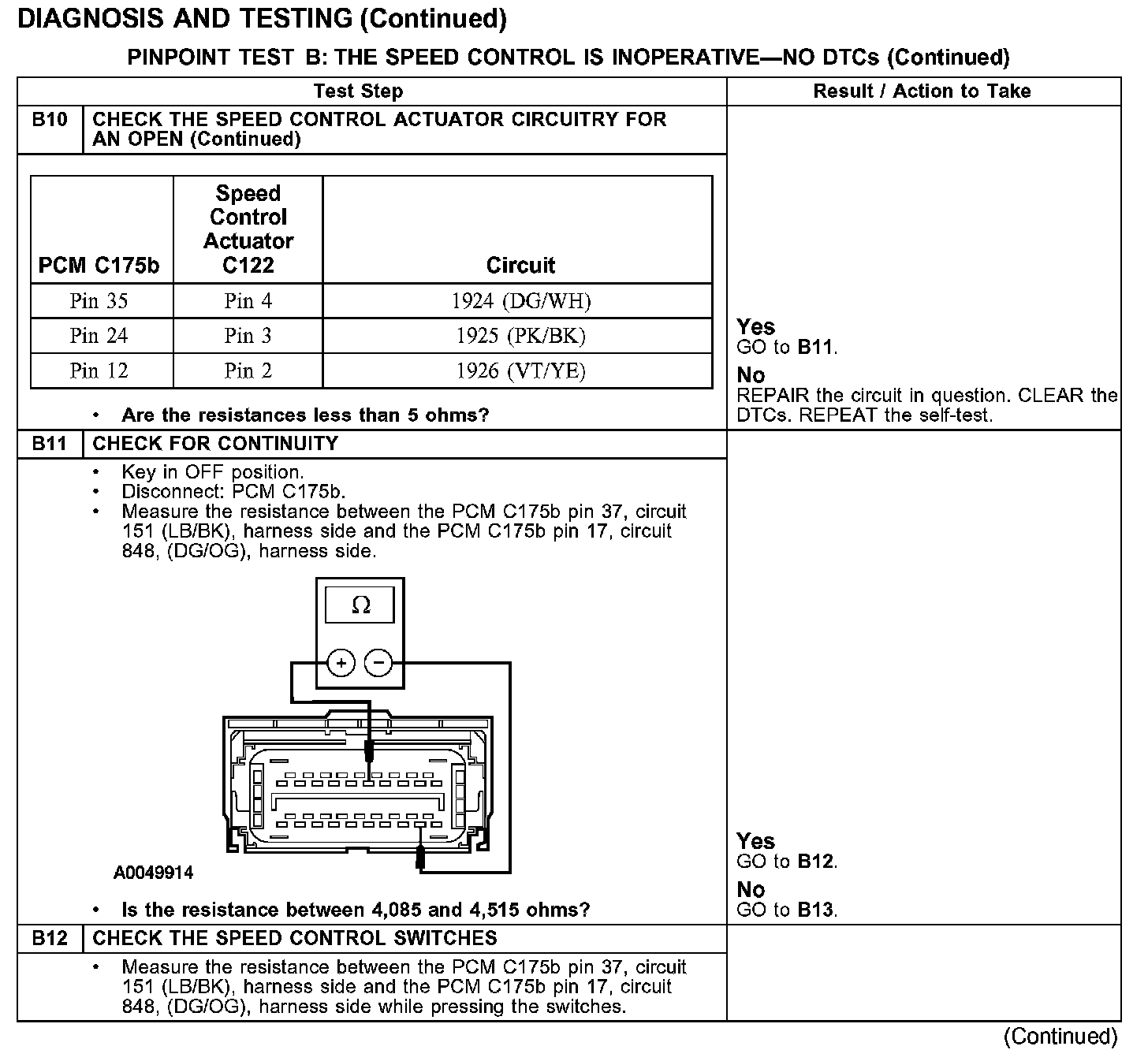

Test B10-B12:

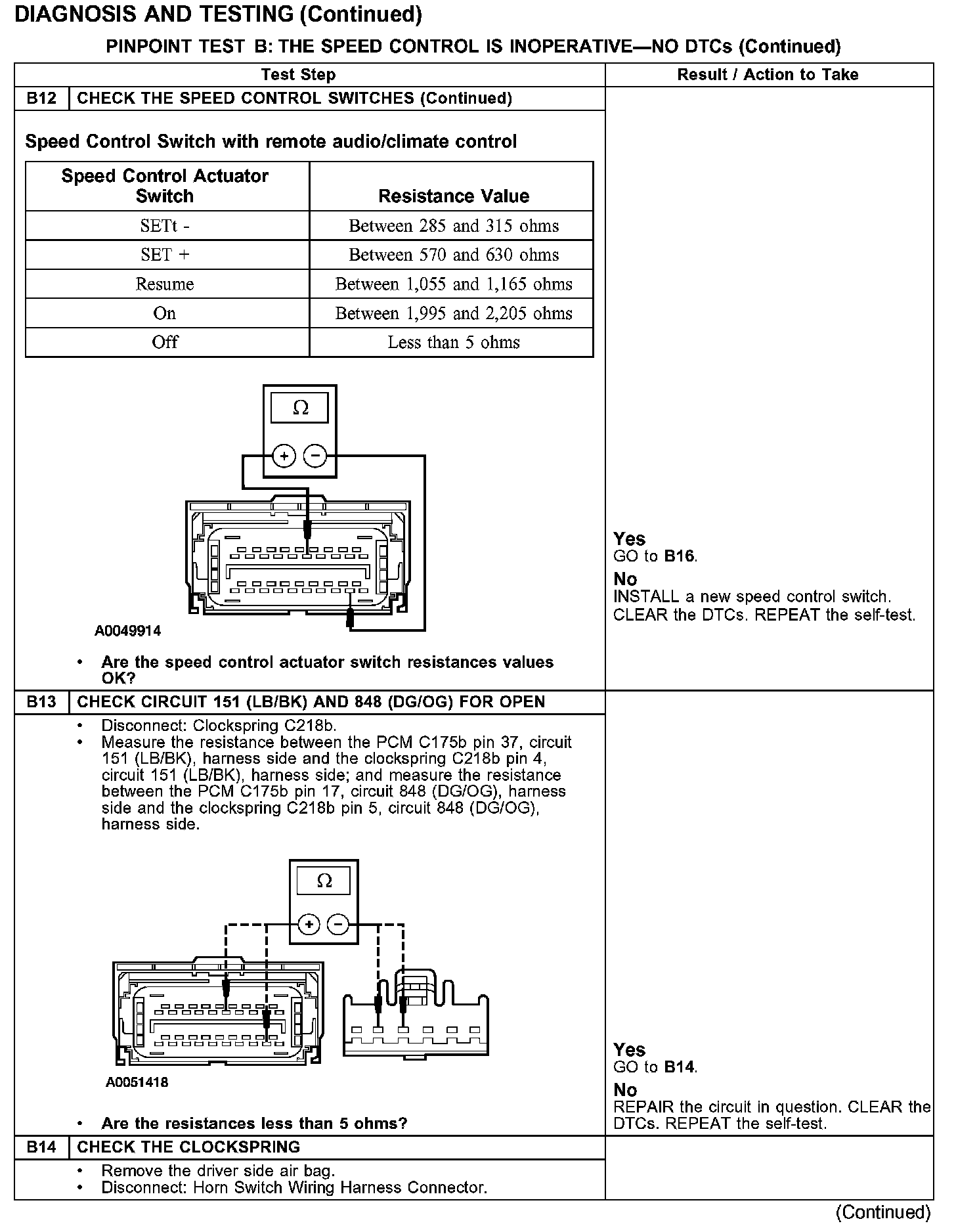

Test B12-B14:

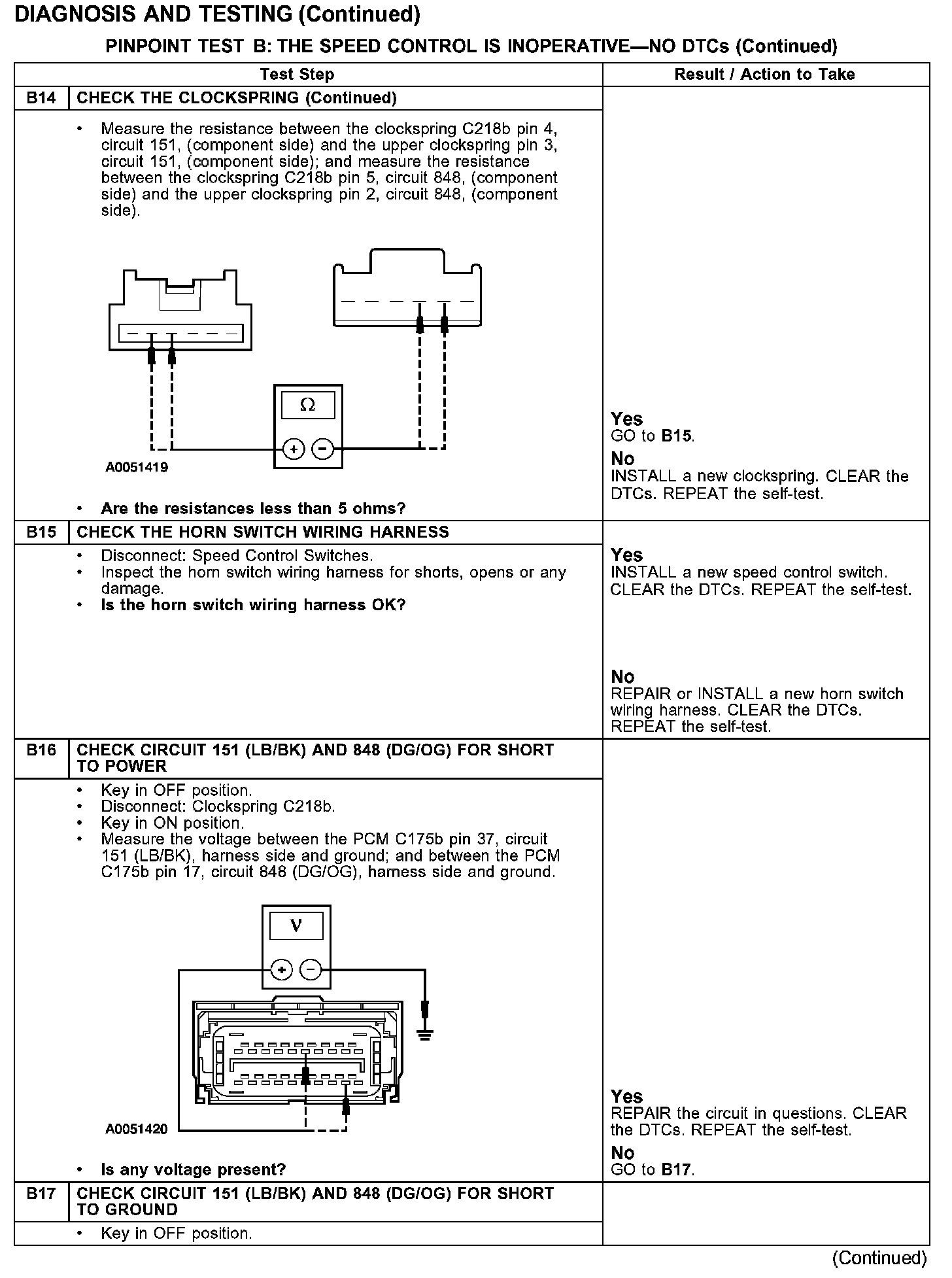

Test B14-B17:

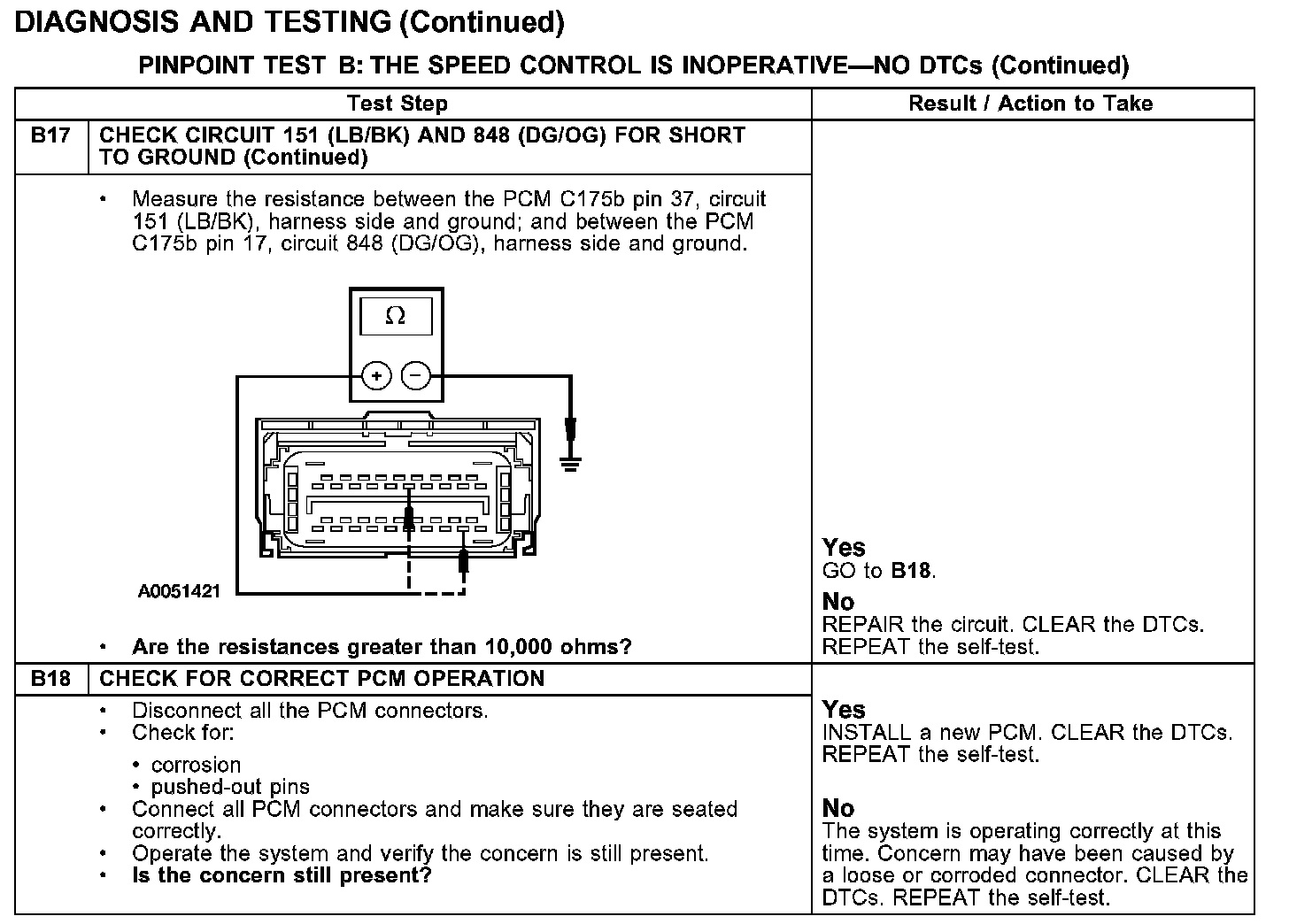

Test B17-B18:
