Rear

AUXILIARY CLIMATE CONTROL ASSEMBLY - REAR

REMOVAL

Navigator

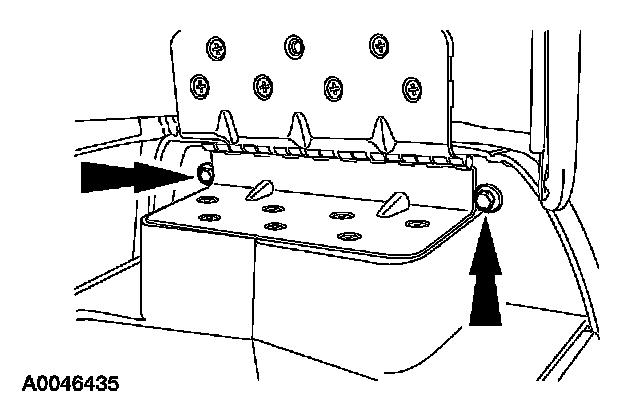

1. Open the front floor console cover and remove the screws.

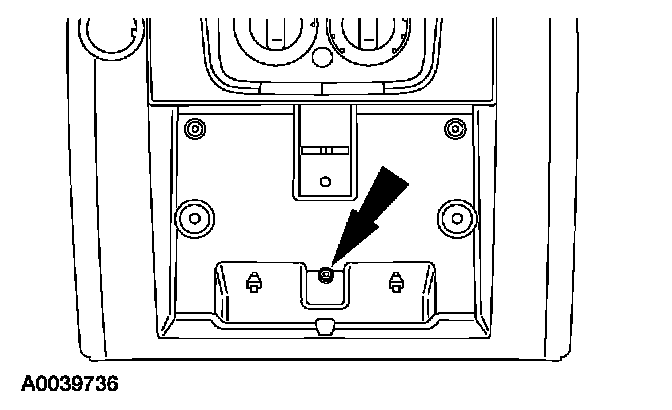

2. Open the cup holder and remove the screw.

All vehicles

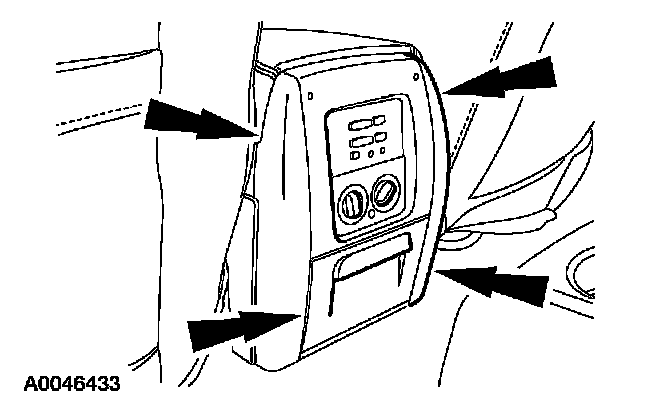

3. NOTE: Navigator shown, Expedition similar.

Disengage the clips and remove the floor console rear finish panel.
- Disconnect the electrical connectors.







4. Remove the screws and the rear auxiliary climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
