PINPOINT TEST D: DTC B1259 OR DTC B1261 - SOLAR RADIATION SENSOR OPEN CIRCUIT OR SHORT TO GROUND
Test D1:

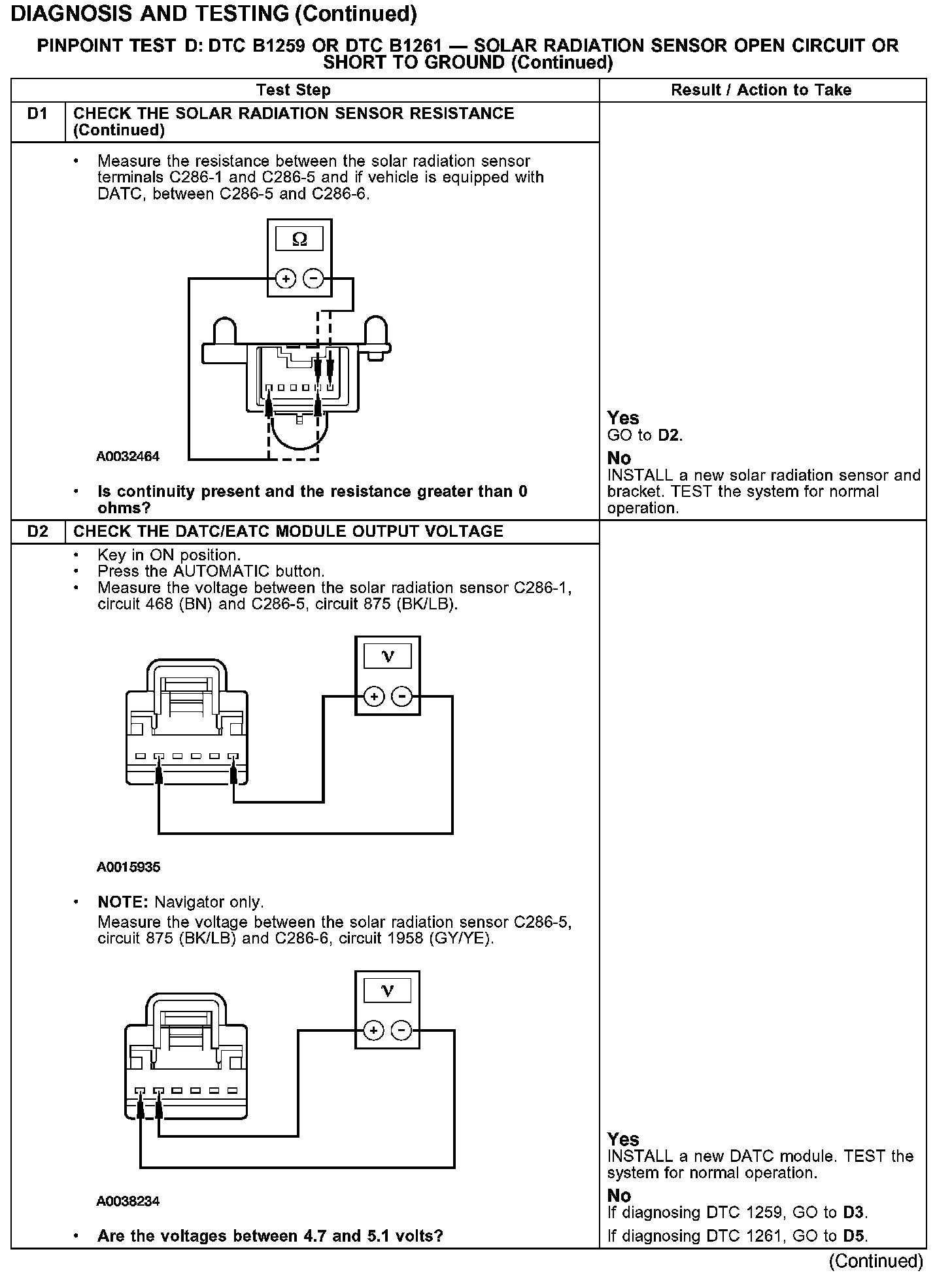

Test D1-D2:

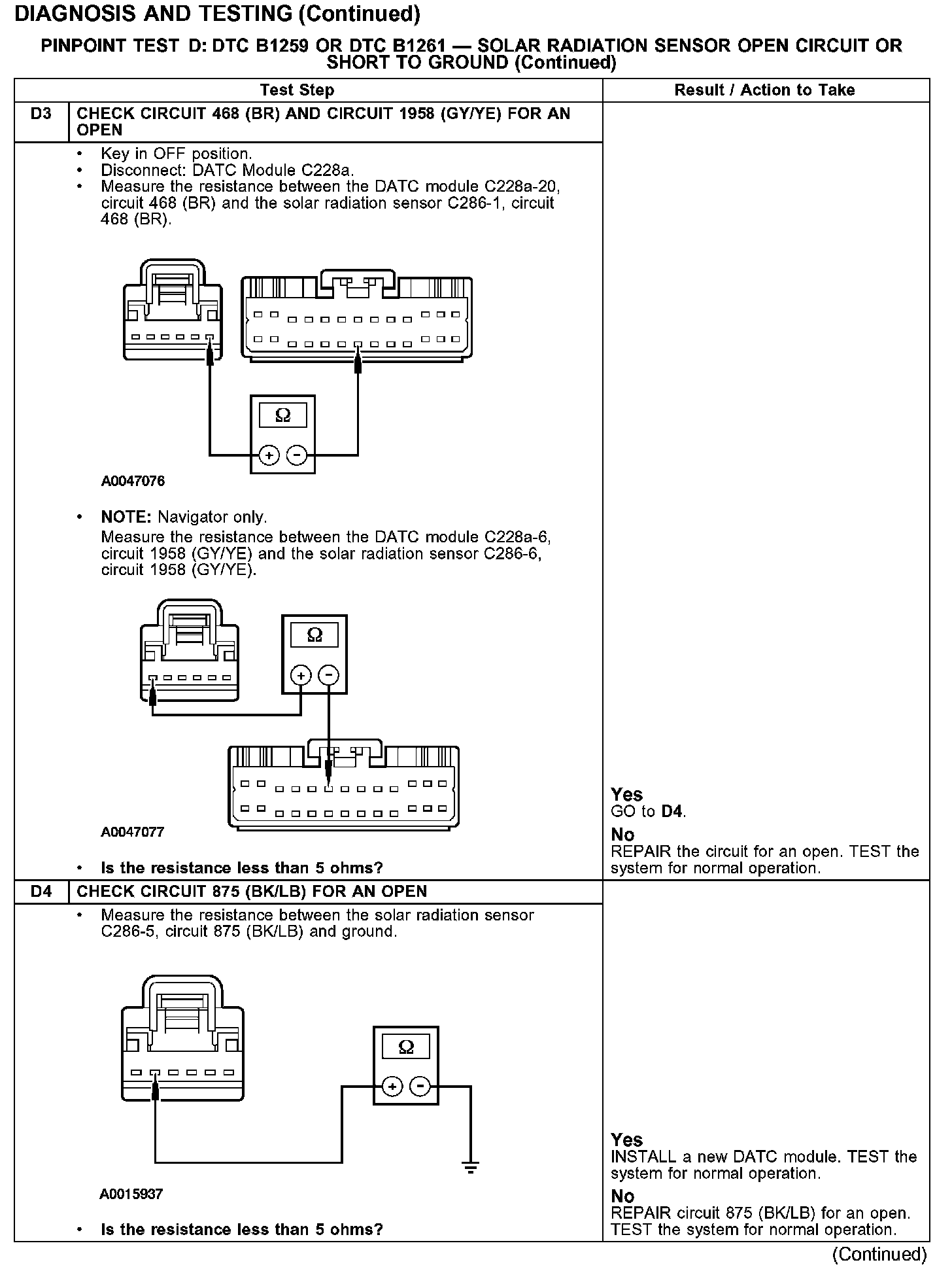

Test D3-D4:

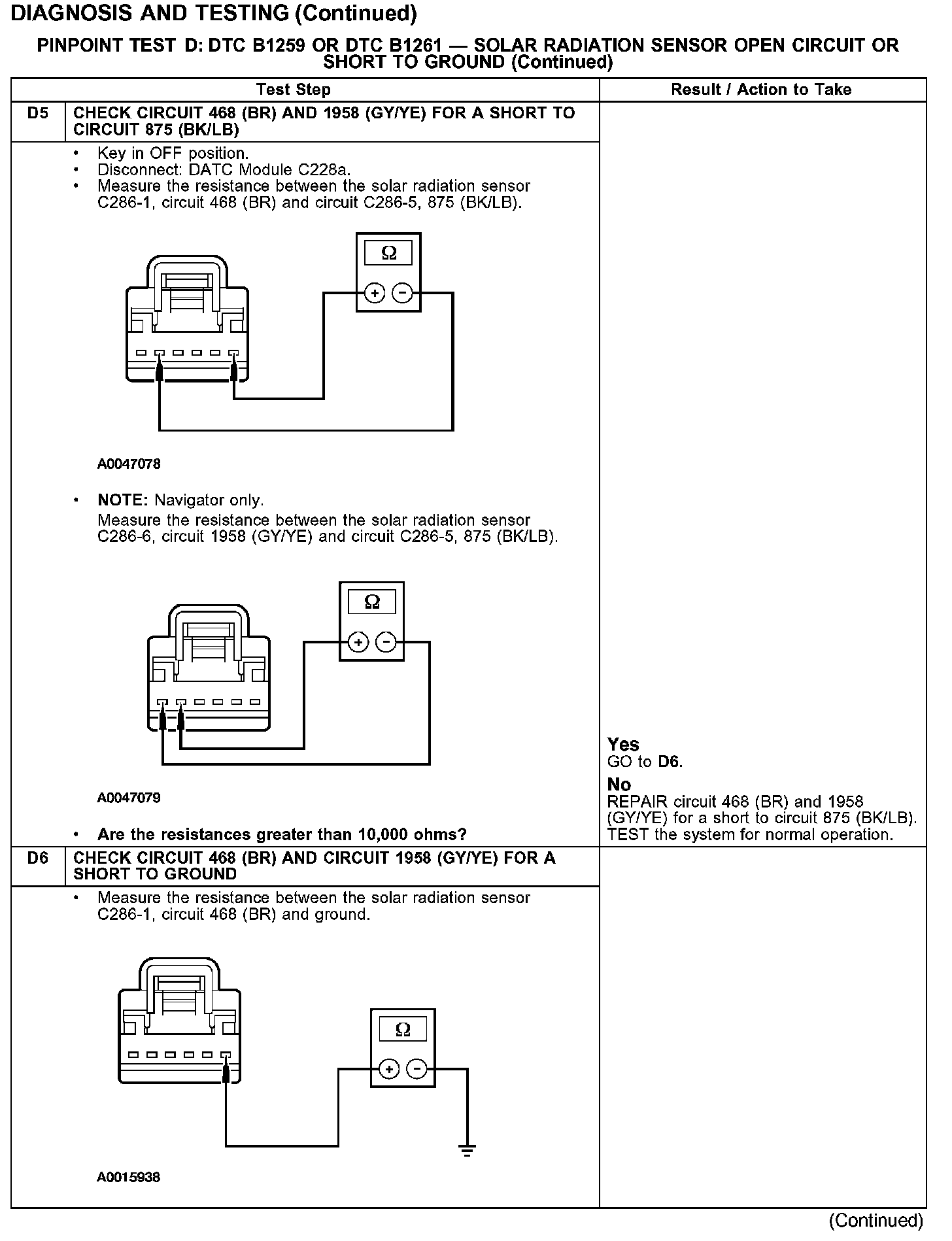

Test D5-D6:

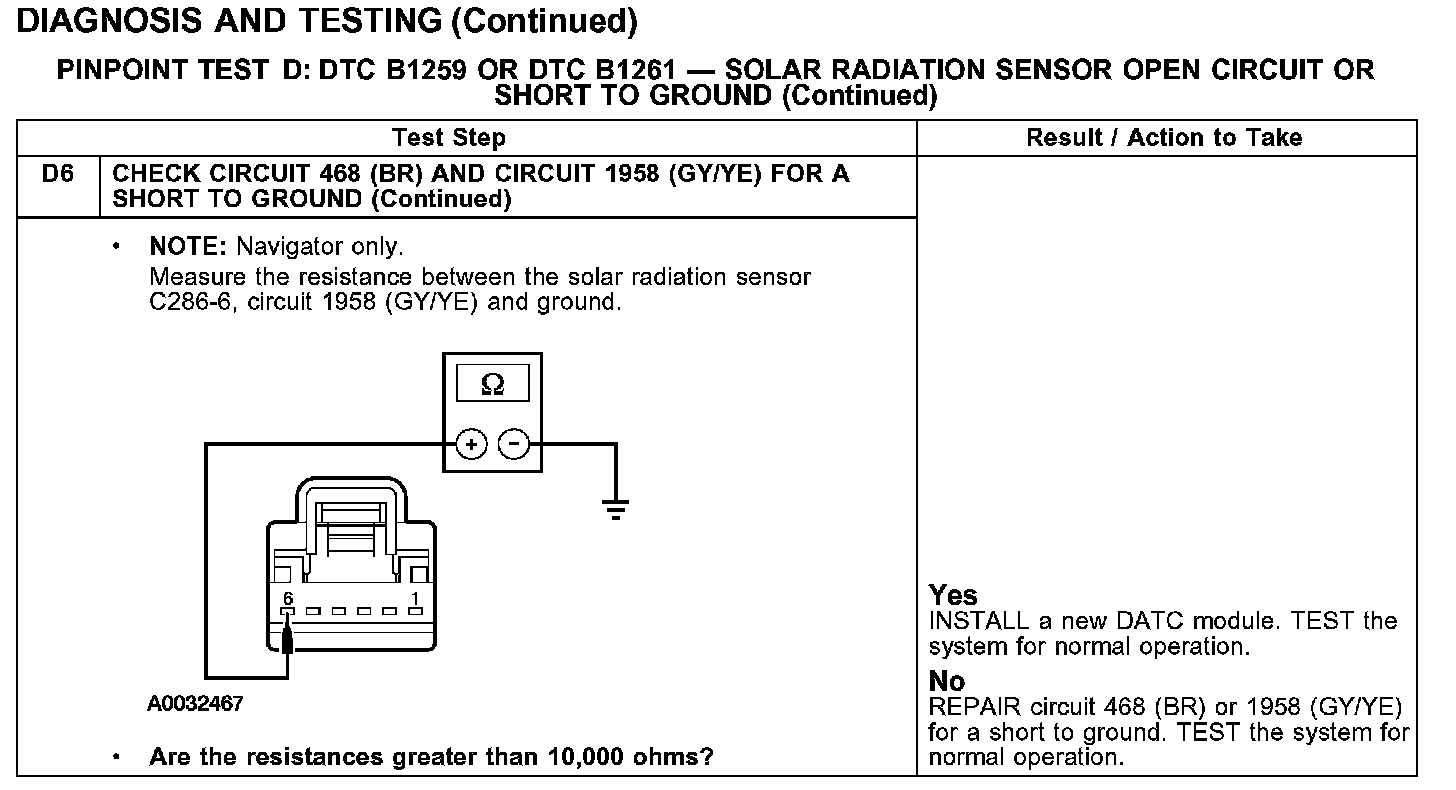

Test D6 Continued:
