Test L

PINPOINT TEST L: THE A/C DOES NOT OPERATE/DOES NOT OPERATE CORRECTLY

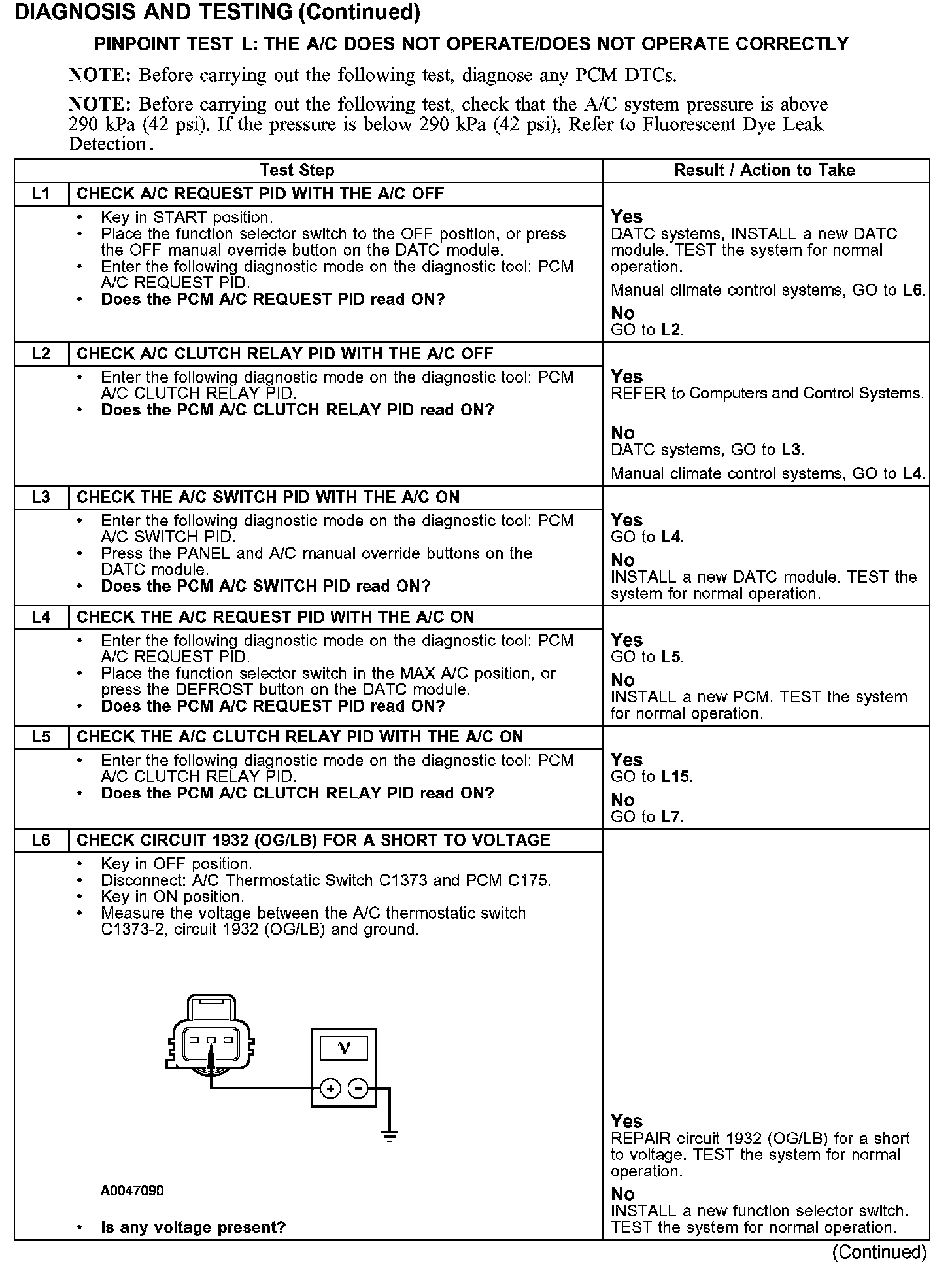

Test L1-L6:

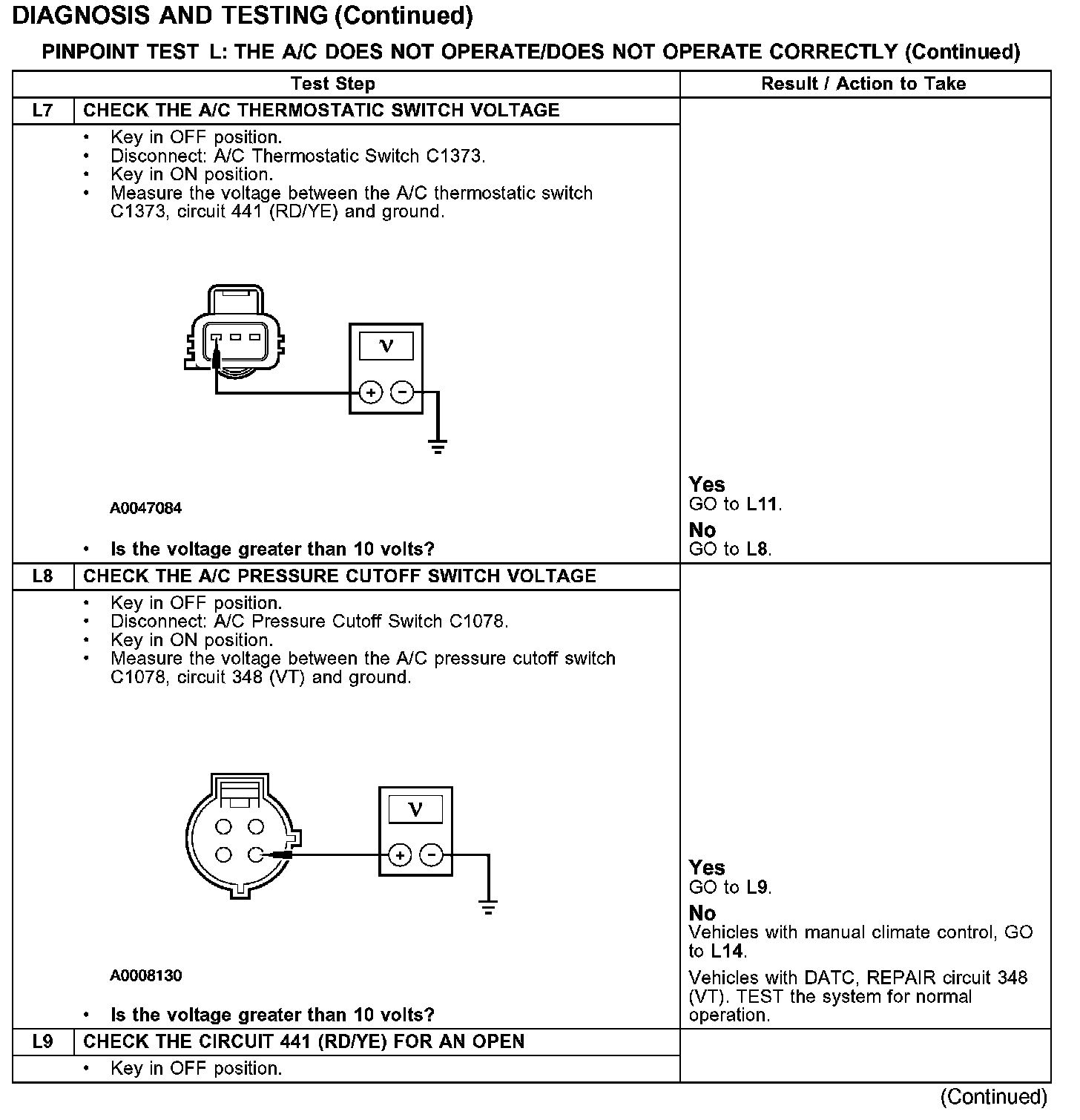

Test L7-L9:

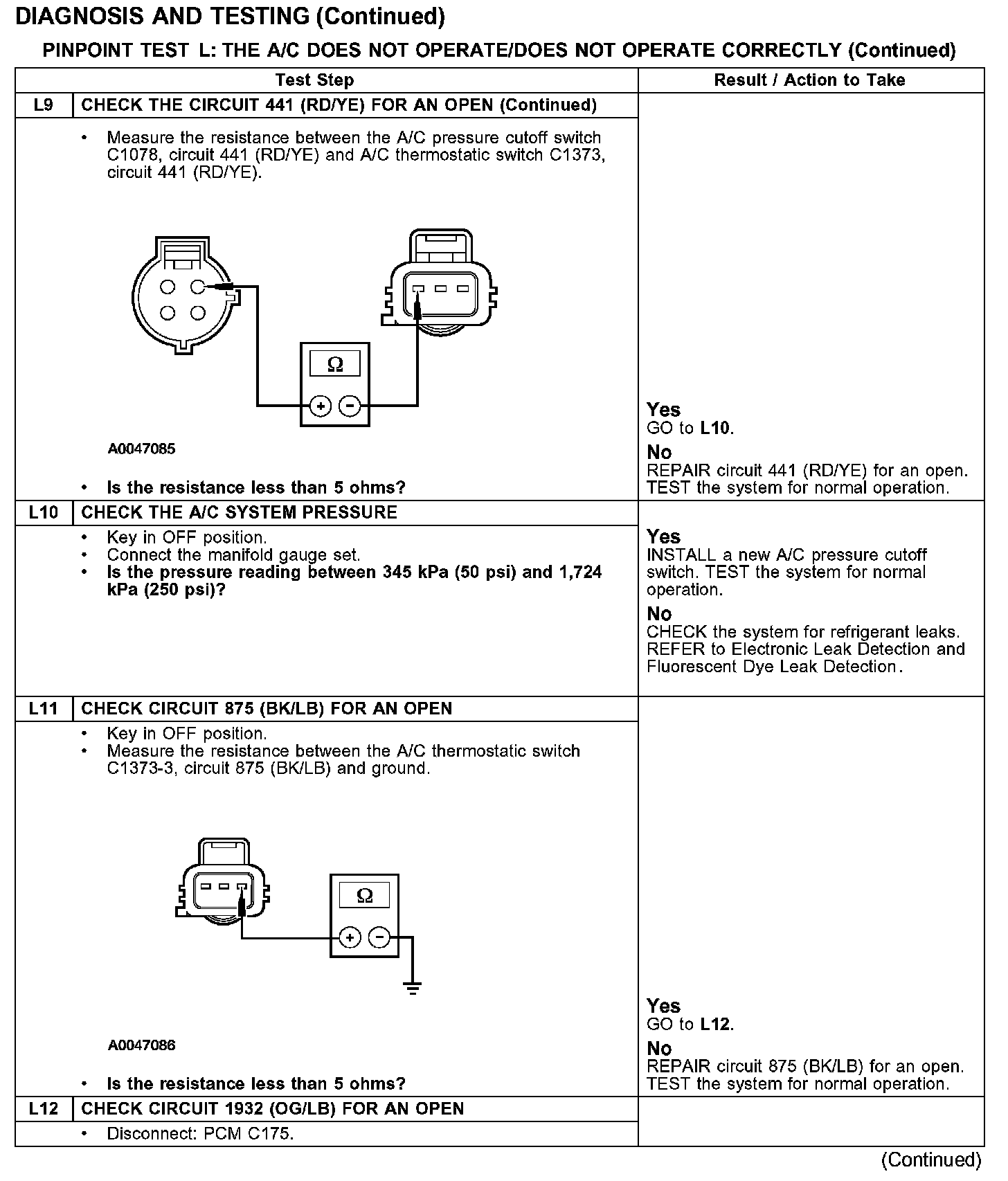

Test L9-L12:

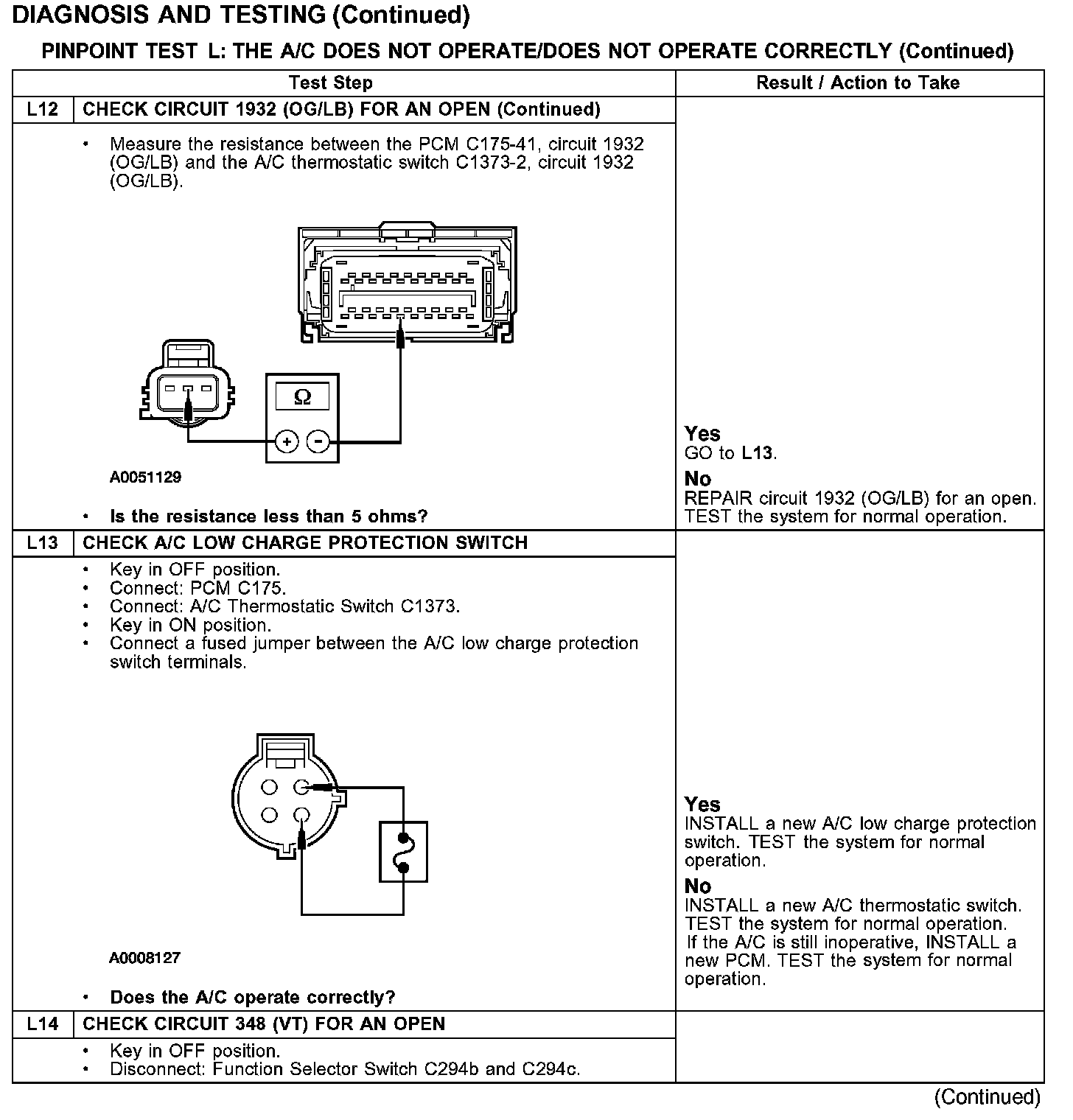

Test L12-L14:

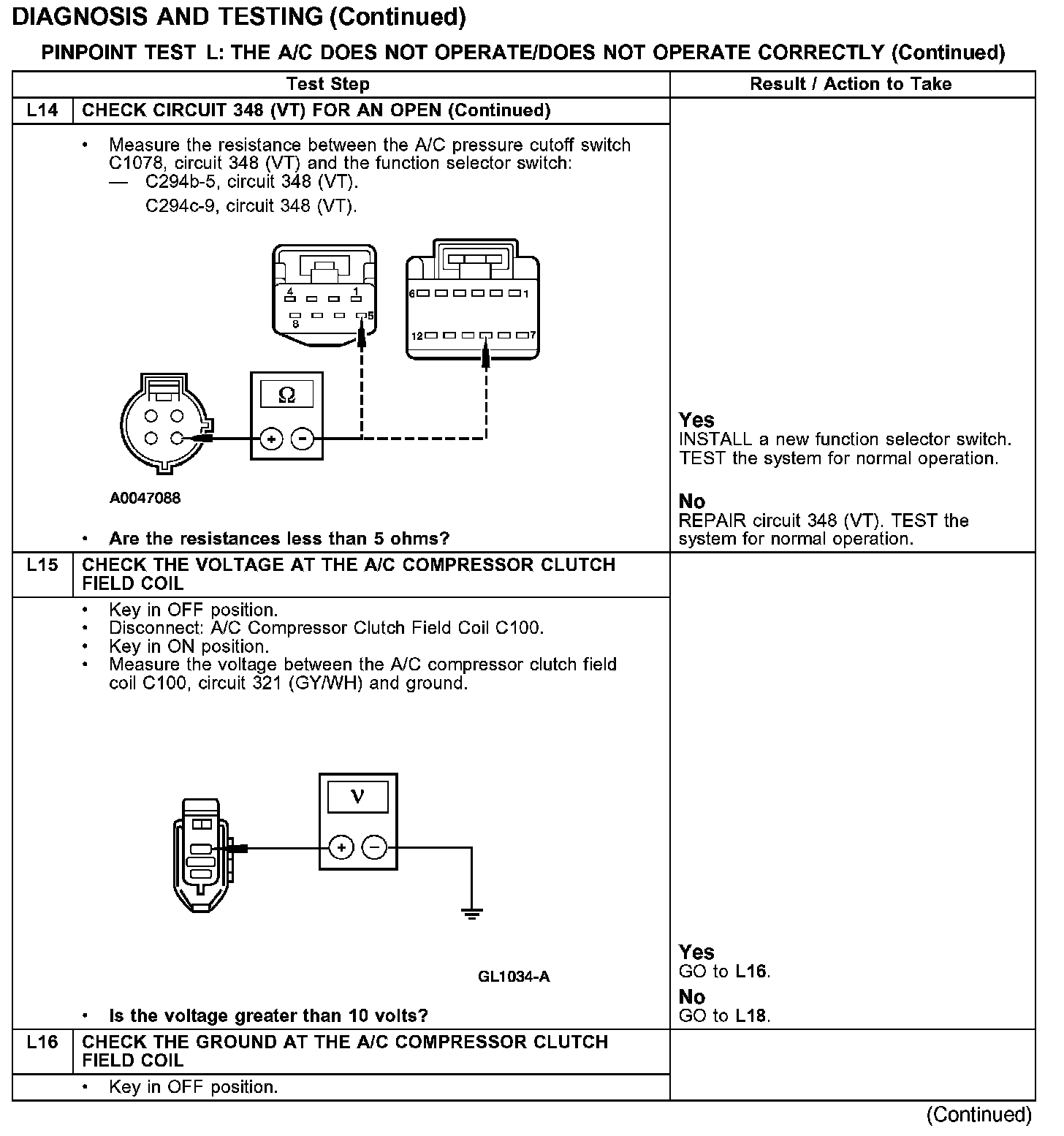

Test L14-L16:

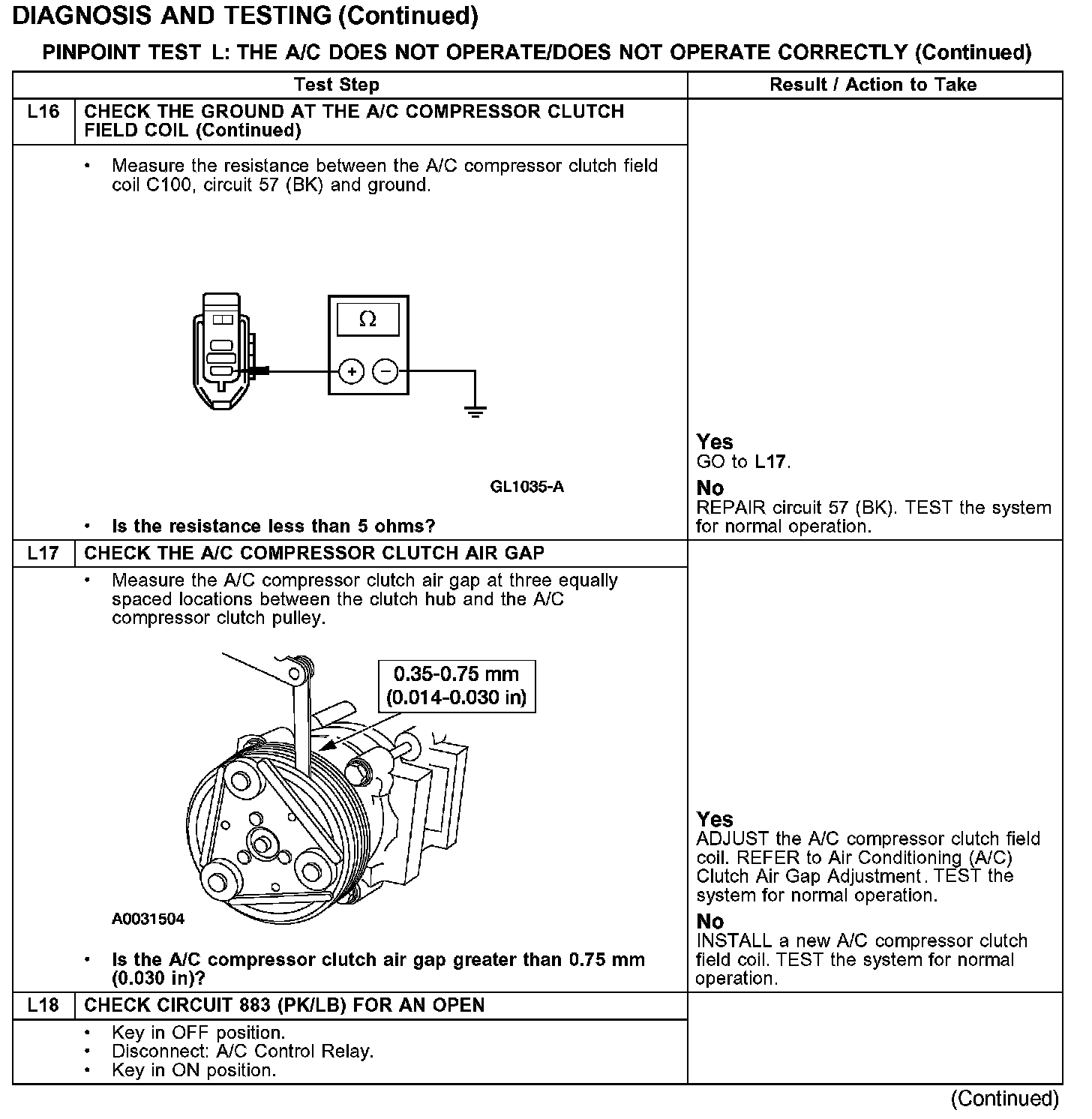

Test L16-L18:

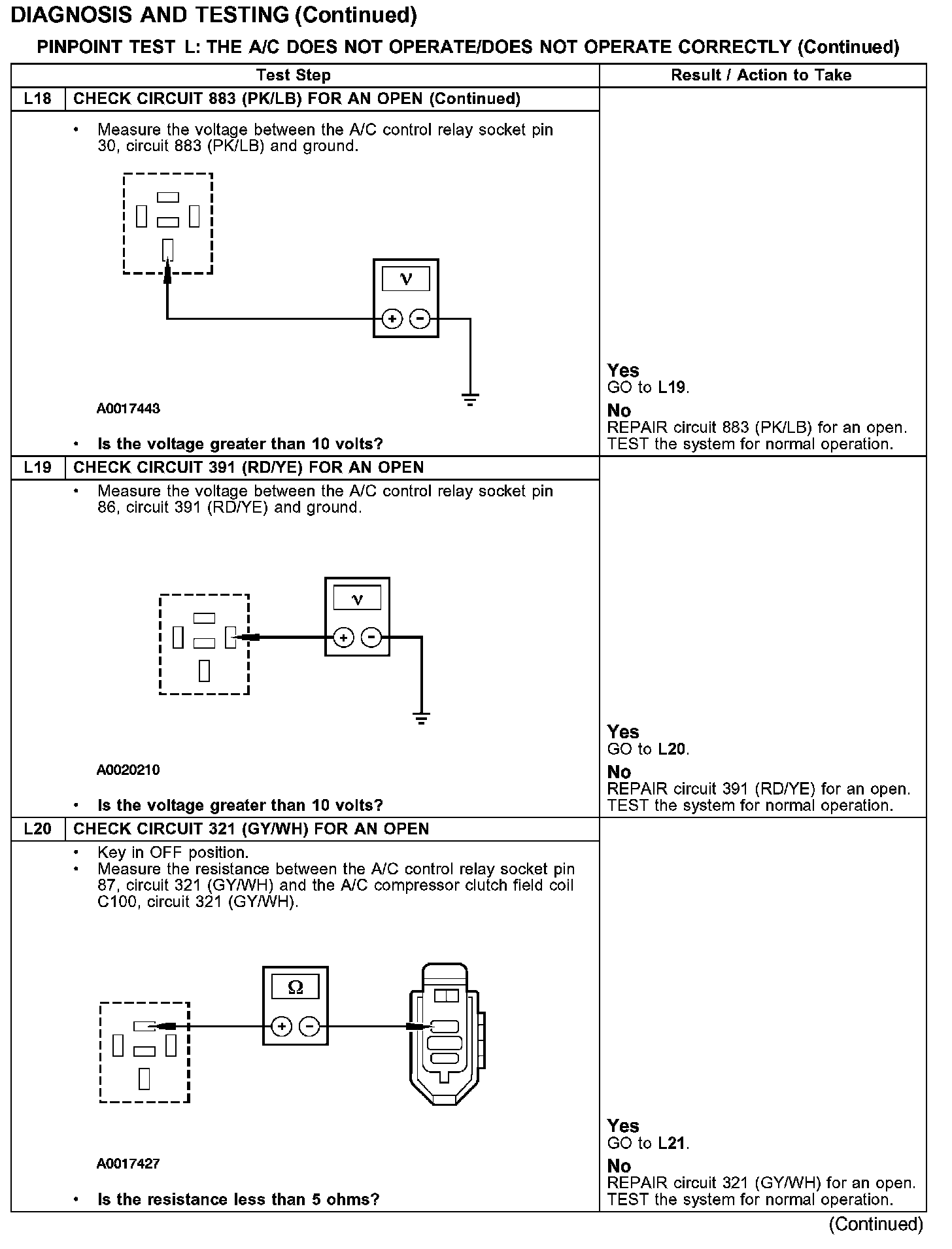

Test L18-L20:

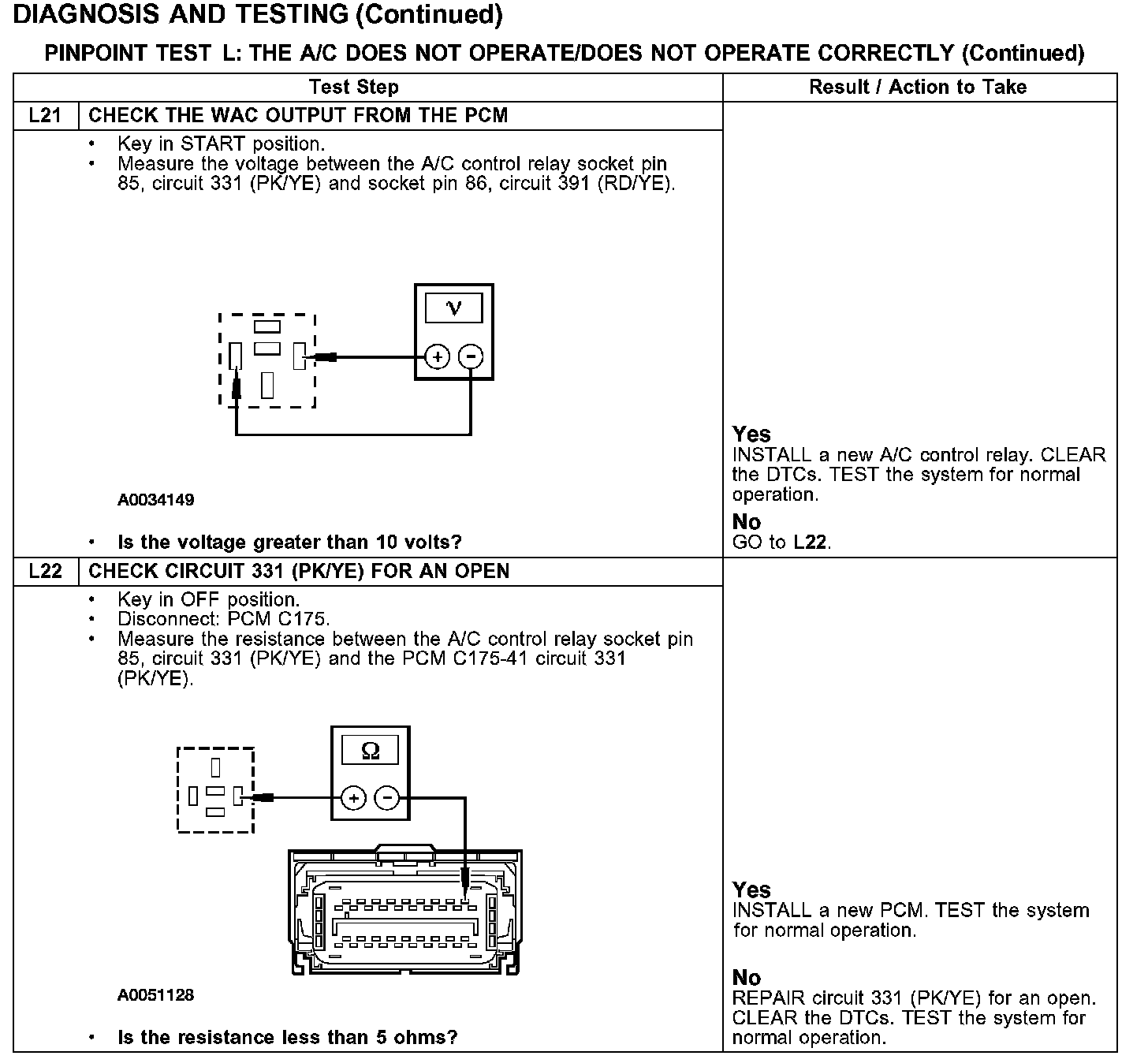

Test L21-L22:
