Test P
Test P
PINPOINT TEST P: THE
BLOWER MOTOR
DOES NOT OPERATE CORRECTLY - MANUAL CLIMATE CONTROL

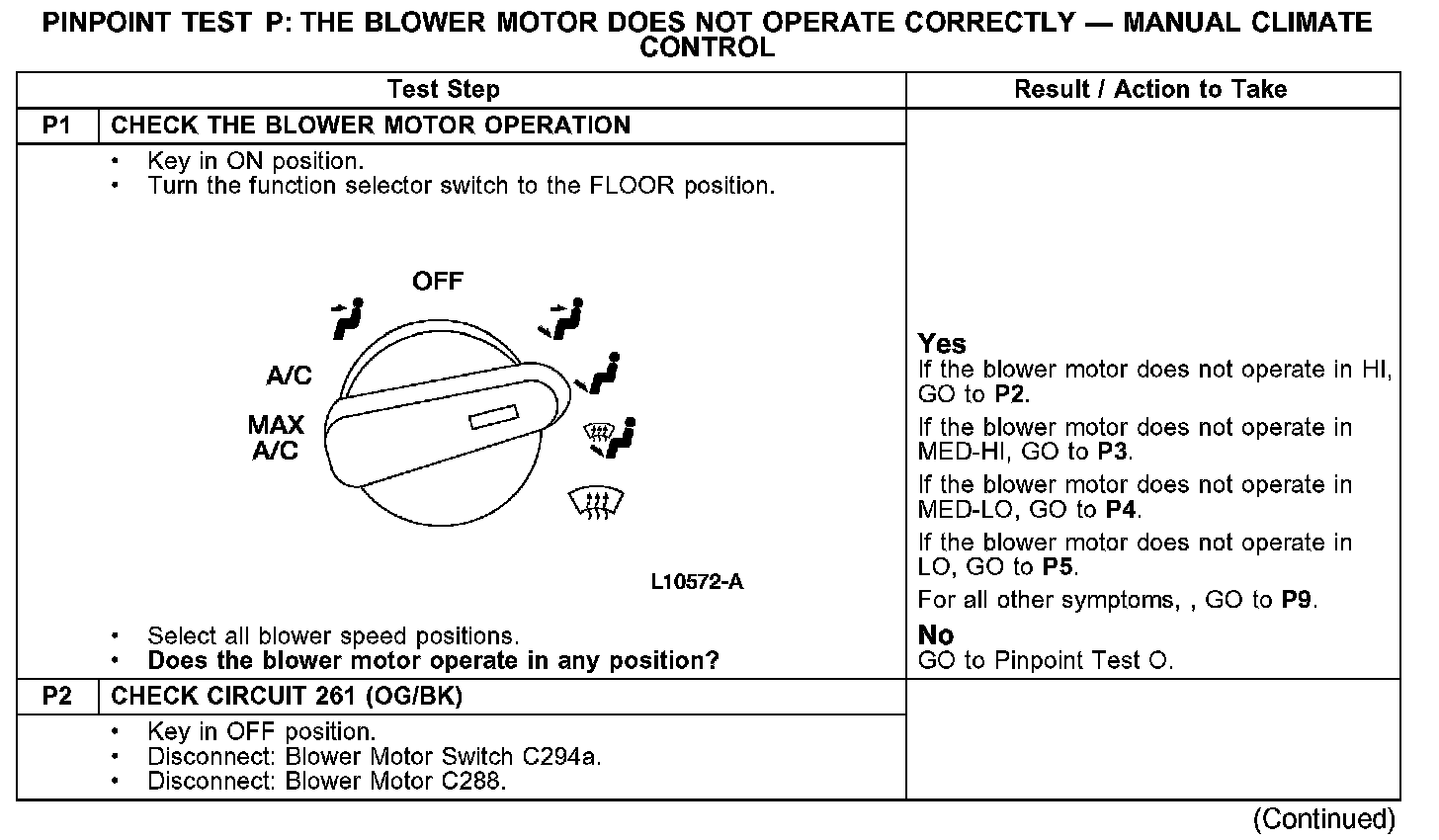

Test P1-P2:

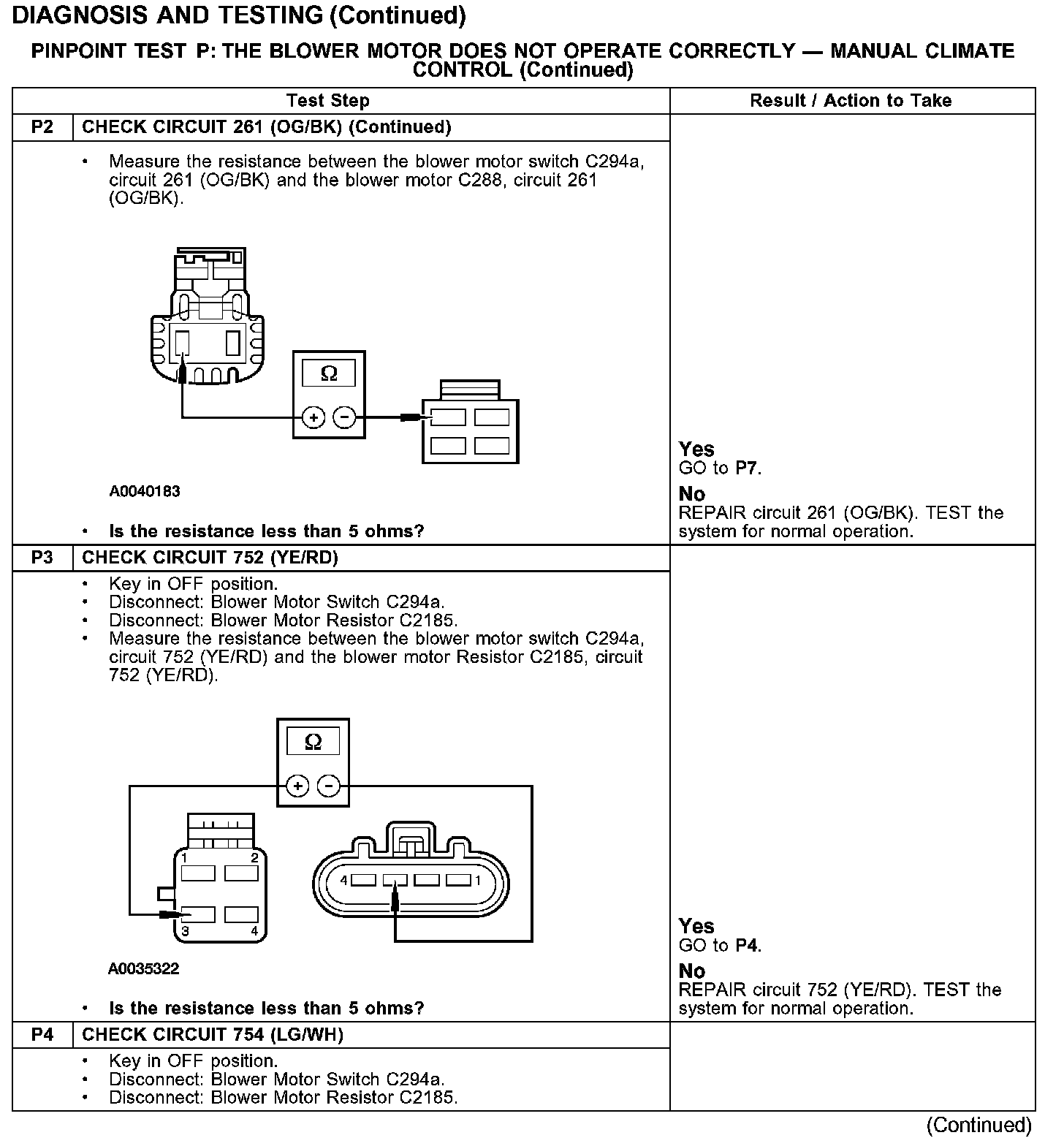

Test P2-P4:

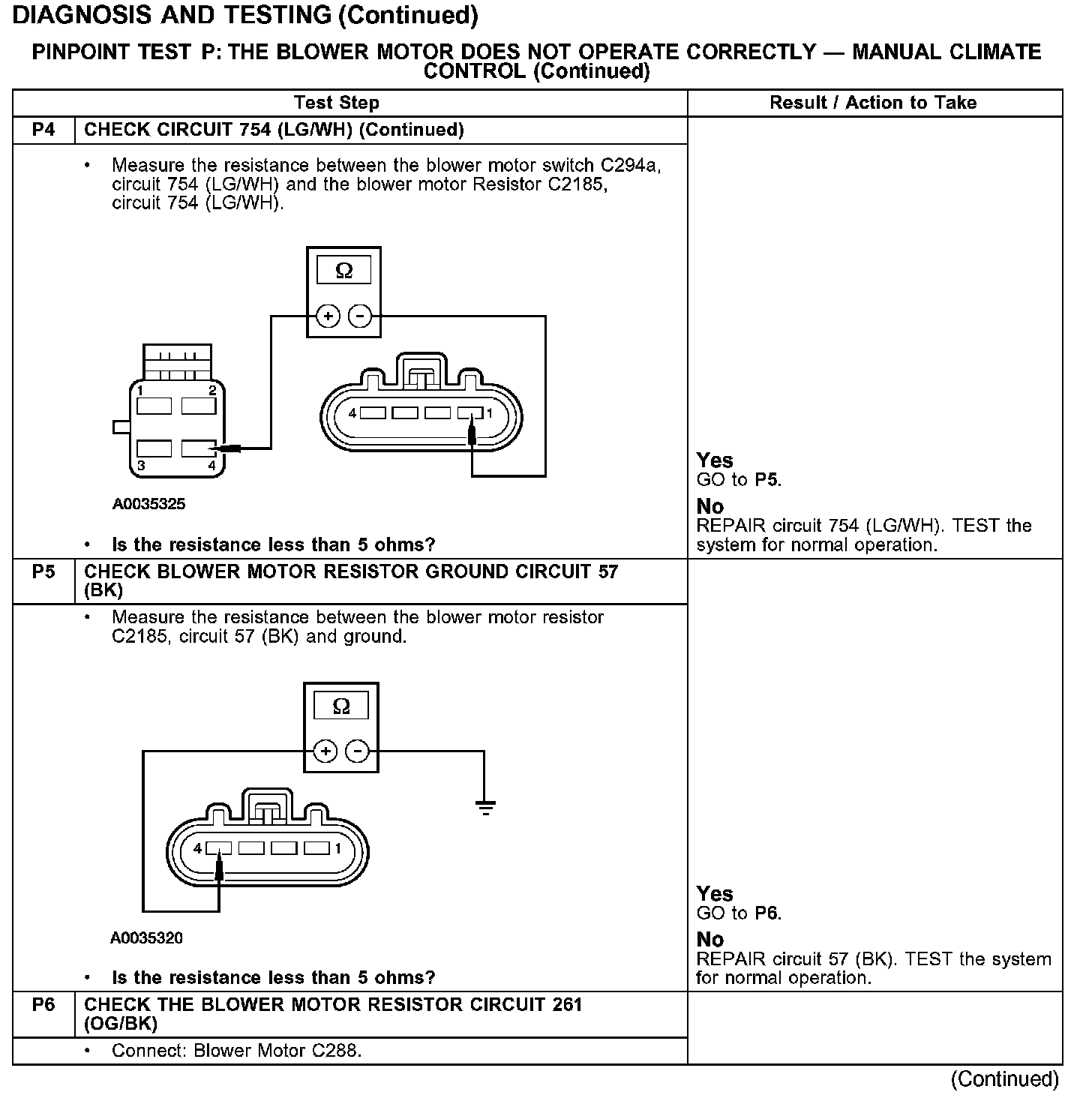

Test P4-P6:

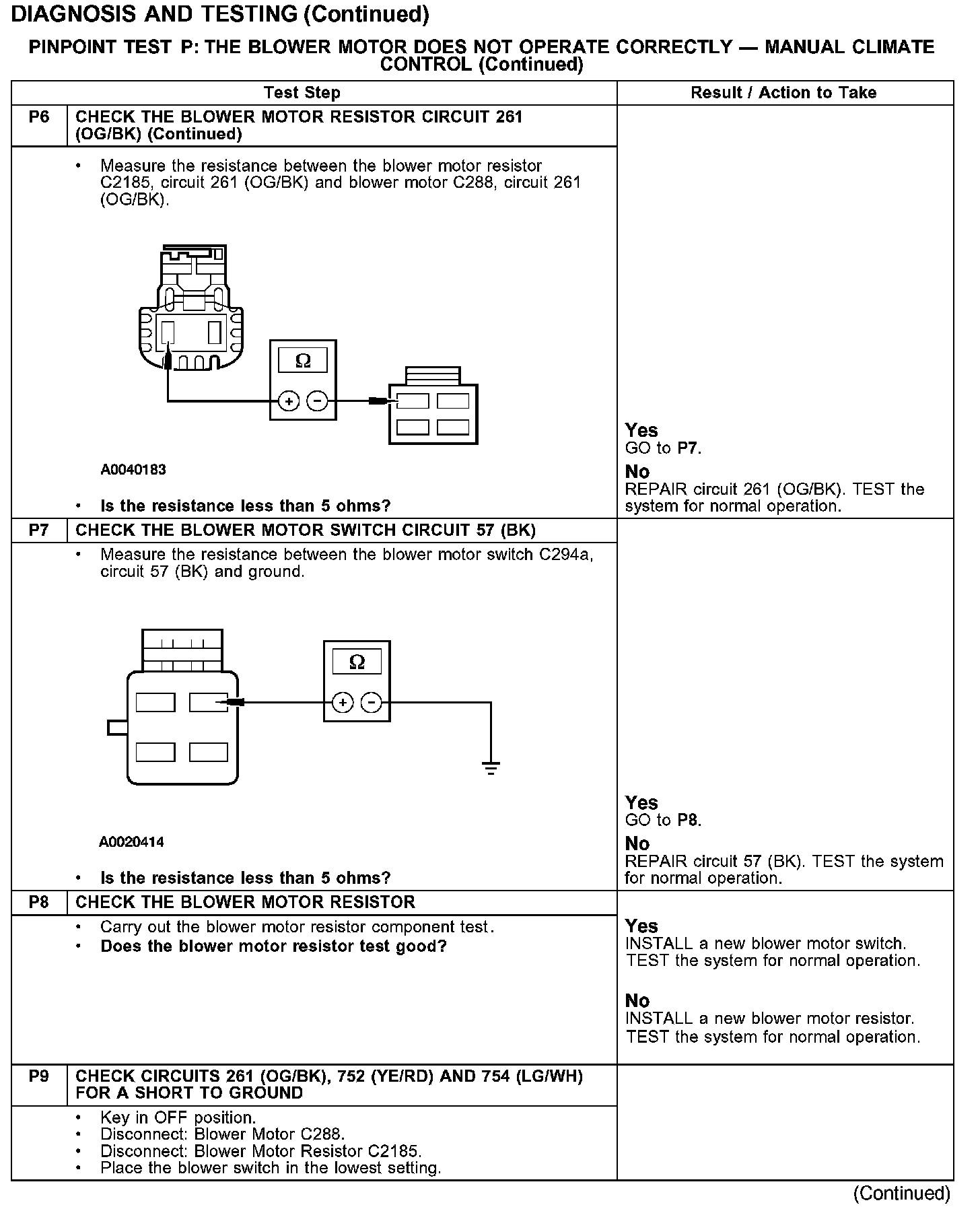

Test P6-P9:

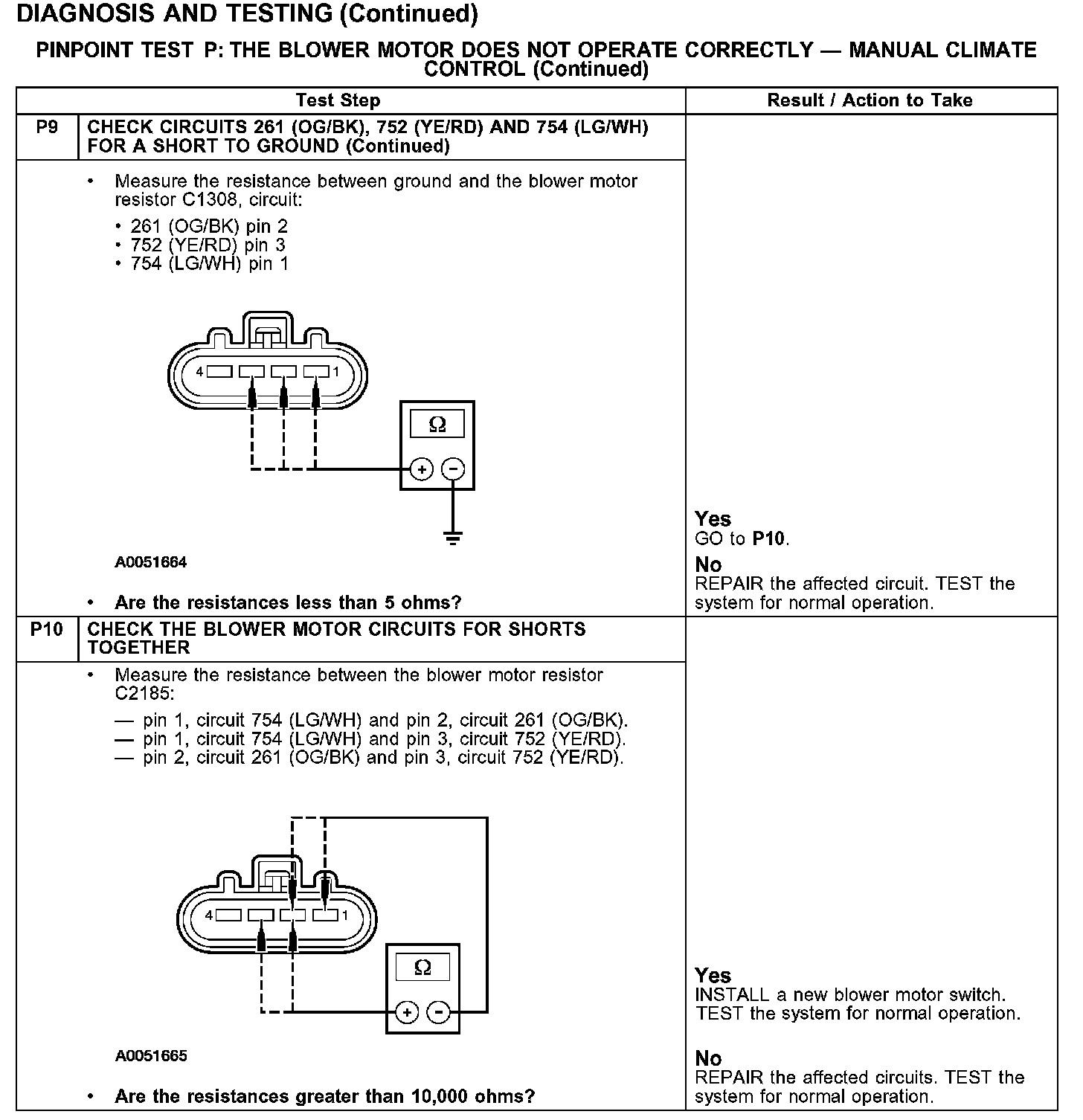

Test P9-P10:
