Test K

PINPOINT TEST K: THE TIRE PRESSURE MONITORING SYSTEM MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

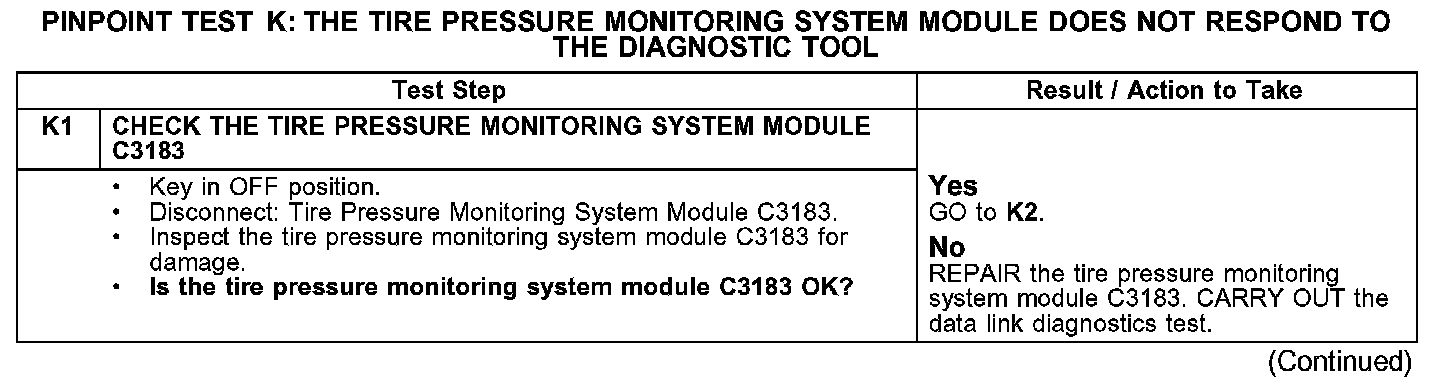

Test K1:

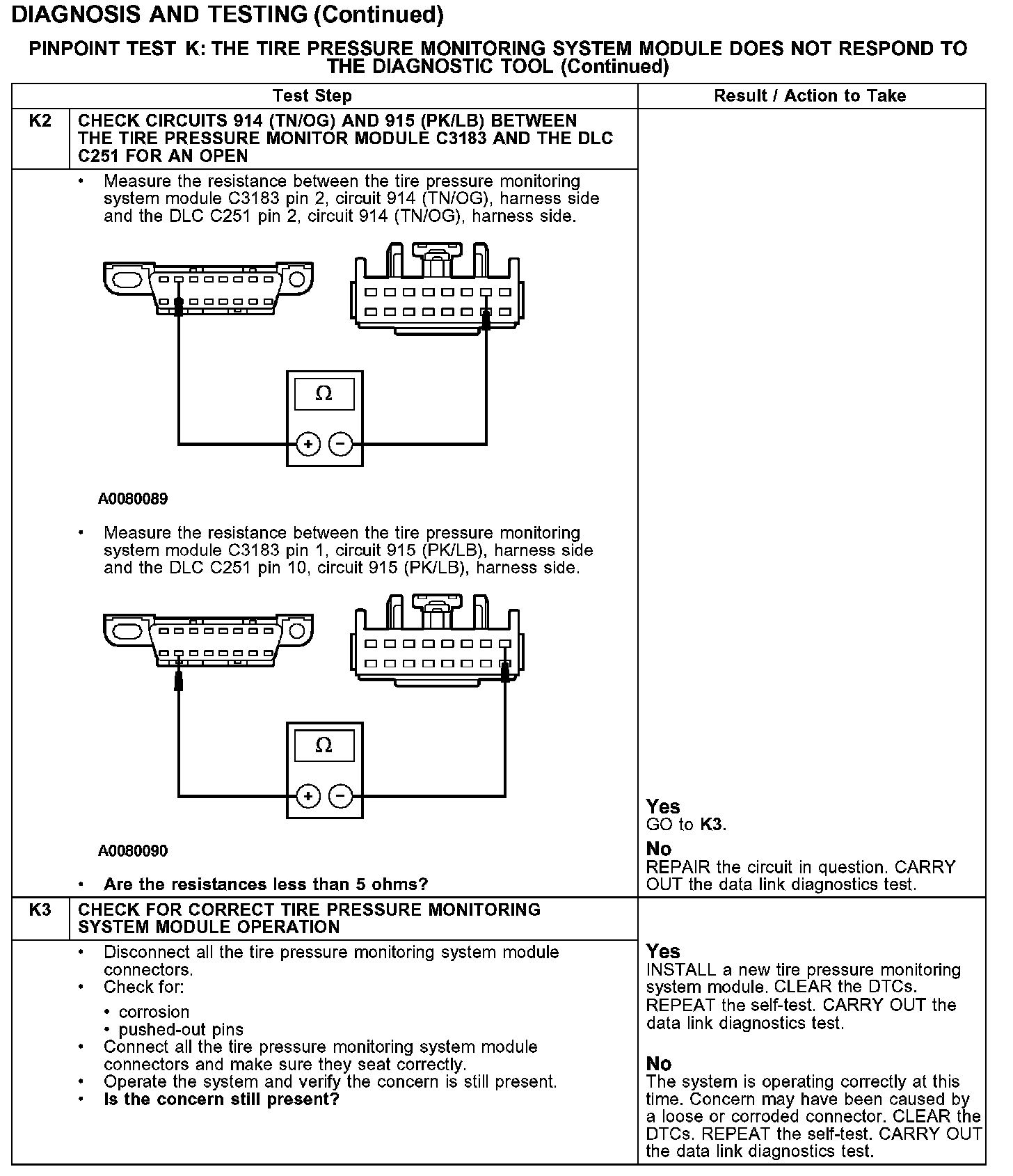

Test K2-K3:
